Decoding Definitive Endoderm: From Gastrulation Mechanisms to Advanced Differentiation Protocols

Abstract

This article provides a comprehensive analysis of definitive endoderm specification, spanning from fundamental developmental mechanisms to cutting-edge applications in regenerative medicine. We first explore the core molecular pathways, including Nodal/TGF-β and Wnt signaling, that orchestrate endoderm formation during gastrulation, incorporating recent discoveries about cellular plasticity and morphogenetic processes. The discussion then progresses to methodological advances, featuring stem cell differentiation protocols, microfluidic automation, and 3D organoid systems that replicate developmental principles in vitro. Critical challenges in protocol optimization, marker validation, and lineage purity are addressed with practical troubleshooting strategies. Finally, we present rigorous validation frameworks and comparative analyses of embryonic versus extra-embryonic endoderm to ensure the generation of high-fidelity endodermal lineages. This integrated perspective equips researchers and drug development professionals with both foundational knowledge and practical tools for advancing endoderm-related biomedical applications.

The Blueprint of Life: Unraveling Molecular and Cellular Mechanisms of Endoderm Specification

Gastrulation represents a pivotal phase in mammalian development, during which a single-layered epithelium is transformed into the three primary germ layers: the ectoderm, mesoderm, and definitive endoderm (DE). The DE gives rise to the epithelial lining of the digestive and respiratory tracts, and organs including the liver, pancreas, and lungs [1] [2]. Understanding the cellular origins and molecular mechanisms driving DE specification is not only fundamental to developmental biology but also critical for advancing regenerative medicine strategies aimed at generating endoderm-derived tissues for disease modeling and cell therapy. This whitepaper synthesizes current research on the spatiotemporal dynamics of DE formation, focusing on lineage segregation, molecular triggers, and experimental models that recapitulate these processes in vitro.

Cellular Origins and Lineage Segregation

Emergence from the Primitive Streak

In amniotes, including mice and humans, DE progenitors originate in the epiblast and ingress through the anterior region of the primitive streak during gastrulation [1] [3]. Upon leaving the primitive streak, these cells integrate into the existing visceral endoderm, contributing to the forming gut tube [1]. Lineage-tracing studies in mouse embryos reveal that DE progenitors are spatially segregated within the epiblast even before primitive streak formation, occupying a domain distal to the anterior primitive streak [3].

The Mesendoderm Progenitor Hypothesis

A population of bipotential mesendoderm progenitors (MEPs) is hypothesized to give rise to both endoderm and mesoderm lineages. In model organisms like zebrafish and Xenopus, the existence of such bipotent cells is well-established [1]. In amniotes, supporting evidence includes:

• Co-expression of markers: Cells in the anterior primitive streak co-express endoderm (Sox17, Foxa2) and mesoderm (Brachyury, Mesp1) markers [1] [4].
• Computational identification: Single-cell RNA sequencing (scRNA-seq) of gastrulating mouse embryos identified a unique transcriptional signature defining putative MEPs in the epiblast, primitive streak, and nascent mesoderm [4].
• In vitro models: Pluripotent stem cells differentiated under specific conditions generate a transient population co-expressing MIXL1, T (Brachyury), and EOMES, reminiscent of MEPs [5] [4] [6].

However, formal proof of bipotency via single-cell lineage tracing in amniotes remains elusive [1], suggesting MEPs may represent a transient, mixed population of lineage-restricted precursors rather than truly bipotent stem cells.

Distinct Morphogenetic Pathways for Endoderm and Mesoderm

Contrary to classical views, recent studies indicate that DE formation occurs independently of a complete epithelial-mesenchymal transition (EMT) and subsequent mesenchymal-epithelial transition (MET) cycle [3].

Table 1: Morphogenetic Differences Between Endoderm and Mesoderm Formation

Feature	Definitive Endoderm	Mesoderm
Morphogenetic Process	Epithelial cell plasticity, partial EMT	Classical EMT
Key EMT Transcription Factors	Snail1 low/absent, Zeb1/2 downregulated	Snail1, Snail2, Zeb1/2, Twist1 upregulated
Cadherin Expression	Maintains E-cadherin, upregulates N-cadherin	Switches from E-cadherin to N-cadherin
Gatekeeper/Suppressor	Foxa2 acts as EMT suppressor	Not applicable

As illustrated in Table 1, while mesoderm progenitors undergo a full EMT, delaminate, and adopt a mesenchymal morphology, DE progenitors maintain epithelial characteristics. The transcription factor Foxa2 acts as an epithelial gatekeeper, shielding ingressing endoderm cells from undergoing a complete mesenchymal transition [3].

Molecular Regulation of Definitive Endoderm Specification

Signaling Pathways Governing Endoderm Formation

The molecular circuitry controlling DE specification is orchestrated by conserved signaling pathways and transcription factors.

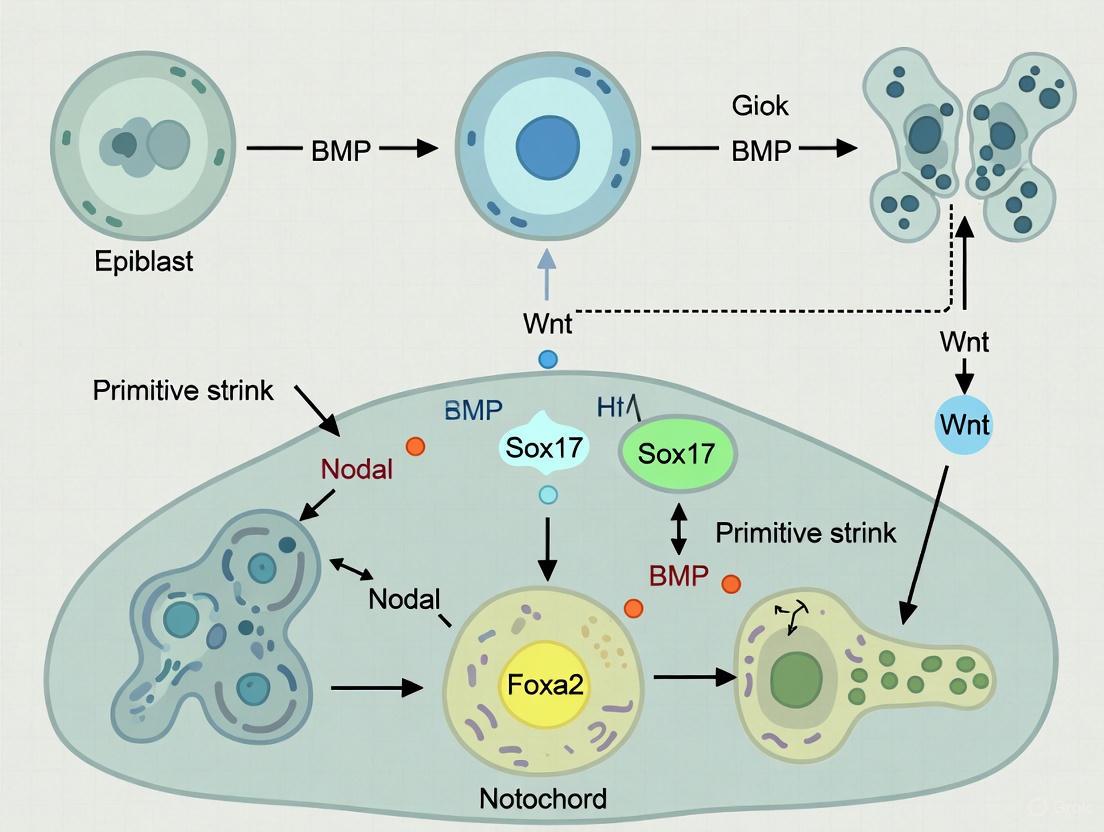

Figure 1: Core Signaling Pathway for Definitive Endoderm Specification. This diagram integrates conserved regulatory interactions across mouse and Nematostella models.

The Central Role of Nodal and TGF-β Signaling

The TGF-β related factor Nodal is a primary inducer of both mesoderm and endoderm, acting in a dose-dependent manner [1] [6]. High levels of Nodal signaling are required for DE specification, evidenced by:

• Loss-of-function studies in mouse embryos showing selective loss of endoderm populations in Nodal hypomorphs [1].
• The Nodal antagonist Lefty2 leads to excess endoderm formation when inactivated [1].
• The intracellular effectors of Nodal/Activin signaling, SMAD2/3, directly interact with transcription factor EOMES to initiate the DE transcriptional network [6].

Wnt/β-catenin Signaling

The canonical Wnt pathway acts synergistically with Nodal to induce DE formation [1] [7]. Wnt signaling:

• Induces Nodal expression at the onset of gastrulation [1].
• Mouse embryos lacking Wnt3 fail to form a primitive streak and express mesendoderm markers [1].
• In the sea anemone Nematostella vectensis, β-catenin signaling represses mesodermal fate and promotes ectodermal identity, illustrating its evolutionary conserved role in germ layer patterning [7].

Notch and MAPK Signaling

Recent work in Nematostella reveals an intricate interaction between MAPK and Notch signaling:

• MAPK signaling activates mesodermal marker genes at the animal pole [7].
• Notch signaling, activated by Delta-expressing mesoderm, induces the formation of a definitive endoderm domain at the mesoderm-ectoderm interface [7].
• This crosstalk is highly reminiscent of germ layer segregation in sea urchins, suggesting a deep evolutionary origin for this mechanism [7].

Key Transcription Factors

A hierarchical network of transcription factors executes the DE specification program.

Table 2: Key Transcription Factors in Definitive Endoderm Specification

Transcription Factor	Role in DE Specification	Expression Pattern	Functional Evidence
EOMES	Master regulator; initiates DE network	Early primitive streak, DE progenitors	Epibast-specific knockout disrupts DE formation [6]
MIXL1	Promotes DE differentiation from MEPs	Primitive streak, early gastrulation	CRISPR knockout reduces DE efficiency; overexpression enhances it [5] [4]
FOXA2	DE specification, EMT suppressor	Nascent DE, mature DE	Shields endoderm from EMT; essential for gut tube formation [3]
SOX17	Bona fide DE marker	Differentiating and mature DE	Central to DE transcriptional identity [1] [3]
NANOG	Pluripotency factor that promotes DE	Epiblast, early primitive streak	Necessary for EOMES induction; knockdown impairs DE specification [6]

As shown in Table 2, the transition from pluripotency to DE involves a handover from pluripotency factors (OCT4, NANOG, SOX2) to DE specification factors (EOMES, MIXL1, FOXA2, SOX17). Notably, NANOG is necessary for the activation of EOMES, bridging pluripotency and DE specification [6].

Experimental Models and Methodologies

In Vitro Differentiation of Pluripotent Stem Cells

Human pluripotent stem cells (hPSCs), including embryonic stem cells (hESCs) and induced pluripotent stem cells (hiPSCs), provide a powerful platform for studying DE differentiation. Two primary methodological approaches have been established:

Growth Factor-Based Protocol

This method utilizes recombinant proteins to mimic developmental signaling [2] [8].

• Key Components:
  • Activin A (100 ng/mL): Activates Nodal signaling pathway
  • Wnt3a (25 ng/mL): Activates canonical Wnt signaling
• Procedure:
  • Culture hPSCs to 60-80% confluence
  • Differentiate in RPMI/B27 medium supplemented with Activin A (100 ng/mL) and Wnt3a (25 ng/mL) for 48 hours
  • Continue culture with Activin A (100 ng/mL) alone for another 24 hours
  • Replace medium with basal RPMI/B27 for final 24 hours
• Efficiency: Typically generates >80% SOX17+/FOXA2+ DE cells [2]

Small Molecule-Based Protocol

This chemically defined approach uses inhibitors to modulate signaling pathways [2] [9].

• Key Component:
  • CHIR99021 (3-6 μM): GSK-3 inhibitor that activates Wnt signaling
• Procedure:
  • Culture hPSCs to 60% confluence
  • Differentiate in RPMI/B27 medium with CHIR99021 (6 μM) for 72 hours with daily media changes
  • Culture in basal RPMI/B27 medium for 24 hours
• Efficiency: Produces DE with similar efficiency to growth factor approach [2]

Figure 2: Experimental Workflow for In Vitro DE Differentiation. Both growth factor and small molecule protocols follow similar stages, first inducing a primitive streak-like population before specifying definitive endoderm.

Three-Dimensional Culture Systems

3D culture models, including spheroids and organoids, more closely recapitulate the in vivo microenvironment [8]. Critical parameters for successful DE differentiation in 3D include:

• Spheroid Size: Inverse correlation between spheroid size and DE differentiation efficiency, with optimal size ranging from 200-500 cells/spheroid [8].
• Biomaterial Properties:
  • Suspension culture provides sufficient mass transfer and shows superior DE differentiation efficiency.
  • Nanofibrillar cellulose hydrogel maintains spheroid morphology but may impede growth factor diffusion.
  • Basement membrane extract (BME) exhibits dominant cell-matrix interactions that can disrupt spheroid integrity during differentiation [8].

The Scientist's Toolkit: Essential Research Reagents

Table 3: Essential Research Reagents for DE Differentiation and Analysis

Reagent/Category	Specific Examples	Function/Application
Inducing Factors	Activin A, Wnt3a, CHIR99021	Activate Nodal and Wnt signaling pathways to drive DE specification
Cell Markers	SOX17, FOXA2, CXCR4, CER1	Identify and purify DE cells via immunostaining or flow cytometry
Culture Matrices	Matrigel, Vitronectin, Synthemax	Provide substrate for hPSC maintenance and differentiation
Base Media	RPMI-1640, DMEM/F12	Serve as basal medium for differentiation protocols
Supplements	B-27, GlutaMAX, Non-essential amino acids	Provide essential nutrients and growth factors
Detection Antibodies	Anti-SOX17 (AF1924), Anti-FOXA2 (Ab108422)	Validate DE differentiation efficiency
BMS-509744	BMS-509744, CAS:439575-02-7, MF:C32H41N5O4S2, MW:623.8 g/mol	Chemical Reagent
BMS-767778	BMS-767778|DPP-4 Inhibitor for Diabetes Research

Discussion and Future Perspectives

The molecular mechanisms governing DE specification during gastrulation involve a complex interplay of signaling pathways and transcription factors that are remarkably conserved across species. Recent advances, particularly the recognition that DE forms through mechanisms of epithelial plasticity rather than a full EMT-MET cycle, have reshaped our understanding of germ layer segregation [3]. Furthermore, the identification of MIXL1 as a critical predictor of DE differentiation efficiency in hiPSCs provides a valuable tool for optimizing differentiation protocols and screening cell lines for differentiation propensity [5].

Challenges remain in achieving perfectly homogeneous DE populations, particularly in 3D culture systems where spheroid size and biomaterial properties significantly impact differentiation outcomes [8]. Future research should focus on refining differentiation protocols to account for the inherent variability among hiPSC lines and developing more robust 3D culture systems that better mimic the biomechanical cues of the developing embryo. A deeper understanding of gastrulation dynamics will continue to accelerate the generation of functional endoderm derivatives for regenerative medicine and disease modeling.

The specification of the definitive endoderm during gastrulation is a cornerstone of mammalian development, giving rise to the entire gut tube and associated organs, including the liver, pancreas, and lungs. This process is orchestrated by a highly conserved and intricate signaling network, with the Nodal, TGF-β, and Wnt pathways acting as master regulators. The precise spatiotemporal interplay between these pathways initiates the formation of the primitive streak, guides the epithelial-to-mesenchymal transition of epiblast cells, and directs their fate toward the endodermal lineage rather than mesoderm. Understanding this interplay is not only fundamental to developmental biology but also critical for advancing regenerative medicine, as the in vitro derivation of pure definitive endoderm populations from human pluripotent stem cells (hPSCs) is a essential first step for generating therapeutic cell types for diseases such as diabetes and liver failure [10] [11]. This whitepaper synthesizes current research to provide an in-depth technical guide on the mechanisms by which these signaling pathways coordinate to induce definitive endoderm, framed within the broader context of gastrulation research.

Molecular Mechanisms of the Core Signaling Pathways

The Nodal/TGF-β/Activin Axis and SMAD2/3 Transduction

The Nodal signaling pathway, a subset of the TGF-β superfamily, is the primary inducer of mesendodermal tissues. The signal transduction cascade begins with ligand binding to a complex of activin type I and type II serine/threonine kinase receptors. This activation is critically dependent on EGF-CFC co-factors (such as Cripto in mice and humans), which are essential for facilitating the ligand-receptor interaction [12].

Upon receptor activation, the intracellular SMAD2/3 proteins are phosphorylated. Phosphorylated SMAD2/3 then forms a complex with the common mediator, SMAD4. This SMAD2/3/4 complex translocates into the nucleus, where it interacts with lineage-specific transcription factors—such as FoxH1, EOMES, and Mixer—to activate the transcription of target genes. These targets include key endoderm specifiers like SOX17, FOXA2, and GATA4/6, as well as Nodal itself, creating a positive feedback loop that is robustly regulated by extracellular antagonists [12] [11].

Key antagonists include:

• Lefty: A feedback inhibitor that acts as a competitive antagonist of Nodal signaling in the extracellular space [12].
• DAN family proteins (e.g., Cerberus): Which bind directly to Nodal and other TGF-β ligands, preventing receptor activation [12].
• Dapper2: An intracellular protein that targets activated receptors for lysosomal degradation, thereby fine-tuning signaling duration and intensity [12].

A critical feature of this pathway is its concentration-dependent effect on cell fate. In human embryonic stem cells (hESCs), low levels of Activin A (around 5 ng/mL) support pluripotency maintenance, in part by promoting the expression of NANOG. In stark contrast, high concentrations (50-100 ng/mL) are a potent inducer of definitive endoderm differentiation [11]. This dual role underscores the context-dependent nature of TGF-β/Activin/Nodal signaling.

The Canonical Wnt/β-Catenin Pathway

The Wnt/β-catenin pathway acts as a crucial co-regulator of endoderm specification. In the absence of a Wnt signal, cytoplasmic β-catenin is constantly degraded by a destruction complex. When Wnt ligands bind to their Frizzled and LRP5/6 receptors, this destruction complex is disrupted, allowing β-catenin to accumulate and translocate to the nucleus. There, it partners with TCF/LEF transcription factors to activate the expression of target genes [13] [14].

During gastrulation, Wnt3 is a key ligand expressed in the posterior epiblast, where it helps establish the primitive streak. Wnt signaling directly regulates the expression of the T-box transcription factor Brachyury (Bry), a marker for primitive streak and nascent mesoderm. Furthermore, Wnt signaling interacts synergistically with the Nodal pathway; Wnt3 helps maintain the autoregulatory loop of Nodal expression, and together, they are both necessary and sufficient for the induction of primitive streak-like populations in embryonic stem cell models [13] [12]. The outcome of Wnt signaling can also be dose-dependent, with different levels potentially driving posterior versus anterior cell fates [14].

Pathway Integration and Crosstalk

The induction of definitive endoderm is not the result of isolated pathway activity but of deep crosstalk and integration between Nodal, TGF-β, and Wnt signaling.

• Synergistic Induction: Seminal in vitro studies demonstrated that simultaneous activation of Wnt and TGF-β/Nodal/Activin signaling is required for the efficient generation of a Brachyury-positive population that resembles the primitive streak and contains endoderm potential. Wnt or low levels of activin induce a posterior primitive streak fate, while high levels of activin promote an anterior streak fate, which gives rise to definitive endoderm [13].
• Transcriptional Integration: The integration occurs at the transcriptional level. SMAD2/3 and β-catenin/TCF complexes can co-occupy and co-regulate enhancers of key developmental genes. For instance, the transcription factor OTX2 is critical for activating endoderm-specific enhancers and repressing enhancers of other lineages. OTX2 depletion leads to altered expression of Wnt pathway components and targets, disrupting endoderm specification [15].
• Context-Dependent Outcomes: The final cellular outcome is determined by the combination of signals. A 2024 study illustrated that TGF-β modulates foregut endoderm fate by simultaneously inhibiting both Wnt and BMP signaling, creating a signaling environment conducive to anterior endoderm (e.g., pancreatic) specification rather than posterior or non-endodermal fates [16].

Table 1: Core Components of the Endoderm-Inducing Signaling Pathways

Pathway	Key Ligands	Receptors & Co-factors	Intracellular Transducers	Key Nuclear Effectors/Targets
Nodal/TGF-β	Nodal, Activin A, TGF-β	ALK4, ALK5, ALK7 (Type I); ActRIIA/B (Type II); Cripto (co-factor)	SMAD2/3, SMAD4	FoxH1, EOMES, SOX17, FOXA2, GSC, NANOG
Wnt/β-catenin	Wnt3, Wnt3a	Frizzled, LRP5/6	β-catenin, Dishevelled	TCF/LEF, Brachyury (T), CDX2
Integrated Crosstalk	-	-	-	OTX2, GATA6, BMP (antagonized)

Experimental Models and Key Methodologies

The principles of endoderm induction have been elucidated using a combination of in vivo animal models and sophisticated in vitro stem cell differentiation systems.

In Vivo Mouse Models

Mouse genetics remains a powerful tool for understanding gastrulation. Single-cell multi-omics technologies, such as single-cell ChIP-seq for histone marks (H3K27ac, H3K4me1) and RNA-seq, have revealed that epigenetic priming for germ layer specification occurs as early as the pre-primitive streak stage (E6.0). These studies show asynchronous commitment of germ layers, with enhancer activation (marked by H3K27ac) often preceding gene expression [17]. Furthermore, timed depletion of transcription factors like OTX2 in gastruloids (in vitro embryo models) has established its essential role in activating endoderm-specific enhancers and suppressing other lineage enhancers [15].

In Vitro Embryonic Stem Cell (ESC) Differentiation

ESCs provide a controllable platform for dissecting signaling requirements. A foundational protocol involves using a mouse ESC line with dual reporters for Brachyury (GFP) and Foxa2 (CD4). Differentiation of these cells yields a GFP+Bra+ population with varying CD4-Foxa2 levels. The CD4-Foxa2(hi) subset exhibits anterior primitive streak characteristics and endoderm potential, while the CD4-Foxa2(lo) subset resembles the posterior streak [13] [14].

The key methodological steps are:

• Platform Setup: Establish and maintain the dual-reporter mESC line.
• Directed Differentiation: Dissociate ESCs and form aggregates in suspension culture in differentiation medium.
• Signaling Modulation: Treat cells with specific signaling molecules during a critical time window (typically days 2-4 of differentiation).
  • For endoderm induction: Use high-dose Activin A (100 ng/mL) with Wnt3a.
  • For control/alternative fates: Use low-dose Activin A or add pathway inhibitors.
• Analysis: Analyze cells via Fluorescence-Activated Cell Sorting (FACS) based on GFP and CD4 expression. Followed by qPCR, immunocytochemistry, or RNA-seq to assess gene expression of markers like Sox17, Foxa2 (endoderm) and T (mesoderm) [13].

A more recent, complex finding using single-cell transcriptomics in human models shows that definitive endoderm can be formed via multiple developmental routes: a direct route from pluripotency and an indirect route that passes through a mesoderm progenitor state. The choice between these routes is dictated by the relative concentrations of Activin and BMP4, highlighting the combinatorial logic of signaling histories [18].

Table 2: Key Signaling Molecules and Their Roles in Experimental Endoderm Induction

Molecule	Typical Working Concentration	Function in Experiment	Mechanism of Action
Activin A	5 ng/mL (pluripotency); 100 ng/mL (differentiation)	Key inductive signal for definitive endoderm	Activates TGF-β/Activin receptors, leading to SMAD2/3 phosphorylation and activation of endodermal genes.
Wnt3a	10-50 ng/mL	Priming signal for primitive streak formation	Stabilizes β-catenin, which complexes with TCF to activate Brachyury and other streak markers.
BMP4	Varies (e.g., 10-50 ng/mL)	Can direct route of endoderm specification; often inhibited for foregut	Induces mesoderm genes; interacts with Activin to choose between direct/indirect endoderm routes.
SB431542	10 µM	Specific inhibitor of TGF-β/Activin/Nodal signaling	Inhibits ALK4, ALK5, ALK7 receptors, blocking SMAD2/3 phosphorylation.
Dorsomorphin	1-5 µM	Inhibitor of BMP signaling	Blocks BMP type I receptors (ALK2, ALK3, ALK6), preventing SMAD1/5/8 phosphorylation.

The Scientist's Toolkit: Essential Research Reagents

Table 3: Key Research Reagent Solutions for Endoderm Induction Studies

Reagent Category	Specific Example	Brief Function & Application
Recombinant Ligands	Activin A, Wnt3a, BMP4	Key signaling molecules used in differentiation media to directly activate the respective pathways and direct cell fate.
Small Molecule Inhibitors	SB431542 (TGF-β RI inhibitor), Dorsomorphin (BMP inhibitor), IWP-2 (Wnt inhibitor)	Used to dissect pathway necessity and to block alternative differentiation paths (e.g., inhibiting BMP for anterior endoderm).
Reporter Cell Lines	Foxa2::CD4 / Brachyury::GFP dual-reporter mESCs [13]	Enable real-time tracking and FACS isolation of specific progenitor populations during differentiation.
Antibodies for Analysis	Anti-SOX17, Anti-FOXA2, Anti-Brachyury (T), Anti-OCT4, Phospho-SMAD2/3	Critical for immunostaining and flow cytometry to validate protein expression and signaling activity in differentiated cells.
qPCR Assays	TaqMan or SYBR Green assays for Sox17, Foxa2, T, Cdx2, Nanog, Gapdh	Quantitative measurement of lineage-specific gene expression changes throughout the differentiation time course.
H-Ile-Trp-OH	H-Ile-Trp-OH, CAS:13589-06-5, MF:C17H23N3O3, MW:317.4 g/mol	Chemical Reagent
BO-1165	BO-1165, CAS:89426-64-2, MF:C13H14FN5O8S2, MW:451.4 g/mol	Chemical Reagent

Signaling Pathway Visualization

The following diagram illustrates the core interplay between the Nodal, Wnt, and TGF-β pathways during definitive endoderm specification, integrating key components and their functional relationships.

Diagram Title: Signaling Network for Definitive Endoderm Induction

The experimental workflow for delineating these pathways, using a representative ESC differentiation model, is outlined below.

Diagram Title: Experimental Workflow for Pathway Analysis

The induction of definitive endoderm is a paradigm of robust developmental regulation, masterfully coordinated by the intertwined activities of Nodal, TGF-β, and Wnt signaling. The field has progressed from establishing the necessity of these pathways to elucidating the sophisticated mechanisms of their integration, including dose-dependence, transcriptional collaboration, and epigenetic remodeling. The advent of single-cell multi-omics and complex in vitro models like gastruloids is revealing an unprecedented level of detail, showing multiple developmental trajectories and the critical role of enhancer landscapes in lineage commitment [18] [15] [17].

Future research will likely focus on deconstructing the non-linear and quantitative dynamics of this signaling network in space and time. Understanding how these pathways interact with other families, such as FGF and Retinoic Acid, for subsequent patterning of the gut tube into organ-specific domains is the next logical step. Furthermore, translating this knowledge into optimized, high-yield, and clinically compliant protocols for generating functional endodermal cells from human iPSCs remains a central challenge and goal. Success will not only validate our basic scientific understanding but also unlock the full potential of regenerative medicine for treating a wide range of degenerative diseases.

Traditional models of mammalian gastrulation posit that definitive endoderm (DE) formation occurs through a complete epithelial-to-mesenchymal transition (EMT) followed by a mesenchymal-to-epithelial transition (MET). This whitepaper synthesizes recent groundbreaking research that challenges this dogma. Evidence now establishes that DE specification is independent of the key EMT transcription factor Snail1 and instead is driven by mechanisms of epithelial cell plasticity, with the forkhead box transcription factor A2 (Foxa2) acting as a master regulator and epithelial gatekeeper [3] [19]. This paradigm shift, which demonstrates that endoderm formation occurs without a full EMT–MET cycle, has profound implications for understanding fundamental developmental biology, stem cell differentiation protocols, and the mechanisms of cancer metastasis where EMT is a critical event.

Gastrulation is a foundational period in embryonic development where the three primary germ layers—ectoderm, mesoderm, and endoderm—are formed. For decades, the prevailing model for endoderm formation in mammals was extrapolated from studies in flies and fish, involving a full EMT as cells ingress through the primitive streak, followed by an MET to establish the epithelial endoderm layer [3] [19]. However, this model has remained unproven in mammals. The discovery of a pre-specified Foxa2+ progenitor population in the posterior epiblast, even before primitive streak formation, suggested an alternative pathway [20]. This guide details the experimental evidence that has resolved this morphogenetic puzzle, positioning Foxa2 as the central orchestrator of endoderm formation through a mechanism that bypasses classical EMT.

Core Discovery: Endoderm Formation Bypasses the EMT–MET Cycle

Key research utilizing Foxa2–Venus fusion (FVF) and Sox17–mCherry fusion (SCF) double knock-in reporter mouse embryonic stem cells (mESCs) and mouse embryos has delineated the distinct morphogenetic programs segregating the mesoderm and endoderm germ layers [3] [19].

The Revised Morphogenetic Sequence

The process begins with fate-specified FVF^low epiblast progenitors located distal to the anterior primitive streak (APS). These progenitors upregulate Foxa2, becoming FVF^high transitory progenitors, which then leave the epithelium. Crucially, these cells do not adopt a mesenchymal phenotype. Instead, they squeeze as elongated cells between the epiblast and visceral endoderm layers, a process taking approximately 12 hours—a timeframe considered insufficient for a complete EMT–MET cycle. Finally, these progenitors upregulate Sox17 and intercalate into the outer visceral endoderm to form the definitive FVF^high/SCF+ endoderm lineage [3] [19].

In stark contrast, T+ (Brachyury) mesoderm progenitors in the proximal primitive streak undergo a classical EMT. They lose apical-basal polarity, downregulate E-cadherin, upregulate N-cadherin and vimentin, and become mesenchymal, migrating freely through the primitive streak region [3] [20].

Molecular Evidence: The EMT Transcription Factor Program

Single-cell RNA sequencing (scRNA-seq) combined with FVF lineage labelling provided a high-resolution roadmap of the molecular changes during this process. The data reveals a fundamental divergence in the genetic programs driving mesoderm and endoderm specification [3] [19].

Table 1: Gene Expression Dynamics During Germ Layer Segregation

Gene/Pathway	Expression in Endoderm Trajectory	Expression in Mesoderm Trajectory
EMT-TFs (Snail1/2, Zeb1/2, Twist1)	Downregulated or weakly expressed [3] [19]	Highly upregulated [3] [19]
E-cadherin (Cdh1)	Maintained [3] [19]	Downregulated [3] [19]
N-cadherin (Cdh2)	Upregulated [3] [19]	Upregulated [3] [19]
Master Regulator	Foxa2 (specifies endoderm, suppresses EMT) [3] [20]	Brachyury (T) (specifies mesoderm, promotes EMT) [21]
Cell Adhesion	Co-expression of E- and N-cadherin (Partial EMT signature) [3]	E- to N-cadherin switch (Classic EMT hallmark) [3]

Immunostaining analyses confirm these transcriptomic findings. While mesodermal cells show a clear switch from E-cadherin to N-cadherin, FVF^high transitory progenitors, axial mesendoderm (AME), and definitive endoderm cells maintain E-cadherin expression while synchronously upregulating N-cadherin [3] [19]. The key EMT transcription factor Snail1 is highly expressed in T+ mesoderm but is only weakly expressed at the mRNA level in Foxa2^high transitory progenitors and is absent in mature Foxa2^high/Sox17+ definitive endoderm [3].

Diagram 1: Lineage bifurcation during mesoderm and endoderm specification.

Foxa2 as the Epithelial Gatekeeper and EMT Suppressor

The forkhead box transcription factor A2 (Foxa2) is the master regulator that shields the endoderm lineage from undergoing a mesenchymal transition. Its role extends beyond simply specifying lineage identity; it actively enforces an epithelial cell fate.

Mechanistic Role of Foxa2

Foxa2 promotes an epithelial phenotype by regulating cell polarity and epithelialization. In Foxa2 mutant embryos, endodermal cells fail to maintain apical-basal polarity and cannot establish proper cellular junctions, preventing their functional integration into the endoderm epithelium [20]. This identifies Foxa2 as essential for a molecular program that induces an epithelial cellular phenotype. This gatekeeper function is conserved in cancer biology, where FOXA2 acts as a tumor suppressor in endometrial cancer by regulating enhancer activity and suppressing EMT and metastasis [22].

Experimental Models and Methodologies

The revised model of endoderm formation is supported by a combination of sophisticated in vivo and in vitro experimental systems.

Key Experimental Protocols

Protocol 1: Time-Resolved Lineage Tracing in Mouse Embryos

• Objective: To visualize and track the morphogenesis of endoderm progenitors in real-time.
• Model System: Foxa2–Venus fusion (FVF) and Sox17–mCherry fusion (SCF) double knock-in reporter mouse embryos [3] [19].
• Methodology:
  • Embryo Collection: Collect embryos at early-, mid-, and late-streak stages (E6.5–E7.5).
  • Live Imaging: Use time-lapse confocal microscopy to track the behavior of FVF^low and FVF^high cells.
  • Immunohistochemistry: Fix embryos and stain for key markers (E-cadherin, N-cadherin, Snail1, T) to correlate cell location with molecular phenotype.
  • Image Analysis: Reconstruct cell ingression and migration paths to quantify morphological changes and spatial segregation.

Protocol 2: High-Resolution Single-Cell RNA Sequencing of Lineage-Labelled Cells

• Objective: To map the transcriptional landscape and trajectory of endoderm progenitors.
• Model System: FVF reporter mouse embryos or mESCs [3] [19].
• Methodology:
  • Cell Sorting: Dissociate embryonic cells or differentiated mESCs and use Fluorescence-Activated Cell Sorting (FACS) to isolate pure populations based on FVF intensity (FVF^low, FVF^high).
  • scRNA-seq Library Prep: Prepare single-cell libraries using a high-throughput platform (e.g., 10x Genomics).
  • Bioinformatic Analysis:
    • Cluster Annotation: Use Louvain clustering to identify distinct cell populations.
    • Trajectory Inference: Apply RNA velocity (scVelo) and CellRank algorithms to compute fate probabilities and directionality.
    • Differential Expression: Identify lineage driver genes and analyze expression dynamics of EMT-related genes.

Protocol 3: In Vitro Reconstitution using Dual-Reporter mESCs

• Objective: To simultaneously study mesoderm and endoderm segregation in a controlled environment.
• Model System: T^GFP/+; Foxa2^tagRFP/+ dual-reporter knock-in mESC line [3].
• Differentiation Protocol:
  • Mesoderm/Endoderm Induction: Differentiate mESCs in a stepwise, time-resolved manner using specific morphogen gradients (e.g., high Wnt/β-catenin, TGF-β, and FGF signaling).
  • Progenitor Isolation: At days 2 and 4 of differentiation, use FACS to sort progenitors and definitive lineages based on reporter expression (T^GFP and Foxa2^tagRFP) and surface markers (CD24^neg/low/high).
  • Validation: Perform global transcriptional profiling (e.g., RNA-seq) on sorted populations to validate the in vivo findings regarding EMT transcription factor expression and cadherin dynamics.

Diagram 2: In vitro experimental workflow for analyzing germ layer segregation.

The Scientist's Toolkit: Essential Research Reagents

Table 2: Key Research Reagents for Investigating Endoderm Specification

Reagent / Tool	Type	Primary Function in Research
Foxa2–Venus Fusion (FVF) Reporter	Knock-in Mouse/ESC Line	Enables live tracking and FACS isolation of Foxa2+ endoderm progenitors and their precursors [3] [19].
Sox17–mCherry Fusion (SCF) Reporter	Knock-in Mouse/ESC Line	Labels mature definitive endoderm cells, allowing for the study of the final stages of endoderm specification [3] [19].
TGFP/+; Foxa2tagRFP/+ Reporter	Dual-Knock-in ESC Line	Allows simultaneous visualization, isolation, and comparative analysis of mesoderm and endoderm lineages from the same culture [3].
Anti-E-cadherin / N-cadherin Antibodies	Immunostaining Reagents	Used to validate the epithelial or mesenchymal state of cells via immunohistochemistry and western blot [3] [19].
scVelo & CellRank	Bioinformatic Algorithms	Computes RNA velocity and robust fate probabilities from scRNA-seq data to reconstruct lineage trajectories [3].
Boc-LRR-AMC	Boc-LRR-AMC, MF:C33H52N10O7, MW:700.8 g/mol	Chemical Reagent
Boc-YPGFL(O-tBu)	Boc-YPGFL(O-tBu), CAS:179124-36-8, MF:C44H64N6O11, MW:853.0 g/mol	Chemical Reagent

Discussion and Broader Implications

The elucidation of Foxa2-driven epithelial plasticity as the mechanism for endoderm formation represents a significant paradigm shift in developmental biology.

Resolving the Morphogenetic Puzzle

This model coherently explains observations that were puzzling under the classic EMT–MET framework, such as the pre-specification of progenitors and the remarkably short timeframe for endoderm formation. It establishes a clear mechanistic divergence between mesoderm and endoderm specification at the most fundamental level—the control of epithelial phenotype.

Relevance to Stem Cell Biology and Disease

• Stem Cell Differentiation: This knowledge is critical for optimizing in vitro differentiation protocols to generate pure, functional DE cells from pluripotent stem cells for disease modeling and regenerative medicine. Protocols can now be designed to promote the Foxa2+ epithelial plasticity route while suppressing the EMT pathway.
• Cancer Metastasis: EMT is a key process in cancer metastasis. The discovery that Foxa2 can act as a potent EMT suppressor and "epithelial gatekeeper" [3] [22] opens new avenues for research into preventing metastasis in carcinomas by targeting or reactivating Foxa2-related pathways.
• Congenital Disorders: A deeper understanding of the precise mechanisms governing germ layer formation can illuminate the origins of certain congenital birth defects that arise from errors in gastrulation.

The definitive endoderm is formed not through a classical EMT–MET cycle, but via a Foxa2-dependent pathway of epithelial cell plasticity. Foxa2 serves as an essential epithelial gatekeeper, suppressing the EMT program and orchestrating the morphogenetic events required for endoderm specification and integration. This refined understanding provides a new conceptual framework for studying development, stem cell biology, and diseases rooted in cell fate decisions and transitions.

The concept of mesendodermal progenitors—bipotential cells capable of giving rise to both mesodermal and endodermal lineages—represents a fundamental paradigm in understanding early embryonic patterning and germ layer specification. This whitepaper synthesizes evidence from key model organisms, including zebrafish, mice, and amphibians, to establish the existence and regulatory mechanisms of these progenitors. We detail the core signaling pathways and transcription factors, such as Nodal, FGF, Wnt/β-catenin, and Eomesodermin, that govern mesendoderm specification. Furthermore, this guide provides a curated toolkit of research reagents and detailed experimental protocols to facilitate the investigation of mesendoderm in developmental and regenerative contexts.

In classical embryology, the three germ layers—ectoderm, mesoderm, and endoderm—were considered to be specified during gastrulation from distinct precursor populations. However, a growing body of evidence challenges this linear view, supporting the existence of a bipotential mesendoderm progenitor as a common precursor for both mesoderm and definitive endoderm [1] [23]. This paradigm shift reframes our understanding of lineage segregation during gastrulation. The study of mesendoderm is not only crucial for deciphering the basic principles of body plan establishment but also for informing directed differentiation protocols in stem cell research and regenerative medicine, where generating pure endodermal populations (e.g., for pancreatic or hepatic lineages) remains a significant challenge [1] [24]. This whitepaper, framed within a broader thesis on definitive endoderm specification, consolidates cross-species evidence and the molecular machinery underlying mesendoderm development, providing a technical resource for researchers and drug development professionals.

Evidence for Bipotential Mesendoderm Across Model Organisms

Evidence for mesendodermal progenitors comes from fate-mapping, transcriptional co-expression, and in vitro differentiation studies across diverse species.

Table 1: Evidence for Mesendoderm Progenitors in Model Organisms

Model Organism	Key Experimental Evidence	Supporting References
Zebrafish	Early blastomeres are bipotential; mesoderm and endoderm derive from common progenitors. [1]	Rodaway and Patient, 1
Xenopus (Frog)	Gene regulatory network (GRN) analyses and perturbation studies support a bipotent state. [25]	Loose and Patient, 4; Charney et al., 7
Mouse	Single-cell lineage tracing shows descendants in both mesoderm and endoderm; in vitro ES cell studies show Activin-induced mesendoderm precursors. [23]	Kinder et al., 1; Tam and Beddington, 2
Chick	Grafting experiments suggest mesendoderm potential; co-expression of markers in the anterior primitive streak. [1]	Kimura et al., 6; Rodaway et al., 9

In vertebrates, the spatial organization of precursors is conserved. In mice and chicks, endoderm precursors are located in the anterior region of the primitive streak, which also contains mesoderm precursors [1] [23]. Single-cell lineage tracing in mice has demonstrated that a labeled epiblast cell at the anterior end of the primitive streak can give rise to descendants in both the mesodermal and endodermal lineages, providing direct evidence for bipotency at the cellular level [23]. In zebrafish, the existence of bipotential progenitors is well-established [1]. Supporting this, studies in mouse embryonic stem cells (mESCs) show that stimulation with the TGF-β ligand Activin promotes the emergence of a precursor that can generate both mesoderm and endoderm, with some single cells producing colonies containing both lineages [23].

Core Signaling Pathways and Molecular Regulation

Mesendoderm specification is directed by a highly conserved network of signaling pathways and transcription factors. The following diagram illustrates the core regulatory network.

Diagram 1: Core mesendoderm gene regulatory network. High Nodal and Eomes promote endoderm, while lower levels favor mesoderm.

Key Signaling Pathways

The induction of mesendoderm is coordinated by a few conserved signaling pathways.

Table 2: Key Signaling Pathways in Mesendoderm Specification

Signaling Pathway	Primary Role in Mesendoderm Specification	Experimental Evidence
Nodal (TGF-β)	Acts as a morphogen; high levels specify endoderm, lower levels specify mesoderm. [1]	Mouse Nodal mutants lack streak; zebrafish Nodal loss causes anterior mesoderm loss. [1]
Canonical Wnt/β-catenin	Critical for primitive streak formation; induces expression of Nodal and Brachyury. [1] [26]	Mouse Wnt3 knockout prevents streak formation. [1]
FGF	Cooperates with Nodal to induce posterior mesoderm; maintains brachyury expression. [27] [23]	Inhibition in frog/zebrafish causes posterior mesoderm loss. [27]
BMP	Patterns mesoderm and promotes ventral/lateral fates; interacts with Wnt and Nodal pathways. [27]	Ectopic BMP4 ventralizes mesoderm in Xenopus. [27]

The Nodal pathway is a primary inducer. In zebrafish, Nodal establishes a morphogen gradient, with peak levels specifying endoderm in blastomeres closest to the signal source and lower levels specifying mesoderm in cells farther away [1]. The canonical Wnt/β-catenin pathway is a key upstream activator. In mice, Wnt3 is required for the formation of the primitive streak and the expression of mesendoderm markers [1]. Recent research has also highlighted the role of oxygen-sensing mechanisms, where the oxygen sensor PHD2 negatively regulates mesendoderm specification by modulating HIF-1α stability and the downstream Wnt/β-catenin pathway [26].

Critical Transcription Factors

The signaling pathways activate a core set of transcription factors that execute the mesendoderm program. These include:

• Brachyury (T): A T-box transcription factor induced by Wnt, FGF, and Nodal signaling. It is a key regulator of mesoderm formation and migration [27].
• Eomesodermin (Eomes): A T-box factor directly activated by the core pluripotency factors OCT4, SOX2, and NANOG. It marks the onset of endoderm specification and, in turn, interacts with SMAD2/3 to initiate the transcriptional network for endoderm formation [24].
• Mix-like Homeobox Proteins (e.g., Mixl1): These are direct targets of Nodal signaling and are crucial for coordinating the mesendoderm gene regulatory network [25].
• Sox17: A high-mobility group (HMG) box transcription factor that is a primary regulator of definitive endoderm fate [1].

Detailed Experimental Protocols for Key Findings

This section outlines the methodologies used to generate foundational data in the field.

Protocol: Single-Cell Lineage Tracing in Mouse Embryos

Objective: To trace the developmental potential of single epiblast cells in vivo and demonstrate bipotency for mesoderm and endoderm lineages [23].

• Labeling: Micromanipulate and microinject a single cell within the epiblast of an E6.0-E7.0 mouse embryo with a heritable tracer, such as lysinated fluorescein dextran (FLD) or a genetic marker like GFP.
• Culture: Transfer the injected embryo into an explant culture system that supports normal development for 24-48 hours.
• Analysis: Fix the embryo at the late primitive streak stage (E7.5-E8.0). Section the embryo and perform immunohistochemistry to detect the tracer. Analyze the contribution of the labeled progeny to germ layer-specific markers (e.g., Sox17 for endoderm, Brachyury (T) for mesoderm).

Protocol: Mesendoderm Differentiation from Mouse ES Cells

Objective: To specify mesendoderm from pluripotent stem cells in vitro and test the role of specific factors [24] [26].

• Cell Culture: Maintain mouse ES cells (e.g., AB2.2 line) in standard self-renewal conditions with LIF.
• Differentiation: To induce differentiation, dissociate cells and plate them in media without LIF. Supplement the media with Activin A (a Nodal mimic) at 10-100 ng/mL to promote mesendoderm specification. Culture for 2-4 days.
• Perturbation: To test gene function, transfert cells with siRNA (e.g., against Eomes [24] or Phd2 [26]) prior to differentiation or use CRISPR-Cas9 to generate knockout lines.
• Validation: Harvest cells at day 2-4 of differentiation. Analyze the efficiency of mesendoderm specification using flow cytometry for surface markers or quantitative RT-PCR for key genes (e.g., Brachyury, Eomes, Mixl1, Sox17).

Protocol: Linked SOM Multi-Omic GRN Analysis

Objective: To build a high-resolution, mechanistic gene regulatory network from genomic datasets in Xenopus tropicalis [25].

• Data Collection: Assemble a highly dimensional dataset including:
  • 95 RNA-seq experiments (temporal, spatial, and perturbation time courses).
  • 63 ChIP-seq/ATAC-seq experiments (for TF binding, chromatin accessibility, epigenetic marks).
• Data Normalization: Quantify gene expression in Transcripts Per Million (TPM). For chromatin data, partition the genome based on peak calls and calculate Reads Per Kilobase per Million (RPKM) signal for each partition.
• Linked Self-Organizing Maps (SOM):
  • Train one SOM on the RNA-seq matrix to cluster genes with co-varying expression profiles.
  • Train a second SOM on the ChIP/ATAC-seq matrix to cluster genomic regions with similar regulatory signals.
  • Link the two SOMs by associating genomic regions with the closest gene, creating "Linked Metaclusters" (LMs) of co-regulated gene-genomic region pairs.
• Motif Analysis & Validation: Perform motif analysis on the genomic regions within each LM to identify enriched transcription factor binding sites. Test predicted TF-DNA interactions using luciferase reporter assays in vivo or in vitro.

The linked SOM workflow is visualized below.

Diagram 2: Linked SOM workflow for mechanistic GRN construction.

The Scientist's Toolkit: Essential Research Reagents

The following table catalogues key reagents used in the featured experiments for studying mesendoderm.

Table 3: Research Reagent Solutions for Mesendoderm Studies

Reagent / Material	Function / Application	Example Use Case
Activin A	TGF-β ligand; induces mesendoderm differentiation in ES cell cultures. [23]	Differentiate human or mouse ES cells into definitive endoderm. [24]
CHIR99021	GSK-3 inhibitor; activates canonical Wnt/β-catenin signaling.	Used in combination with Activin A to enhance mesendoderm yield from pluripotent cells.
siRNA / shRNA	Gene knockdown; loss-of-function analysis.	Knockdown of Eomes or Phd2 to test role in mesendoderm specification. [24] [26]
Anti-Brachyury (T) Antibody	Immunostaining, FACS; identifies nascent and committed mesoderm.	Identify mesoderm fated NMPs and derived mesoderm in mouse embryos. [27]
Anti-Sox17 Antibody	Immunostaining, FACS; marks definitive endoderm cells.	Detect endoderm formation in differentiating ES cultures or embryo sections. [1]
Anti-GFP Antibody	Detection of labeled cells; used in lineage tracing and FACS.	Isolate PHD2-EGFP high/low populations for lineage tendency assays. [26]
PHD2-EGFP mESC Line	Reporter cell line; enables isolation of cells based on PHD2 expression.	Study the role of pseudohypoxia in mesendoderm specification via FACS. [26]
BPH-651	3-(Biphenyl-4-yl)-3-hydroxyquinuclidine|BPQ-OH
BPIPP	BPIPP, CAS:325746-94-9, MF:C22H16BrN3O3, MW:450.3 g/mol	Chemical Reagent

The cumulative evidence from multiple model organisms solidifies the mesendoderm progenitor as a genuine and essential transitional state during germ layer segregation. The regulatory logic, centered on the interplay of Nodal, Wnt, and FGF signaling, is remarkably conserved. The advent of sophisticated single-cell genomic techniques and multi-omic integration, as demonstrated by the linked SOM approach, promises to reveal the full complexity of the mesendoderm GRN, including previously unsuspected interactions. Future research should focus on translating this knowledge into robust, high-yield protocols for generating specific human endodermal cell types (e.g., hepatocytes, beta-cells) from iPSCs, which holds immense potential for drug screening and cell-based therapies. Furthermore, exploring the role of metabolic and environmental cues, such as oxygen tension mediated by PHD2, provides an exciting frontier for understanding the extrinsic control of this critical developmental decision.

The establishment of the anterior-posterior (A-P) axis is a foundational event in vertebrate embryogenesis, marking the transition from a radially symmetric structure to a highly patterned embryo with distinct cranial and caudal orientations. This process is intrinsically linked to gastrulation, whereby the three primary germ layers—ectoderm, mesoderm, and definitive endoderm (DE)—are specified. The definitive endoderm, the progenitor of the respiratory and gastrointestinal tracts, becomes patterned along the A-P axis, giving rise to foregut structures such as the thyroid, lungs, and liver anteriorly, and midgut/hindgut structures like the intestines posteriorly [28]. This whitepaper synthesizes current research to delineate the molecular signatures and mechanisms that guide A-P endoderm specification, providing a technical guide for researchers and drug development professionals aiming to recapitulate these events in vitro for disease modeling and regenerative therapies.

The process is orchestrated by a complex interplay of transcription factors and signaling pathways, which operate within dynamic cellular environments such as the organizer region and the primitive streak. Understanding these molecular events is crucial for directing the differentiation of pluripotent stem cells into specific endodermal organ lineages, a primary goal in the field of regenerative medicine.

Cellular Architecture and Emergence of Axial Identity

The Organizer as a Source of Patterning Signals

In avian embryos, the cellular composition and inductive properties of Hensen's node (the avian organizer) are critical for axial patterning. Recent single-cell transcriptomics studies have revealed that the node is not a homogeneous structure but is composed of two transcriptionally and functionally distinct organizer populations [29]:

• Anterior Population: Characterized by high expression of the transcription factor GOOSECOID (GSC), along with CER1, ADMP, and OTX2. This population is associated with the induction of cephalic structures.
• Posterior Population: Identified by expression of LMO1, CXCL14, POMC, and RND3, and co-expresses mesodermal genes such as MSGN1 and MESP1. This population exhibits trunk-inducing activity.

These two populations are spatially segregated; GSC-positive cells occupy the ventral portion of the node, while the LMO1-positive cells are found in a more dorsolateral position, with some intermingling at the boundaries [29]. The inductive properties of the node are dynamic. During early gastrulation, the node is dominated by the anterior, GSC-expressing population. As development proceeds, the posterior population becomes more prevalent, ensuring the sequential formation of anterior head structures followed by more posterior trunk structures [29].

Morphogenetic Movements in Mammalian Axis Formation

In mice, symmetry breaking and A-P axis establishment depend on the directed migration of the distal visceral endoderm (DVE). A groundbreaking study has revealed that this migration is guided by mechanical cues from the extracellular matrix (ECM) [30]. Before DVE specification, asymmetric perforations in the basement membrane—a specialized ECM layer between the visceral endoderm and the epiblast—appear on the future anterior side. These perforations are created by matrix metalloproteinases (MMPs) expressed in extra-embryonic tissues. The DVE cells then migrate collectively and unidirectionally toward these regions of degraded basement membrane [30].

The critical nature of this process is demonstrated by perturbation experiments. Global depletion of the basement membrane with collagenase leads to faster, non-cohesive DVE migration and subsequent mispositioning of the primitive streak. Conversely, inhibition of MMPs with Batimastat results in fewer perforations, causing DVE migration to slow, halt prematurely, and redirect laterally [30]. This demonstrates that the basement membrane is not merely a static scaffold but an active instructor of A-P patterning, with its mechanical heterogeneity guiding fundamental cell migrations.

Molecular Signatures of Anterior-Posterior Endoderm

The molecular identity of patterned endoderm is defined by a core set of transcription factors and signaling pathway components, summarized in Table 1.

Table 1: Molecular Signatures of Anterior-Posterior Endoderm Patterning

Region	Key Transcription Factors	Signaling Pathway Components	Functional Role in Patterning
Anterior Endoderm	GSC [29], OTX2 [29] [15], FOXA2 [3], SOX17 [31], HHEX [28], NKX2.1 [28]	Secretes Nodal/Wnt antagonists (e.g., CER1) [29] [30]; BMP antagonists [30]	Specifies foregut fate (thyroid, lungs, liver, pancreas); represses posterior identity; acts as a gatekeeper suppressing EMT [3].
Posterior Endoderm	CDX2 [28], MESP1 [29], LMO1 [29]	High WNT, FGF, and BMP signaling [28]; Responds to Retinoic Acid (RA) [31]	Specifies midgut/hindgut fate (intestines); promotes posterior identity; associated with mesodermal gene programs.
Pan-Endoderm / Early Progenitors	SOX17 [1] [31], FOXA2 [3], EOMES [24]	Nodal signaling [1] [32]; TGFβ/Activin A signaling [32] [31]; Wnt/β-catenin [1]	Master regulators of definitive endoderm specification; marks the onset of endoderm formation from pluripotency.

The Role of Key Transcription Factors

• OTX2 in Anterior Specification: The transcription factor OTX2 has been established as a critical regulator for the specification and patterning of anterior definitive endoderm. OTX2 functions by remodeling enhancers, activating a subset of endoderm-specific enhancers while suppressing enhancers associated with other lineages. This activity is required for the timely exit of cells from the primitive streak and the correct specification of anterior endoderm. OTX2 depletion results in abnormal DE specification, characterized by altered WNT signaling and perturbed adhesion and migration programs, ultimately impairing foregut formation [15].
• FOXA2 as an Epithelial Gatekeeper: The forkhead box transcription factor FOXA2 acts as a master regulator and EMT suppressor. During germ layer segregation, while the mesoderm is formed by a classical Snail1-dependent EMT, the definitive endoderm is formed through a mechanism of epithelial cell plasticity that is independent of a full EMT-MET cycle. FOXA2 functions as a gatekeeper, shielding the endoderm from undergoing a mesenchymal transition and allowing ingressing cells to maintain epithelial characteristics such as E-cadherin expression [3].

Signaling Pathways and Mechanisms of Patterning

The molecular signatures described above are established and maintained by a network of conserved signaling pathways. The following diagram illustrates the core signaling interactions that pattern the endoderm along the A-P axis.

A-P patterning of the definitive endoderm occurs through reciprocal signaling with the surrounding mesenchyme [28]. At the gut tube stage, signaling factors including WNTs, FGFs, and BMPs largely act to promote posterior fates and repress anterior fate. The anterior endoderm is established in a region shielded from these posteriorizing signals, facilitated by the secretion of antagonists from the anterior visceral endoderm (AVE), such as Cerberus-like 1 (CER1), which inhibit Nodal, WNT, and BMP pathways [30]. The transcription factor OTX2 is instrumental in reinforcing this anterior state by activating foregut-specific enhancers [15]. In the posterior region, high levels of WNT, FGF, and BMP signaling activate and maintain the expression of posterior transcription factors like CDX2, which drives hindgut identity [28].

Experimental Models and Methodologies

Key Experimental Protocols

The insights into endoderm patterning are derived from sophisticated experimental approaches in model systems and stem cells.

• Single-Cell RNA Sequencing of Hensen's Node: To characterize the node's cellular composition, the anterior primitive streak of gastrula-stage chick embryos (HH4) was microdissected. The resulting cells were processed for scRNA-seq, yielding a dataset of over 8,000 high-quality cells. Unsupervised clustering and UMAP projection identified distinct cell populations. The identity of these clusters was validated by mapping the expression of specific markers using high-resolution hybridization chain reaction fluorescence in situ hybridization (HCR-FISH) on whole-mount embryos and transverse sections. Image segmentation software (CellProfiler) was then used to computationally isolate individual cells and quantify marker co-expression, revealing the dorsoventral organization of anterior and posterior node populations [29].
• Basement Membrane Perturbation and Live Imaging: The role of the basement membrane in DVE migration was investigated using live imaging of Cerl-GFP reporter mouse embryos (E5.5), which label the DVE. A pulse of collagenase was used to globally deplete the basement membrane, while Batimastat was used to inhibit MMP activity and reduce perforations. Embryos were cultured in vitro and GFP+ DVE cells were tracked using time-lapse confocal microscopy to assess migration speed, cohesion, and directionality. For local perturbation, a plasmid expressing a membrane-tethered MMP (hMT1-MMP) was electroporated into one side of the embryo to create an ectopic gradient of basement membrane degradation, and DVE migration bias was quantified after 24 hours [30].
• Purification of Definitive Endoderm from Model Systems: The isolation of pure DE populations has been achieved using fluorescence-activated cell sorting (FACS) from transgenic mice harboring a Sox17-eGFP knock-in allele. At E7.5-E8.25, embryos were dissected, dissociated with trypsin, and stained with a panel of antibodies. DE was purified based on Sox17-eGFP expression combined with cell surface markers such as CXCR4 and CD24, allowing its distinction from visceral endoderm [31]. This protocol provides a gold standard for obtaining native DE for downstream transcriptomic analysis.

The Scientist's Toolkit: Essential Research Reagents

Table 2: Key Research Reagents for Endoderm Patterning Studies

Reagent	Function/Application	Example Use Case
Sox17-eGFP Reporter [31]	Fluorescent reporter for isolating and tracking definitive and visceral endoderm cells.	FACS purification of native DE from mouse embryos for transcriptomic profiling.
Cerl-GFP Reporter [30]	Labels the distal visceral endoderm (DVE) in mouse embryos.	Live imaging of DVE migration during anterior-posterior axis formation.
Recombinant Wnt3a & Activin A [32] [31]	Key growth factors used to differentiate pluripotent stem cells into mesendoderm and definitive endoderm.	In vitro differentiation of human ES cells into an endoderm-like lineage.
Batimastat (BB-94) [30]	Broad-spectrum inhibitor of matrix metalloproteinases (MMPs).	To study the role of basement membrane remodeling in DVE migration and AP patterning.
Anti-CXCR4 Antibody [32] [31]	Cell surface marker for identifying and isolating definitive endoderm precursors.	FACS purification of endoderm progenitor cells from a heterogeneous differentiation culture.
HCR-FISH Kits [29]	High-sensitivity fluorescence in situ hybridization for multiplexed RNA detection.	Spatial mapping of anterior (GSC) and posterior (LMO1) node populations in whole embryos.
BIT-225	BIT-225, CAS:917909-71-8, MF:C16H15N5O, MW:293.32 g/mol	Chemical Reagent
BK-218	BK-218, CAS:110008-56-5, MF:C15H13ClN7NaO5S2, MW:493.9 g/mol	Chemical Reagent

The molecular signature of A-P endoderm specification is the product of a meticulously coordinated program involving dynamic cellular compositions within organizer regions, biomechanical cues from the extracellular matrix, and a core network of transcription factors responsive to opposing signaling gradients. The continued refinement of protocols to isolate and characterize these populations, combined with the ability to manipulate signaling pathways in vitro, is rapidly advancing our ability to direct stem cell differentiation.

Future research will likely focus on further elucidating the epigenetic landscape, including the enhancer remodeling events driven by factors like OTX2, and integrating multi-omics data to build predictive models of cell fate decisions. A deeper understanding of the mechanical forces and cell-basement membrane interactions, recently highlighted as a critical patterning mechanism, will also be essential. For the field of regenerative medicine, mastering the replication of these in vivo patterning events in vitro is the key to generating the pure, region-specific endodermal progenitors required for functional cell therapies and sophisticated disease models.

The specification of definitive endoderm (DE) represents a pivotal event in animal development, giving rise to the gastrointestinal tract, respiratory system, and associated organs. While the core transcriptional machinery governing endoderm formation exhibits remarkable evolutionary conservation from sea urchins to mammals, the regulatory circuitry and contextual signals demonstrate significant lineage-specific divergence. This review synthesizes recent advances in our understanding of both conserved and taxon-specific mechanisms driving endoderm specification, with particular emphasis on gene regulatory network (GRN) architecture, signaling pathway integration, and emerging mechanical influences. By comparing experimental findings across model organisms, we identify ancient regulatory principles and evolved innovations that collectively illuminate the developmental logic of endoderm formation. The synthesized knowledge presented herein provides a framework for understanding the evolutionary plasticity of germ layer specification and informs directed differentiation protocols for regenerative medicine applications.

Definitive endoderm development represents a fundamental process in bilaterian embryogenesis, establishing the progenitor population for essential organs including the liver, pancreas, and intestines. The molecular mechanisms governing endoderm specification have been shaped by over 570 million years of animal evolution, resulting in both deeply conserved regulatory modules and lineage-specific adaptations [33] [34]. The comparative analysis of endoderm formation across species reveals core principles of germ layer development while highlighting how developmental gene regulatory networks (GRNs) evolve to produce phenotypic diversity.

Modern lineage tracing and single-cell transcriptomic approaches have illuminated the complex hierarchy of transcription factors that control the transition from pluripotency to definitive endoderm [6] [35]. These studies demonstrate that endoderm specification operates through a sophisticated genomic control system that interprets both biochemical and mechanical cues in a spatially and temporally coordinated manner. The core circuitry of this system appears to have been established early in animal evolution, with echinoderms and vertebrates sharing common regulatory factors and signaling pathways despite their significant morphological divergence [33] [36].

This review examines the conservation and divergence of endoderm specification mechanisms through a comparative framework, focusing on GRN architecture, signaling pathway integration, and emerging mechanical influences. By synthesizing findings from multiple model systems, we aim to establish a comprehensive understanding of how evolutionary processes have shaped this fundamental developmental program while maintaining its essential function in gut formation and patterning.

Conserved Regulatory Machinery in Endoderm Development

Core Transcription Factor Network

The specification of definitive endoderm is orchestrated by a conserved set of transcription factors that form the hardwired core of the endoderm gene regulatory network. Studies across multiple species reveal that orthologous regulatory genes are expressed in corresponding endodermal cell fates despite significant evolutionary divergence times [33]. In both sea urchins (Strongylocentrotus purpuratus) and mammals, critical transcription factors including Foxa, Gatae, Sox17, and Brachyury establish the foundational regulatory states that define endodermal progenitors [33] [36] [35].

The hierarchical organization of these factors displays notable conservation, with certain transcription factors occupying privileged positions at the top of the regulatory hierarchy. In sea urchins, the initial endoderm GRN is activated in veg2 lineage cells through Tcf cis-regulatory sites that respond to Wnt/β-catenin signaling [36]. Similarly, in mammalian systems, the transition from pluripotency to definitive endoderm requires the T-box transcription factor Eomesodermin (Eomes), which is directly controlled by core pluripotency factors including Nanog [6]. This conservation of regulatory hierarchy extends to the mechanisms of fate restriction, where Delta/Notch signaling activates Tcf-mediated repression of endodermal genes in mesodermal precursors, ensuring proper lineage segregation [36].

Table 1: Evolutionarily Conserved Transcription Factors in Endoderm Specification

Transcription Factor	Function in Endoderm Specification	Evidence for Conservation
Foxa	Pioneer factor; regulates epithelial gatekeeper function	Expressed in anterior endoderm of sea urchins and mammalian definitive endoderm [33] [35]
Sox17	Definitive endoderm marker; regulates specification	Required for endoderm formation in zebrafish and mammals [6] [37]
Brachyury	Regulates mesendoderm formation; primitive streak marker	Expressed in endoderm precursors in sea urchins, zebrafish, and mammals [33] [34] [35]
Gatae	Endoderm differentiation and patterning	Expressed in aboral non-skeletogenic mesoderm and anterior endoderm in sea urchins [33]
Eomes	Initiation of definitive endoderm specification	Required for DE formation in mouse embryos and human pluripotent stem cells [6]

Signaling Pathway Conservation

The signaling environment that patterns the endoderm exhibits profound evolutionary conservation, with members of the TGF-β, Wnt, and FGF families playing recurrent roles across bilaterians. The Nodal/Activin branch of TGF-β signaling represents a particularly conserved pathway, directly activating endodermal transcription factors in both echinoderms and vertebrates [36] [6]. In sea urchins, Wnt/β-catenin signaling is required for endoderm specification through direct cis-regulatory interactions, while in mammals, Wnt signaling cooperates with other pathways to pattern the primitive streak and definitive endoderm progenitors [36] [35].

The conservation of signaling pathways extends to their mechanistic integration with transcription factor networks. For instance, in both sea urchins and mammals, signaling inputs are processed through cis-regulatory modules that function as spatial information processors, activating gene expression in cells receiving specific signals while repressing the same targets in other cells [36]. This "X,1-X" regulatory logic enables the precise spatial control of regulatory states despite variations in embryonic architecture and cleavage patterns between species.

Divergent Circuitry and Regulatory Innovations

Rewiring of Gene Regulatory Networks

Despite the conservation of core regulatory factors, comparative analyses reveal extensive rewiring of the endoderm GRN over evolutionary timescales. Studies comparing the purple sea urchin (Strongylocentrotus purpuratus) and the cidaroid sea urchin (Eucidaris tribuloides), which diverged at least 268 million years ago, demonstrate that orthologous regulatory genes control similar endomesodermal cell fates despite significant architectural changes in their regulatory circuitry [33]. For example, mesodermal Delta/Notch signaling controls the exclusion of alternative cell fates in E. tribuloides but regulates mesoderm induction and activates positive feedback circuits in S. purpuratus [33].

This evolutionary rewiring is particularly evident in the regulatory connections between signaling pathways and transcription factors. In zebrafish, Sox17 activation requires synergistic inputs from Pou5f1 and Sox32, with Nodal signaling activating sox32 and working cooperatively with Pou5f1 to activate sox17 [37]. This specific regulatory configuration represents a derived characteristic in the vertebrate lineage, contrasting with the direct Tcf-mediated activation of endodermal genes in sea urchins [36]. Similarly, the mechanism of endoderm-mesoderm separation differs between taxa, with sea urchins utilizing Tcf-mediated repression in mesoderm precursors while mammals employ a more complex regulatory program involving multiple EMT transcription factors [36] [35].

Table 2: Species-Specific Innovations in Endoderm Specification

Species/Lineage	Regulatory Innovation	Functional Consequence
Sea Urchins (S. purpuratus)	Tcf sites for both activation and repression of endoderm genes	Dual-use cis-regulatory logic for initiation and spatial restriction of endoderm program [36]
Mammals	Pluripotency factor-directed EOMES activation	Integration of endoderm specification with exit from pluripotency [6]
Zebrafish	Sox32-Pou5f1 synergy for Sox17 activation	Novel combinatorial control of definitive endoderm marker [37]
Drosophila	Mechanical induction of Twist via β-catenin	Incorporation of mechanosensitive pathway into mesendoderm specification [34]
Mammals	Foxa2 as EMT suppressor rather than inducer	Endoderm formation independent of complete EMT-MET cycle [35]

Divergent Morphogenetic Programs

The morphogenetic processes accompanying endoderm specification demonstrate significant evolutionary divergence, reflecting adaptations to distinct embryonic architectures. In mammals, definitive endoderm formation occurs through mechanisms of epithelial cell plasticity rather than a complete epithelial-to-mesenchymal transition (EMT) and subsequent mesenchymal-to-epithelial transition (MET) cycle [35]. Foxa2 acts as an epithelial gatekeeper and EMT suppressor that shields the endoderm from undergoing a full mesenchymal transition, maintaining E-cadherin expression while synchronously upregulating N-cadherin [35].

This stands in contrast to the classical EMT model derived from Drosophila and zebrafish studies, where endoderm progenitors were thought to undergo a complete EMT followed by MET [35] [36]. The mammalian mechanism represents a significant innovation that may be linked to the complex patterning requirements of the extended primitive streak and the need for precise anterior-posterior patterning of the gut tube. Similarly, variations in the timing and cellular basis of endoderm formation between echinoid sea urchin species highlight how conserved regulatory programs can be modified to produce distinct embryological outcomes [33].

Mechanotransduction in Endoderm Specification

Evolutionarily Conserved Mechanosensitive Pathways

Mechanical forces have emerged as evolutionarily conserved regulators of endoderm and mesoderm specification, with a common mechanosensitive pathway involving β-catenin operating in both zebrafish and Drosophila [34]. Mechanical strains generated during zebrafish epiboly and Drosophila mesoderm invagination trigger phosphorylation of β-catenin at tyrosine-667, leading to its release from cell junctions and translocation to the nucleus where it activates target genes including brachyury orthologs [34].

This mechanosensitive pathway dates back to at least the last bilaterian common ancestor more than 570 million years ago, coinciding with the period during which mesoderm is thought to have emerged [34]. The conservation of this mechanism across large evolutionary distances suggests that mechanical induction represented an ancient feature of mesendoderm specification that has been maintained in diverse lineages despite extensive divergence in embryonic development. In zebrafish, this mechanical induction is Wnt-independent during initial stages of epiboly, representing a distinct activation mechanism from the canonical Wnt/β-catenin signaling pathway [34].

Integration of Mechanical and Biochemical Signals

The mechanosensitive β-catenin pathway operates in concert with biochemical signaling to ensure robust patterning of the endoderm and mesoderm. In zebrafish, mechanical induction initiates β-catenin nuclear translocation and notail expression at the onset of epiboly, while Wnt signaling maintains these processes at later stages [34]. This temporal integration of mechanical and biochemical signals provides a fail-safe mechanism for proper germ layer specification under varying environmental conditions.

Recent studies in human pluripotent stem cells have revealed that cell size regulates endoderm specification through actomyosin-dependent AMOT-YAP signaling [38], indicating that mechanical properties at the cellular level influence fate decisions. This finding extends the principle of mechanical regulation beyond tissue-level strains to include cell-autonomous mechanical properties, suggesting a multi-scale mechanical control system for endoderm specification that has been conserved with modifications across animal phylogeny.

Experimental Approaches and Methodologies

Comparative Gene Regulatory Network Analysis

The identification of conserved and divergent features in endoderm specification has relied on sophisticated methodologies for GRN analysis. Perturbation-based approaches, including morpholino antisense oligonucleotides (MASOs) in sea urchins and genetic knockout studies in mammals, have enabled the systematic mapping of regulatory interactions [33] [36]. In sea urchins, comprehensive perturbation analyses (exceeding 6,500 data points) established causal relationships between transcription factors by measuring effects on all other regulatory genes in the network [36].

Boolean computational modeling has validated the accuracy of GRN models in capturing the temporal and spatial expression of regulatory genes, providing a framework for comparing network architectures across species [33]. These computational approaches have been essential for distinguishing conserved network kernels from evolutionarily plastic regulatory circuits, revealing that the echinoid endomesoderm GRN consists of a conserved set of transcription factors controlling similar cell fate-specific regulatory states despite extensive rewiring of their interconnections [33].

Stem Cell Differentiation Models

Stem cell differentiation systems have provided powerful platforms for dissecting the molecular mechanisms of human endoderm specification. Defined culture systems using chemically defined media supplemented with Activin, BMP4, FGF2, and PI3K inhibitors enable efficient differentiation of human embryonic stem cells (hESCs) into definitive endoderm, recapitulating key aspects of in vivo development [6]. These systems model the transition through a primitive streak-like stage marked by sequential activation of EOMES, MIXL1, BRACHYURY, and ultimately SOX17 and FOXA2 [6].

Time-resolved lineage tracing combined with high-resolution single-cell transcriptomics in mouse embryonic stem cells has revealed the dynamics of endoderm specification, demonstrating that definitive endoderm forms independent of a complete EMT-MET cycle [35]. This approach has identified Foxa2 as an epithelial gatekeeper that suppresses EMT in endoderm progenitors, in contrast to the classical EMT program executed by mesoderm progenitors [35].

Table 3: Key Research Reagent Solutions for Endoderm Specification Studies

Research Tool	Application	Experimental Function
STEMdiff Definitive Endoderm Kit	Human ESC/iPSC differentiation	Defined, animal component-free medium for efficient DE differentiation [39]
Morpholino Antisense Oligonucleotides (MASOs)	Gene perturbation in sea urchins	Targeted knockdown of regulatory genes for GRN analysis [36]
Foxa2–Venus/Sox17–mCherry reporters	Lineage tracing in mouse embryos	Live imaging and isolation of endoderm progenitors during gastrulation [35]
TGFP/Foxa2tagRFP dual-reporter mESCs	In vitro differentiation studies	Simultaneous monitoring of mesoderm and endoderm specification [35]
Blebbistatin and Nocodazole	Mechanical perturbation	Inhibition of morphogenetic movements to test mechanotransduction [34]
Ultramagnetic Liposomes (UMLs)	Mechanical rescue experiments	Localized force application to restore morphogenetic movements [34]

Implications for Developmental Biology and Regenerative Medicine

The evolutionary perspective on endoderm specification provides fundamental insights with practical applications in regenerative medicine. Understanding the conserved core of the endoderm GRN has informed directed differentiation protocols for generating definitive endoderm from human pluripotent stem cells, a critical first step in producing pancreatic, hepatic, and intestinal cell types for therapeutic applications [6] [39]. The recognition that mechanical cues influence cell fate decisions has led to improved differentiation efficiency through modulation of substrate stiffness and cell density [38].

Furthermore, the identification of species-specific differences in endoderm formation highlights the limitations of extrapolating mechanisms across model organisms and underscores the importance of validating findings in human systems. The divergent morphogenetic programs between mammals and other vertebrates, particularly regarding EMT-MET cycles, necessitates careful consideration when applying insights from zebrafish or Drosophila to human development and disease modeling [35]. These evolutionary comparisons thus provide both conceptual frameworks for understanding developmental mechanisms and practical guidance for manipulating cell fate in regenerative contexts.

The specification of definitive endoderm represents a deeply conserved developmental process that has nevertheless undergone significant evolutionary modification in its regulatory circuitry and morphogenetic implementation. Core transcription factors including Foxa, Sox17, and Brachyury form an ancient regulatory kernel that has been maintained across bilaterian evolution, while the connections between these factors and their upstream regulators have been extensively rewired in different lineages. Signaling pathways such as Wnt/β-catenin, TGF-β/Nodal, and mechanotransduction mechanisms provide conserved inputs that are interpreted in lineage-specific ways to pattern the endoderm and segregate it from other germ layers.

The emerging synthesis from comparative studies reveals a sophisticated developmental system that balances evolutionary constraint with flexibility, maintaining essential functions while adapting to diverse embryonic contexts. Future research integrating single-cell multi-omics, genome editing, and synthetic biology approaches across multiple species will further elucidate the principles governing the evolution of endoderm specification and enhance our ability to manipulate this process for regenerative applications. The evolutionary perspective thus provides not only a historical record of developmental change but also a predictive framework for understanding and engineering cell fate decisions.

From Bench to Bedside: Engineering Endodermal Lineages Through Advanced Technologies

The efficient derivation of definitive endoderm (DE) from human pluripotent stem cells (hPSCs) represents a critical first step in generating a multitude of organ-specific cells for disease modeling, drug screening, and regenerative medicine. This process hinges on the precise activation of key signaling pathways—primarily Activin/Nodal and Wnt—that direct cell fate during gastrulation. This technical guide elucidates the molecular mechanisms, optimized protocols, and signaling principles underlying Activin A and Wnt agonist-based DE induction. By integrating quantitative data on signaling kinetics and reagent-specific effects, this review provides a structured framework for researchers to design robust, reproducible differentiation protocols, thereby advancing the specification of functional endodermal lineages such as hepatic, pancreatic, and intestinal cells.

In mammalian embryonic development, the formation of the definitive endoderm during gastrulation establishes the progenitor population for essential internal organs including the liver, pancreas, lungs, and thyroid. The in vitro specification of DE from hPSCs strives to mimic these in vivo developmental events through the controlled application of specific morphogens. Among these, Activin A (a functional analog of Nodal) and Wnt agonists have been established as the cornerstone signaling inputs for efficient DE induction [40] [41] [42]. The synergy between these pathways initiates a transcriptional cascade that drives the exit from pluripotency and commitment to the endodermal lineage, a process governed by master transcription factors including EOMES, SOX17, and FOXA2 [24]. A deep understanding of the temporal dynamics, concentration thresholds, and crosstalk of these signals is paramount for achieving high-purity DE and subsequent successful differentiation into functional endodermal derivatives.

Molecular Mechanisms and Signaling Pathways

The directed differentiation of hPSCs into DE is governed by the precise activation and subsequent inhibition of evolutionarily conserved signaling pathways. The core machinery involves the synergistic interaction of Activin/Nodal and Wnt/β-catenin signaling, which collaboratively establish a gene regulatory network that suppresses pluripotency and promotes endodermal fate.

Core Signaling Pathways in DE Specification

• Activin/Nodal (TGF-β) Signaling: Activation of this pathway through recombinant Activin A binding to cell surface receptors leads to the phosphorylation and nuclear translocation of SMAD2/3 transcription factors. This complex activates key mesendodermal genes, with EOMES being a critical early target. The pluripotency factors NANOG, OCT4, and SOX2 play an active role in this process by priming the expression of EOMES, thereby connecting the pluripotent state to the endodermal differentiation program [24]. The EOMES protein, in turn, cooperates with SMAD2/3 to initiate the transcriptional network governing endoderm formation.
• Wnt/β-catenin (Canonical) Signaling: Wnt signaling is typically activated in DE protocols using Wnt3a or small-molecule GSK-3 inhibitors such as CHIR99021. These agonists stabilize β-catenin, allowing its nuclear accumulation where it partners with T-cell factor (TCF) transcription factors to activate target genes. This pathway is indispensable for the initial specification of the primitive streak-like population, from which the DE emerges [40] [42]. Wnt signaling shows a powerful synergy with Activin A, as it promotes the expression of genes that reinforce the DE transcriptional network.
• Pathway Crosstalk and Temporal Dynamics: The interplay between these pathways is not merely additive but synergistic. Wnt signaling enhances the response to Activin A, potentially by facilitating the nuclear accumulation of SMAD2/3. However, the duration of Wnt activation is critically important. Prolonged Wnt signaling can lead to the posteriorization of the endoderm, favoring hindgut and intestinal fates at the expense of anterior fates like liver and pancreas [40]. This underscores the need for precise, stage-specific modulation of these pathways.

Table 1: Key Signaling Molecules in Definitive Endoderm Specification

Signaling Molecule	Type/Function	Key Downstream Effectors	Primary Role in DE Specification
Activin A	TGF-β family ligand, Nodal substitute	SMAD2/3, EOMES, FOXA2, SOX17	Induces mesendoderm and DE gene expression programs
Wnt3a	Canonical Wnt pathway ligand	β-catenin, TCF/LEF	Specifies primitive streak fate; synergizes with Activin A
CHIR99021	Small-molecule GSK-3 inhibitor	β-catenin (stabilized)	Activates Wnt signaling chemically; cost-effective
BMP4	TGF-β family ligand	SMAD1/5/8	Can synergize with Activin to induce DE; suppresses pluripotency

The following diagram illustrates the core signaling logic and transcriptional regulation in definitive endoderm specification:

Emerging Insights and Non-Canonical Pathways

While the Activin/Nodal and canonical Wnt pathways are the principal drivers, other factors contribute to robust DE specification. Recent research highlights the role of transcription factors like OTX2 in directing the specification and patterning of the DE by remodeling enhancers, ensuring the correct spatiotemporal expression of genes necessary for foregut formation [15]. Furthermore, the non-canonical Wnt ligand Wnt5a exhibits a distinct expression profile, with studies showing its upregulation during later stages of endoderm induction, suggesting a potential role in the maturation or patterning of DE cells rather than in the initial fate specification [43].

Experimental Protocols and Workflow Optimization

The transition from pluripotency to DE is a finely orchestrated process. Standardized, efficient protocols are built upon a foundation of stage-specific signaling modulation, with precise control over timing, reagent concentration, and the cellular microenvironment.

Standard DE Induction Workflow

A foundational protocol for DE differentiation from primed hPSCs involves a multi-stage process [40] [42]:

• Day 0 (Initiation): hPSCs at ~70-80% confluence are primed for differentiation. The base medium is switched to one suitable for differentiation, such as RPMI 1640 supplemented with B27.
• Days 1-3 (DE Induction): Cells are treated with a combination of 100 ng/mL Activin A and a Wnt pathway agonist. The choice and duration of the Wnt agonist are critical variables.
  • Option A (Wnt3a): Use 100 ng/mL Wnt3a for the first 24 hours only [42].
  • Option B (GSK-3 inhibitor): Use 3 μM CHIR99021 for the first 24 hours only.
  • Serum replacement (e.g., 0.2-2% KOSR) is often introduced in a graded manner over this period to enhance differentiation efficiency.
• Day 4 Onwards (Lineage Specification): The resulting DE cells (typically >80% SOX17+/FOXA2+) can be harvested and directed toward specific lineages (e.g., hepatic, pancreatic) by activating subsequent stage-specific signaling pathways.

The following workflow diagram summarizes this multi-day experimental process and its critical decision points:

Quantitative Optimization Data

Protocol efficiency is highly dependent on specific reagent concentrations and timing. The table below summarizes key experimental data for different DE induction conditions, enabling direct comparison and protocol selection.

Table 2: Quantitative Comparison of Definitive Endoderm Induction Conditions

Induction Condition	Reported Efficiency (SOX17+/FOXA2+)	Key Parameters & Duration	Impact on Progenitor Capacity
Activin A + WNT3A [42]	>80%	100 ng/mL Activin A, 100 ng/mL WNT3a, 3 days (WNT3a first 24h)	Maintains hepatic and pancreatic potential
Activin A + CHIR99021 [42]	>80%	100 ng/mL Activin A, 3 μM CHIR, 3 days (CHIR first 24h)	Maintains hepatic and pancreatic potential; cost-effective
Prolonged Wnt/Activin [40]	High purity (>90% CXCR4+)	Activin A + Wnt3a for 5-7 days	Impaired pancreatic capacity, retained hepatic potential
Activin A + BMP4 [42]	>80%	100 ng/mL Activin A, 10-50 ng/mL BMP4, 3 days	Effective DE induction; suppresses pluripotency genes

Advanced Methodologies

Innovative approaches are being developed to increase the precision and efficiency of DE differentiation. One such method involves the use of gradient surfaces with immobilized Activin A, which more closely mimics the morphogen gradients found in vivo. This nanotechnology-based platform has been shown to enable faster and more efficient differentiation into DE compared to standard soluble factor protocols [44]. Furthermore, the initial pluripotency state of the stem cells (naive vs. primed) has been demonstrated to influence the signaling response and developmental trajectory during the specification of not only DE but also other lineages like extraembryonic mesoderm, highlighting the importance of starting cell culture conditions [45].

The Scientist's Toolkit: Essential Research Reagents

The successful implementation of DE differentiation protocols relies on a well-characterized set of biological reagents, small molecules, and assay tools. The following table catalogs the essential components for a DE induction workflow.

Table 3: Essential Research Reagents for Definitive Endoderm Differentiation

Reagent / Tool	Specific Example	Function & Application
Recombinant Proteins	Activin A (≥100 ng/mL)	Activates Nodal/Activin signaling; primary inducer of DE [40] [42]
	Wnt3a (25-100 ng/mL)	Activates canonical Wnt signaling; specifies primitive streak fate [40] [42]
Small Molecule Agonists	CHIR99021 (1-3 μM)	GSK-3 inhibitor; chemically activates Wnt signaling; cost-effective alternative to Wnt3a [46] [42]
Basal Media & Supplements	RPMI 1640 / B27	Chemically defined medium for differentiation
	Knockout Serum Replacement (KOSR)	Used in graded concentrations (0.2% → 2%) to enhance DE yield
Characterization Antibodies	anti-SOX17, anti-FOXA2	Intracellular staining for definitive endoderm (primary markers)
	anti-CXCR4 (CD184)	Surface marker for flow cytometry analysis and sorting of DE cells
	anti-OCT4, anti-NANOG	Pluripotency markers; confirmation of pluripotency exit
Fosmanogepix	Fosmanogepix, CAS:936339-60-5, MF:C21H18N4O2, MW:358.4 g/mol	Chemical Reagent
AQ148	AQ148, CAS:178820-70-7, MF:C30H37N3O4, MW:503.6 g/mol	Chemical Reagent

The strategic application of Activin A and Wnt agonists provides a robust and widely validated foundation for specifying definitive endoderm from hPSCs. The critical advance in this field has been the recognition that the timing and duration of these signals are as important as their presence. Short, initial co-stimulation is optimal for generating multipotent DE capable of yielding both anterior and posterior lineages, whereas prolonged Wnt signaling restricts progenitor potential. As the field progresses, the integration of advanced biomaterial platforms like gradient surfaces and a deeper understanding of the epigenetic regulators, such as OTX2, will further enhance the efficiency, purity, and functionality of DE cells. This continuous refinement of differentiation paradigms is essential for realizing the full clinical and research potential of hPSC-derived endodermal tissues.

The study of definitive endoderm (DE) specification is a cornerstone of developmental biology, offering critical insights into the formation of the gastrointestinal tract, liver, pancreas, and lungs. During gastrulation in amniotes, DE progenitors located in the epiblast ingress through the anterior primitive streak, a process governed by an intricate and highly conserved molecular circuitry [1]. A profound understanding of these mechanisms is not only fundamental to embryology but also pivotal for refining protocols to differentiate stem cells into pure DE populations for disease modeling, drug screening, and regenerative medicine. Traditional in vitro models, however, often fall short in mimicking the dynamic signaling landscape and spatial organization of the developing embryo, leading to inefficient or heterogeneous differentiation.

Microfluidic automation presents a paradigm shift, enabling high-throughput, high-content screening (HCS) of the complex parameter space that influences DE specification. This whitepaper details how automated microfluidic platforms can be leveraged to systematically dissect the mechanisms of endoderm formation. By providing unprecedented control over the cellular microenvironment, miniaturization, and parallelization, this technology allows researchers to move beyond static, population-level analyses to dynamic, single-cell resolution studies within a physiologically relevant context, directly bridging gaps in our understanding of gastrulation.

The Molecular Basis of Definitive Endoderm Specification

Key Signaling Pathways and Morphogenetic Events

Definitive endoderm formation is initiated by key signaling pathways. The TGF-β superfamily member Nodal is the primary inducer of both mesoderm and endoderm in vertebrates. The level of Nodal signaling is critical; peak levels specify endoderm, while lower levels promote mesoderm fate [1]. This graded activity is central to patterning the embryo. Nodal expression is itself induced by the canonical Wnt pathway, and the two act in synergy to specify definitive endoderm and form the primitive streak [1]. Furthermore, evidence suggests that in mice, DE is formed from bipotential mesendoderm progenitors located in the anterior streak, which co-express markers for both germ layers [1].

A pivotal finding in mammalian development is that endoderm formation occurs through a mechanism distinct from classical epithelial-to-mesenchymal transition (EMT). While mesoderm formation is driven by the EMT transcription factor Snail1, which downregulates E-cadherin, definitive endoderm formation is shielded from this mesenchymal transition. The transcription factor Foxa2 acts as an epithelial gatekeeper and EMT suppressor, allowing DE progenitors to maintain E-cadherin and ingress into the forming endoderm layer via mechanisms of epithelial cell plasticity rather than a full EMT-MET cycle [3]. This process involves the synchronous upregulation of N-cadherin while E-cadherin is maintained [3].

Visualizing the Endoderm Specification Pathway

The following diagram synthesizes the core molecular and cellular events during definitive endoderm specification, from initial signaling to germ layer segregation.

Microfluidic Platforms for High-Throughput Screening

Core Principles and Advantages

Microfluidics, the science of manipulating small volumes of fluids (10⁻⁹ to 10⁻¹⁸ liters) in micrometer-scale channels, provides a powerful foundation for advanced cell culture and screening [47]. When applied to HCS of differentiation conditions, it offers several transformative advantages over conventional multi-well plates:

• Miniaturization and Cost Efficiency: Microfluidic devices can reduce reagent consumption by up to 150-fold, leading to potential savings of $1-2 per data point. This is crucial for large-scale screens involving expensive cytokines, growth factors, and drug libraries [48].
• Enhanced Microenvironmental Control: The technology enables precise temporal and spatial control over fluid flows, allowing for the creation of stable, complex concentration gradients and the application of time-varying stimuli that closely mimic in vivo developmental cues [48] [49].
• High-Throughput and Parallelization: Devices can be designed with hundreds of independent or addressable culture chambers, enabling the simultaneous testing of thousands of combinatorial conditions in a single, automated experiment [49].
• Single-Cell Resolution and Real-Time Analysis: The platforms are compatible with live-cell imaging, allowing for continuous, non-invasive monitoring of cellular responses, such as the dynamics of transcription factor expression (e.g., Foxa2, Sox17) at single-cell resolution [48] [50].

Exemplary Platform Architectures

Integrated Valve-Based Systems: One advanced approach involves a polydimethylsiloxane (PDMS)-based device with 32 separate compartments controlled by integrated membrane valves. This system allows for the programmed exposure of thousands of individual cells to different combinations and concentrations of factors over time, followed by automated fixation, immunostaining, and imaging [48].

Automated Organoid Screening Platforms: For more complex 3D cultures, a valve-less, reversibly bonded two-layer device has been developed. It features a 200-well array for housing organoids in Matrigel, with an overlying fluidic channel layer. A separate, automated multiplexer device dynamically delivers preprogrammed fluidic sequences (e.g., media, drugs) to 20 independent channel subsets. This system is specifically engineered with large chamber heights (610 μm) to accommodate growing organoids and is compatible with temperature-sensitive matrices [49].

Table 1: Key Specifications of Featured Microfluidic Platforms

Platform Feature	Integrated Valve-Based System [48]	Automated Organoid Platform [49]
Material	Polydimethylsiloxane (PDMS)	Two-layer clamped design (material not specified)
Culture Format	2D / Adherent cells	3D / Organoids in Matrigel or hydrogel
Throughput	~10,000 individual cell experiments	200 chambers (20 independent conditions)
Key Enabling Technology	Integrated membrane valves	Reversible bonding; separate multiplexer device
Automation Capability	Fully automated fluid handling and staining	Programmable, dynamic drug treatments
Primary Readout	High-content immunocytochemistry	Real-time 3D phase contrast/fluorescence microscopy

Experimental Protocols for On-Chip Endoderm Differentiation

This section provides a detailed methodology for implementing a high-throughput screen for DE differentiation conditions using an automated microfluidic system.

Protocol: Differentiating and Screening mESCs for Definitive Endoderm

Objective: To differentiate mouse Embryonic Stem Cells (mESCs) into definitive endoderm within a microfluidic device and screen for the effects of various small molecules or signaling factors on differentiation efficiency.

Workflow Overview:

• Device Preparation: Sterilize the microfluidic device (e.g., UV light, ethanol flush) and pre-coat channels and chambers with an appropriate extracellular matrix (e.g., fibronectin, Matrigel).
• Cell Loading and Seeding:
  • Harvest and concentrate pluripotent mESCs (e.g., dual-reporter line TGFP/+; Foxa2tagRFP/+) to a density of ~2-10 x 10⁶ cells/mL.
  • Introduce the cell suspension into the device's inlet reservoir.
  • Use precise pressure control or syringe pumps to load and settle approximately 300-500 cells into each culture chamber [48].
  • Allow cells to adhere for several hours under standard culture conditions (37°C, 5% COâ‚‚).
• On-Chip Differentiation:
  • Initiate differentiation by flushing the device with a definitive endoderm induction medium. A typical base medium consists of RPMI 1640 supplemented with B27, Activin A (100ng/mL), and Wnt3a (25ng/mL) [3].
  • The automated fluidic system is programmed to expose different chamber groups to variations of this base condition, such as:
    • Different concentrations of growth factors (e.g., Activin A gradient from 0-100ng/mL).
    • Presence or absence of small molecule inhibitors (e.g., IKK inhibitor SC-514 to probe NF-κB pathway role) [48].
    • Complex, time-varying pulses of stimuli to mimic developmental signaling dynamics [48].
  • Media and factor conditions are refreshed according to the programmed protocol for 4-5 days.
• Real-Time Monitoring and Endpoint Analysis:
  • Live Imaging: Use time-lapse microscopy to monitor the expression of the Foxa2tagRFP and TGFP reporters, tracking the emergence of Foxa2+/T- definitive endoderm progenitors over time [3].
  • Immunostaining: At the endpoint, automatically perfuse the device with fixative (e.g., 4% PFA), permeabilization buffer (e.g., 0.1% Triton X-100), and blocking solution.
  • Introduce fluorescently labeled antibodies against key markers (e.g., anti-Sox17 for definitive endoderm [3], anti-E-cadherin, anti-N-cadherin [3]) and nuclear stains (e.g., DAPI).
  • Perform high-resolution confocal or deconvolution microscopy on all chambers.
• Data Acquisition and Analysis:
  • Use automated image analysis software (e.g., CellProfiler, custom scripts) to segment individual cells and quantify:
    • The percentage of Foxa2+/Sox17+ cells per chamber (definitive endoderm efficiency).
    • Intensity of E-cadherin and N-cadherin staining.
    • Nuclear localization of fluorescence reporters.
  • Correlate quantitative differentiation outcomes with the specific condition applied to each chamber.

The Scientist's Toolkit: Essential Research Reagents

Table 2: Key Reagents for Microfluidic Screening of Endoderm Differentiation

Reagent / Material	Function / Purpose	Example
Reporter mESC Line	Enables live tracking of differentiation toward mesoderm and endoderm fates via fluorescent proteins.	TGFP/+; Foxa2tagRFP/+ dual-reporter cells [3]
Definitive Endoderm Inducers	Key signaling molecules that activate the molecular pathway for endoderm specification.	Recombinant Activin A, Nodal, Wnt3a, Gdf1/3 [1]
Small Molecule Inhibitors/Agonists	Used to perturb specific pathways and test their role in endoderm specification and EMT suppression.	IKK inhibitor (e.g., SC-514), Snail1 inhibitors, Wnt pathway modulators [48]
Extracellular Matrix (ECM)	Provides a physiological scaffold for 3D culture or a coating for 2D culture, supporting cell adhesion and signaling.	Matrigel, synthetic hydrogels, fibronectin [49]
Validation Antibodies	Critical for endpoint immunostaining to confirm protein-level expression of key markers.	Anti-Sox17, Anti-Foxa2, Anti-E-cadherin, Anti-N-cadherin [3]
Argtide	Argtide, CAS:138111-66-7, MF:C80H104ClN21O14, MW:1619.3 g/mol	Chemical Reagent
AS-183	AS-183, CAS:147317-12-2, MF:C19H34O3, MW:310.5 g/mol	Chemical Reagent

Visualizing the High-Throughput Screening Workflow

The entire process, from device preparation to data analysis, can be summarized in the following automated workflow.

The integration of microfluidic automation with the core principles of developmental biology represents a transformative approach to investigating definitive endoderm specification. By enabling high-throughput, high-content screening with precise spatiotemporal control, this technology allows researchers to systematically decode the complex signaling networks and morphogenetic events, such as the Foxa2-mediated epithelial plasticity recently identified in mammals [3]. The ability to perform thousands of parallel experiments on a single chip, using minimal quantities of precious reagents and primary cells, dramatically accelerates the pace of discovery [48] [49]. As these platforms continue to evolve, they will not only deepen our fundamental understanding of gastrulation but also streamline the development of robust, clinically relevant protocols for generating definitive endoderm lineages, thereby advancing the entire field of regenerative medicine and therapeutic discovery.

The study of human development has been revolutionized by the emergence of three-dimensional (3D) organoid systems, which provide unprecedented opportunities to investigate endodermal patterning and morphogenesis outside the human body. These self-organizing multicellular structures recapitulate key aspects of human organ development, enabling researchers to investigate cellular interactions, lineage specification, and tissue formation that were previously inaccessible [51] [52]. For researchers and drug development professionals, organoid technology offers a powerful platform for disease modeling, drug screening, and regenerative medicine applications, bridging the critical gap between traditional 2D cell culture and animal models that often fail to fully replicate human physiology [51] [52].

Within the context of definitive endoderm specification during gastrulation, organoid systems have proven particularly valuable for understanding how endoderm-derived organs—including the liver, pancreas, intestines, and lungs—emerge from a common embryonic precursor [51] [53]. The directed differentiation of human pluripotent stem cells (hPSCs) through developmental pathways mimicking gastrulation has enabled the generation of organoids representing diverse endodermal tissues, providing new insights into the signaling mechanisms and morphogenetic processes that govern human organogenesis [51] [45] [53].

Fundamentals of Endodermal Organoid Development

Historical Context and Definitions

Organoids are defined as mini-organs formed in 3D culture that possess the capability to self-organize, self-renew, and differentiate into multiple cell types associated with their corresponding organs [51]. While interest in organoid technology has surged in the past decade, the conceptual foundations date back to early 20th century experiments showing that dissociated sponge cells could reaggregate and reorganize into new viable organisms [51]. The modern era of organoid research began with critical advances in understanding extracellular matrix (ECM) components and their role in supporting 3D tissue architecture and function [51].

The emergence of Matrigel as a complex basement membrane extract provided the crucial substrate for 3D culture systems, enabling fundamental processes such as cellular migration, lineage commitment, and cellular organization to occur in a physiologically relevant microenvironment [51]. Seminal work by Sasai and colleagues in 2008 demonstrated that self-organized cortical tissues could be derived from directed differentiation of ESCs using 3D aggregation culture [51] [52], followed shortly by Clevers' breakthrough showing that single LGR5+ intestinal stem cells could generate complex intestinal structures containing multiple cell types [51] [52].

Advantages Over Traditional Model Systems

Compared to 2D culture systems, 3D organoids offer superior recapitulation of in vivo conditions by preserving tissue-like architecture, cellular heterogeneity, and proper polarization of cells [51] [52]. While 2D systems fail to accurately mimic natural tissue structure and alter patterning, polarity, and gene expression patterns, organoids maintain these essential characteristics, enabling more physiologically relevant studies of human development and disease [51]. The 3D organization allows for fundamental developmental processes such as spatially restricted lineage commitment and cellular segregation to occur with remarkable fidelity to in vivo organogenesis [51].

Generating Endodermal Organoids from Pluripotent Stem Cells

Definitive Endoderm Specification

The generation of endodermal organoids from hPSCs begins with the specification of definitive endoderm (DE), a critical stage in gastrulation that gives rise to the respiratory and digestive epithelium, as well as organs including the thyroid, thymus, liver, and pancreas [54]. Recent research has revealed that DE differentiation is accompanied by a gradual decrease in cell size and an increase in cellular stiffness, suggesting an important role for biomechanical factors in lineage specification [54].

The application of hypertonic pressure to accelerate cell size reduction has been shown to significantly enhance DE differentiation efficiency, highlighting the potential for biophysical manipulation to guide cell fate decisions [54]. This process is mediated by actomyosin-dependent nuclear translocation of angiomotin (AMOT), which suppresses Yes-associated protein (YAP) activity and thereby facilitates DE specification [54]. The discovery of this mechanosensitive pathway provides new opportunities for optimizing DE differentiation protocols through physical as well as biochemical means.

Signaling Pathways in Endoderm Patterning

The directed differentiation of hPSCs into specific endodermal lineages requires precise temporal manipulation of key signaling pathways that mirror embryonic development. The following diagram illustrates the core signaling pathways and their interactions in definitive endoderm specification:

BMP, WNT, and Nodal signaling pathways play particularly critical roles in definitive endoderm specification, often acting through the induction of a primitive streak-like intermediate [45]. Modulation of these pathways can efficiently induce both naive and primed hESCs to differentiate into endodermal lineages with high efficiency (approximately 90%) within 4-5 days [45]. The specific combination and timing of these signals determine the regional identity of the resulting endodermal tissue, with anterior patterning favoring foregut derivatives (lung, thyroid, stomach) and posterior patterning promoting mid/hindgut derivatives (intestine, colon) [51] [53].

Protocol for Definitive Endoderm Differentiation

The following protocol outlines the key steps for efficient definitive endoderm differentiation from human pluripotent stem cells:

• Cell Preparation: Culture hPSCs in defined pluripotency maintenance medium until approximately 70-80% confluent.
• Differentiation Initiation: Replace maintenance medium with definitive endoderm induction medium containing:
  • Activin A (100ng/mL) to activate Nodal signaling
  • CHIR99021 (3μM) to activate WNT signaling
  • BMP4 (10-50ng/mL) to promote primitive streak formation
• Serum Gradient: Include a low concentration of fetal bovine serum (0-2%) for the first 24 hours, followed by serum-free conditions for subsequent days.
• Hypertonic Treatment (Optional): Apply mild hypertonic pressure (50mM sucrose) to enhance differentiation efficiency through cell size reduction [54].
• Duration: Continue differentiation for 4-5 days with daily medium changes.
• Validation: Assess efficiency by flow cytometry for definitive endoderm markers (CXCR4, SOX17, FOXA2) which should exceed 80% in optimized protocols.

This protocol typically yields 80-90% definitive endoderm cells when optimized, providing a robust foundation for subsequent patterning into specific endodermal organoids [45] [54].

Regional Patterning of Endodermal Organoids

Anterior versus Posterior Patterning

Following definitive endoderm specification, regional patterning determines which specific endodermal organs will develop. Anterior patterning toward foregut fate is achieved through inhibition of WNT and BMP signaling, often using small molecule inhibitors such as DKK1 (WNT inhibitor) and Noggin (BMP inhibitor) [51] [53]. This anteriorized endoderm can subsequently be directed toward lung, thyroid, gastric, or hepatic fates through tissue-specific morphogens.

Posterior patterning toward mid/hindgut fate requires sustained WNT and FGF signaling activation, typically through addition of CHIR99021 (WNT agonist) and FGF4 [51] [53]. Posterior endoderm spontaneously forms 3D intestinal organoids when cultured in Matrigel with continued WNT activation. The homeobox transcription factor CDX2 has been identified as a critical regulator of intestinal fate, required for regionalization of both intestinal epithelium and mesenchyme in humans [53].

Organoid Maturation and Culture

Once regional patterning is established, organoids are embedded in Matrigel or other ECM substrates and cultured with tissue-specific media formulations that promote growth and maturation. The following diagram illustrates the general workflow for generating and analyzing endodermal organoids:

For intestinal organoids, the mesenchyme-derived niche cue NRG1 has been shown to enhance intestinal stem cell maturation in vitro beyond what is achieved with standard culture conditions [53]. Similarly, other tissue-specific factors are continually being identified that promote functional maturation of various endodermal organoids.

Benchmarking Organoid Fidelity Using Atlas Technologies

The Human Endoderm-Derived Organoid Cell Atlas

Recent advances in single-cell transcriptomics have enabled the creation of comprehensive reference atlases to benchmark organoid fidelity. The Human Endoderm-Derived Organoid Cell Atlas (HEOCA) integrates single-cell transcriptomes from 218 samples covering organoids of diverse endodermal tissues, including nearly one million cells across multiple conditions, data sources, and protocols [55] [56].

This atlas enables systematic assessment of how well organoid-derived cell states reflect their in vivo counterparts and identifies off-target cell types that may arise during organoid differentiation [55]. Analysis of this integrated atlas has revealed that:

• Adult stem cell (ASC)-derived organoids show the highest similarity (average 98.14% for intestine) to adult primary tissues
• Fetal stem cell (FSC)-derived organoids exhibit an intermediate similarity profile
• PSC-derived organoids most closely resemble fetal counterparts, with on-target percentages ranging from 23.28% to 83.63% depending on the reference atlas used for comparison [55]

Quantitative Assessment of Organoid Composition

The table below summarizes the cellular composition and fidelity metrics for major endodermal organoid types based on integrated atlas data:

Table 1: Cellular Fidelity of Endodermal Organoids Based on Reference Atlas Mapping

Organoid Type	Stem Cell Source	Average On-Target Percentage	Most Similar Primary Counterpart	Common Off-Target Cells
Small Intestine	ASC	98.14%	Adult intestine	Rare pulmonary cells
Small Intestine	FSC	91.12%	Fetal intestine	Mesenchymal cells
Small Intestine	PSC	23.28-83.63%	Fetal intestine	Neural, hepatic cells
Lung	ASC	95.47%	Adult lung	Rare intestinal goblet cells
Lung	PSC	45.71%	Fetal lung	Thyroid cells, intestinal epithelium
Liver	PSC	62.35%	Fetal liver	Cholangiocytes, mesenchymal cells

Data compiled from the Human Endoderm-Derived Organoid Cell Atlas (HEOCA) [55] [56]

The integrated atlas also enables identification of consistent markers for specific cell types across different organoid protocols, such as OLFM4 for stem cells and TP63 for basal cells, providing standardized metrics for quality control across laboratories [55].

Engineering Advances in Organoid Systems

Bioengineering Approaches for Enhanced Organoid Complexity

While self-organization is a fundamental principle of organoid development, engineering approaches are being employed to generate more complex and reproducible organoid systems. These include:

• Biomaterial scaffolds with tunable mechanical properties to guide morphogenesis
• Microfluidic systems to create precise chemical gradients and mechanical stimulation
• Spatial patterning techniques to control initial cell organization
• Biofabrication methods to scale up organoid production and standardization [57] [52]

These engineering strategies address key limitations of self-organizing organoid systems, including high variability, limited size control, and incomplete cellular diversity [57]. The incorporation of external constraints can reduce variability while enhancing physiological relevance and translatability for drug screening applications [52].

Assembloids for Studying Organ Interactions

A recent advancement in organoid technology is the development of assembloids—3D cultures that combine multiple organoids or spheroids representing different tissue types [52]. These systems enable investigation of interactions between different organs or brain regions, allowing researchers to study complex biological processes such as neural circuit formation, immune system interactions, and multi-organ diseases [52].

For endodermal applications, assembloid approaches have been used to model interactions between different regions of the gastrointestinal tract, from foregut to hindgut, providing new insights into regional specification and cellular migration along the GI axis [52].

The Scientist's Toolkit: Essential Reagents for Endodermal Organoid Research

Table 2: Essential Research Reagents for Endodermal Organoid Generation and Characterization

Reagent Category	Specific Examples	Function in Organoid Research
ECM Substrates	Matrigel, Collagen I, Laminin-511	Provide 3D structural support and biochemical cues for morphogenesis
Signaling Agonists	CHIR99021 (WNT), BMP4, FGF4, NRG1	Activate specific developmental pathways for patterning
Signaling Antagonists	DKK1 (WNT), Noggin (BMP), SB431542 (TGF-β)	Inhibit pathways to direct anterior/posterior patterning
Cell Surface Markers	CXCR4, CDH1, EPCAM, CD44	Isulate and characterize specific cell populations
Transcriptional Reporters	SOX17-GFP, FOXA2-mCherry	Visualize and isolate definitive endoderm populations
Morphogens	Activin A, Retinoic Acid, Sonic Hedgehog	Provide tissue-specific patterning signals
Mechanical Manipulators	Hypertonic media, Stiffness-tunable substrates	Modulate cell size and mechanics to influence cell fate
ASP8497	ASP8497, CAS:651055-26-4, MF:C18H27FN4O7S, MW:462.5 g/mol	Chemical Reagent
NVP-BAW2881	NVP-BAW2881, MF:C22H15F3N4O2, MW:424.4 g/mol	Chemical Reagent

Applications in Disease Modeling and Drug Development

Endodermal organoids have been successfully employed to model a wide range of human diseases, providing valuable insights into disease mechanisms and opportunities for therapeutic development. Key applications include:

• Infectious diseases: Gastric organoids have been used to model H. pylori infection, revealing host-pathogen interactions and potential therapeutic targets [51]
• Genetic disorders: Liver organoids have modeled Alagille syndrome, providing platforms for drug screening [51]
• Metabolic diseases: Liver organoids have been used to model steatohepatitis, enabling study of disease progression and intervention strategies [51]
• Cancer: Patient-derived organoids recapitulate features of primary tumors, enabling personalized drug testing and biomarker discovery [52]

The ability to generate organoids from human induced pluripotent stem cells (iPSCs) derived from patients with specific genetic backgrounds has been particularly transformative for studying genetic diseases and developing personalized medicine approaches [51] [52].

The field of endodermal organoid research continues to evolve rapidly, with several promising directions emerging:

• Integration with immune systems to better model inflammatory and autoimmune conditions
• Vascularization to overcome size limitations and enhance functional maturation
• Multi-organ systems to study interactions between different organ types
• High-throughput screening platforms for drug discovery and toxicology testing
• Gene editing approaches to precisely dissect molecular mechanisms of development and disease

In conclusion, 3D organoid systems have transformed our ability to study endodermal patterning and morphogenesis, providing unprecedented access to human-specific developmental processes. By recapitulating key aspects of organogenesis in vitro, these models bridge critical gaps between traditional cell culture, animal models, and human biology. As atlas technologies provide comprehensive benchmarking capabilities and engineering approaches enhance reproducibility and complexity, organoid systems are poised to become increasingly powerful tools for both basic research and translational applications in drug development and regenerative medicine.

The formation of the definitive endoderm (DE) during gastrulation is a cornerstone of embryonic development, producing the foundational epithelium of the respiratory and digestive tracts, as well as organs like the liver and pancreas. While the molecular signaling pathways governing this process, such as Nodal and WNT, have been extensively studied, a burgeoning body of evidence confirms that biophysical cues are equally critical Instructive signals. Historically, gastrulation was viewed as a process driven predominantly by chemical signals. However, advanced experimental models have demonstrated that this pivotal transformation only coalesces when biochemical instructions and mechanical forces act in concert [58]. This technical guide synthesizes current research to provide a framework for exploiting mechanical properties—specifically substrate stiffness and cell shape—to direct stem cell differentiation toward the endodermal lineage, offering a novel dimension to in vitro differentiation protocols for regenerative medicine and drug development.

Quantitative Data on Mechanical Cues for Endoderm Specification

The following tables summarize key experimental findings on the relationship between mechanical properties and endoderm differentiation, providing a reference for designing differentiation platforms.

Table 1: The Role of Substrate Stiffness in Germ Layer Commitment

Stiffness Range (kPa)	Cell Type	Culture Configuration	Lineage Bias	Key Findings	Citation
0.1 - 1 kPa	Human MSCs	2D, Collagen-coated PA	Neurogenic	Phenotype mimics tissue-level elasticity.	[59]
4 - 14 Pa	Mouse ESCs	2D/3D, Fibrin gels	Endoderm	Preferential commitment to endoderm without chemical inducers.	[60]
2.5 - 110 kPa	Human MSCs	3D, Alginate/Agarose	Stiff: OsteogenicSoft: Adipogenic	Integrin binding and myosin contractility required for sensing.	[59]
~1 kPa	Human MSCs	2D, Collagen-coated PA	Myogenic	Stiffer substrates promote myogenesis.	[59]

Table 2: The Interplay of Cell Shape, Contractility, and Lineage Specification

Manipulation	Cell Type	Resulting Lineage	Key Regulators	Proposed Mechanism	Citation
Rounded Morphology	Human MSCs	Adipogenic / Chondrogenic	Low RhoA, Low ROCK	Reduced cytoskeletal tension promotes adipogenesis.	[59]
Spread Morphology	Human MSCs	Osteogenic / Myogenic	High RhoA, High ROCK, High Rac1	Increased cellular tension and contractility promotes osteogenesis/myogenesis.	[59]
N/A	Embryonic Cells (Drosophila)	Mesoderm (during VFF)	Microtubules	A dynamic, transient increase in longitudinal modulus (stiffness) is required for tissue folding.	[61]

Molecular Mechanisms Integrating Mechanics with Endoderm Specification

The process by which a biophysical cue is transduced into a cell fate decision involves a complex network of mechanosensors, signaling pathways, and transcriptional regulators.

From Force to Fate: The Mechanotransduction Cascade

The journey from mechanical sensation to endoderm gene expression involves a well-defined cascade. The initial mechanosensory apparatus comprises integrins, which bind to the extracellular matrix (ECM), and focal adhesions, which assemble at the intracellular interface. Force transmitted through these structures triggers actomyosin-dependent cytoskeletal remodeling, altering cell shape and contractility [59]. A key player in this process is the mechanosensory protein YAP1 (Yes-associated protein 1). In stiff or high-tension environments, YAP1 translocates to the nucleus, where it acts as a co-transcriptional regulator. Crucially, during gastrulation, nuclear YAP1 can function as a molecular brake on the process; its inactivation in response to specific mechanical conditions is permissive for the symmetry-breaking events that define gastrulation [58].

Convergence with Biochemical Signaling

Mechanical signals do not operate in isolation but are fully integrated with core biochemical pathways for endoderm specification. The Nodal signaling pathway, initiated by Activin and transduced by SMAD2/3, is the principal chemical inducer of definitive endoderm [6] [1]. Research indicates that mechanical cues can fine-tune the cellular response to these signals. For instance, the mechanosensitive activity of YAP1 is known to interact with and modulate the WNT and Nodal signaling pathways, thereby influencing the transcriptional output that dictates cell fate [58]. Furthermore, the core pluripotency factor NANOG plays an essential, active role in initiating endoderm specification by controlling the expression of EOMESODERMIN (EOMES), a T-box transcription factor that marks the onset of endoderm formation [6]. EOMES, in turn, cooperates with SMAD2/3 to activate the downstream transcriptional network, including genes like SOX17 and FOXA2, which are definitive markers of the endoderm lineage [6] [1].

Diagram Title: Mechanical and Biochemical Integration in Endoderm Specification

Experimental Protocols for Mechanically Enhanced Differentiation

This section details specific methodologies for establishing and analyzing mechanically modulated differentiation platforms.

Protocol: Fabricating Stiffness-Tunable Fibrin Gels for Endoderm Induction

This protocol is adapted from Zhang et al. for the mechanical induction of endoderm in mouse ESCs [60].

• Objective: To create a range of fibrin hydrogel substrates with controlled stiffness to promote endoderm differentiation of pluripotent stem cells.

• Materials:

  • Fibrinogen (from human plasma)
  • Thrombin (from human plasma)
  • PBS (Phosphate Buffered Saline)
  • 6-well or 24-well tissue culture plates
  • Mouse or Human Pluripotent Stem Cells (mESCs/hESCs/hiPSCs)
  • Base culture medium (without endoderm-inducing growth factors)

• Method:

  • Substrate Preparation: Prepare fibrinogen solutions at varying concentrations (e.g., 1, 2, 4, 8 mg/ml) in PBS. Prepare a thrombin solution at a constant concentration.
  • Cross-linking: To create gels of different stiffness, mix the fibrinogen and thrombin solutions at different cross-linking ratios (e.g., fibrinogen to thrombin ratio of 0.25x, 1x, 2x). This will yield a matrix of conditions with storage moduli ranging from approximately 4 Pa to 247 Pa [60].
  • Gel Formation: Quickly pipette the mixture into the wells of the culture plate and allow it to polymerize at room temperature or 37°C for 30-60 minutes.
  • Cell Seeding: Seed dissociated pluripotent stem cells onto the surface of the pre-formed fibrin gels (2D configuration) or embed them within the gel during polymerization (3D configuration). Culture the cells in a base medium without additional endoderm-inducing growth factors.
  • Culture and Analysis: Maintain cultures for 4 days, refreshing the medium as required. On day 4, analyze cells for endoderm markers.

• Key Analysis: The optimal stiffness for endoderm commitment was found to be in the softer range of 4 - 14 Pa. Confirmation of endoderm differentiation should be performed via:

  • qPCR: For transcripts of Sox17, Foxa2, and Mixl1 [60] [62].
  • Immunofluorescence: For SOX17 and FOXA2 protein expression [6] [60].
  • Flow Cytometry: For the definitive endoderm surface marker CXCR4 [6].

Protocol: Optogenetic Control of Gastrulation-like Events

This advanced protocol, based on work from Brivanlou's group, uses light to precisely control signaling and investigate the role of mechanics [58].

• Objective: To utilize an optogenetic system to activate BMP4 signaling in geometrically confined human stem cells, thereby inducing a gastrulation-like event.

• Materials:

  • Human ESCs engineered with an optogenetic BMP4 switch.
  • Custom optogenetic illumination device.
  • Micropatterned cell culture substrates or tension-inducing hydrogels.
  • CDM-ABFLY defined medium.

• Method:

  • Cell Confinement: Seed optogenetically-engineered hESCs on micropatterned substrates that define tissue geometry, or embed them in hydrogels that provide specific mechanical tension.
  • Precise Activation: Expose the confined cell colonies to a specific wavelength of light to permanently activate the BMP4 gene switch. The location of illumination (e.g., at the colony edge) can be precisely controlled.
  • Observation: Monitor the colonies for the emergence of germ layers. The study found that without proper mechanical confinement and tension, BMP4 activation alone was insufficient to generate definitive mesoderm and endoderm [58].
  • Mechanosensing Analysis: Assess the nuclear localization of YAP1 via immunofluorescence before and after induction to correlate mechanical competence with successful patterning.

Diagram Title: Optogenetic Workflow for Mechanical Competence

The Scientist's Toolkit: Essential Research Reagents and Materials

Table 3: Key Reagent Solutions for Mechanically-Guided Endoderm Differentiation

Reagent / Material	Function / Application	Example / Specification
Tunable Hydrogels	Provides a biocompatible, stiffness-tunable 3D substrate for cell culture and differentiation.	Fibrin Gels [60], Polyacrylamide (PA) Gels [59], Hyaluronic Acid Hydrogels [59]
STEMdiff Definitive Endoderm Kit	A defined, commercial medium system for efficient differentiation of hPSCs to definitive endoderm.	Used as a positive control or base medium to test mechanical enhancement [39].
Vitronectin XF	A defined, xeno-free extracellular matrix coating for feeder-free culture and differentiation of hPSCs.	Provides a consistent adhesion substrate for 2D differentiation studies [39].
Y-27632 (ROCK Inhibitor)	Inhibits Rho-associated kinase (ROCK), reducing cell contractility and apoptosis during passaging.	Useful for studying the role of cytoskeletal tension in fate decisions [59] [39].
Optogenetic BMP4 Switch	Enables precise, spatiotemporal control of BMP4 signaling via light illumination in engineered hPSCs.	Critical for probing the interplay of signaling and mechanics [58].
Anti-CXCR4 Antibody	Marker for definitive endoderm; used for flow cytometry or immunostaining to quantify differentiation efficiency.	Standard validation for successful DE generation [6].
Activin A	Recombinant protein that activates the Nodal/SMAD2/3 pathway, the primary chemical inducer of endoderm.	Used in combination with mechanical cues to enhance differentiation yield [6] [1].
BRL-50481	BRL-50481, CAS:433695-36-4, MF:C9H12N2O4S, MW:244.27 g/mol	Chemical Reagent
Bay 41-4109	Bay 41-4109, CAS:298708-81-3, MF:C18H13ClF3N3O2, MW:395.8 g/mol	Chemical Reagent

Combinatorial signaling plays a pivotal role in directing cell fate decisions during mammalian development. This technical guide examines the precise optimization of BMP4 and activin concentrations to control lineage specification toward definitive endoderm within the context of human gastrulation. We synthesize recent findings from single-cell transcriptomics, live-cell imaging, and mathematical modeling to provide a comprehensive framework for researchers manipulating these signaling pathways. The interplay between these morphogens creates temporal windows of signaling competency that determine developmental trajectory choices, enabling both direct and indirect routes to endoderm formation. This review integrates quantitative data, experimental protocols, and visual signaling pathway representations to establish best practices for controlling lineage outcomes through precise modulation of BMP4 and activin signaling activities.

Definitive endoderm specification represents a critical phase in human gastrulation, establishing the precursor population for vital gut-derived organs including the liver, pancreas, and intestines. Lineage specification requires accurate interpretation of multiple signaling cues, yet how combinatorial signaling histories influence fate outcomes has remained poorly understood until recently [18]. The molecular mechanisms driving essential patterning events in the mammalian embryo involve complex interactions between key signaling pathways, with BMP and activin/TGF-β pathways serving as central regulators [15].

Recent advances in stem cell-based models of human gastrulation have revealed that definitive endoderm arises through lineage convergence—with cells reaching the same terminal fate via distinct developmental trajectories [18]. This phenomenon challenges traditional linear models of differentiation and highlights the importance of signaling concentration thresholds and temporal windows of competency in fate determination. The dual role of BMP4 in particular—inducing mesoderm genes while simultaneously promoting pluripotency exit—underscores the complexity of these regulatory networks [18].

Within this framework, transcription factors such as OTX2 have been identified as crucial regulators that activate endoderm-specific enhancers while suppressing select enhancers of other lineages, allowing timely exit from the primitive streak and correct specification of anterior endoderm [15]. This review integrates these recent discoveries to establish a comprehensive technical guide for optimizing BMP and activin concentrations to control lineage decisions in both research and therapeutic applications.

Quantitative Signaling Optimization

Concentration-Dependent Fate Specification

The relative concentrations of activin and BMP4 create a combinatorial code that dictates trajectory choice during definitive endoderm specification. Cells pass through temporal windows of signaling competency during which the balance of these pathways determines whether differentiation proceeds through a direct route from pluripotency or an indirect route via a mesoderm progenitor state [18].

Table 1: BMP4 and Activin Concentration Ranges for Lineage Specification

Signaling Condition	BMP4 Concentration Range	Activin Concentration Range	Primary Lineage Outcome	Developmental Route
High BMP4 / Low Activin	10-50 ng/mL	0-10 ng/mL	Mesoderm progenitor	Indirect via mesoderm
Low BMP4 / High Activin	0-5 ng/mL	50-100 ng/mL	Definitive endoderm	Direct from pluripotency
Balanced signaling	10-20 ng/mL	20-50 ng/mL	Mixed population	Dual routes active
Sequential treatment	10-20 ng/mL (early)	50-100 ng/mL (late)	Anterior endoderm	Enhanced foregut potential

The efficiency between developmental routes is underpinned by the dual role of BMP4 in inducing mesoderm genes while promoting pluripotency exit [18]. This dual functionality creates a concentration-dependent effect where lower BMP4 levels (0-5 ng/mL) combined with high activin (50-100 ng/mL) promote direct endoderm specification, while higher BMP4 levels (10-50 ng/mL) direct cells toward mesodermal fates.

Temporal Optimization of Signaling Exposure

The timing of signaling exposure is equally critical as concentration for precise lineage control. Research indicates the existence of temporal windows of signaling competency during which cells exhibit differential responsiveness to BMP4 and activin [18].

Table 2: Temporal Signaling Parameters for Definitive Endoderm Specification

Development Stage	Time Window	Critical Signaling Events	Optimal BMP4:Activin Ratio
Pluripotency exit	Days 0-1	Primitive streak induction	1:2 (lower BMP4 emphasis)
Lineage commitment	Days 1-3	Fate specification decision	1:5 (minimal BMP4)
Endoderm maturation	Days 3-5	Anterior-posterior patterning	1:10 (BMP4 withdrawal)
Terminal differentiation	Days 5-7	Organ-specific specialization	Tissue-dependent

The temporal aspects of signaling are particularly important for anterior endoderm specification, where OTX2 has been identified as required for activating a subset of endoderm-specific enhancers and suppressing select enhancers of other lineages [15]. This regulation occurs during specific developmental timeframes that correspond with changing signaling requirements.

Experimental Design and Methodologies

hESC Differentiation Protocol for Definitive Endoderm

The following protocol outlines an efficient, reproducible method for definitive endoderm differentiation from human embryonic stem cells (hESCs) based on combinatorial BMP4 and activin signaling modulation [18] [45].

Initial Cell Preparation:

• Culture naive or primed hESCs in appropriate maintenance medium. For naive AIC-N hESCs, use normoxic conditions with t2iLGö, 5i/LAF, or HENSM media [45].
• Dissociate hESCs to single cells using enzyme-free dissociation buffer.
• Seed cells onto Matrigel-coated dishes at a density of 1.5-2.0 × 10^5 cells per cm² in N2B27 basal medium.

Differentiation Induction:

• Initiate differentiation by switching to modified N2B27 medium supplemented with FGF4 (10-20 ng/mL) and heparin (1 μg/mL) [45].
• Add optimized concentrations of CHIR99021 (CHIR, 3-5 μM) to activate WNT signaling, which synergizes with activin/BMP pathways.
• Implement specific BMP4 and activin concentrations according to desired lineage trajectory (refer to Table 1 for concentration guidelines).
• Culture cells for 4-5 days with daily medium changes to maintain consistent signaling factor concentrations.

Efficiency Assessment:

• Monitor morphological changes from compact colonies to mesenchymal-like cells, typically occurring within 2-4 days.
• Analyze day 4-5 populations via flow cytometry for GATA6 and SNAIL expression (expect >90% double-positive cells) [45].
• Confirm definitive endoderm specification through immunostaining for FOXA2, SOX17, and CXCR4.
• Validate using bulk RNA-seq to document pluripotency marker downregulation (OCT4, NANOG) and endoderm marker upregulation (SOX17, FOXA2, CXCR4).

Signaling Perturbation Experiments

To elucidate the specific roles of BMP4 and activin in lineage decisions, implement targeted perturbation experiments:

Inhibitor Studies:

• Apply BMP receptor inhibitors (e.g., LDN193189 at 100-250 nM) during specific temporal windows to identify BMP-sensitive phases.
• Utilize activin/TGF-β pathway inhibitors (e.g., SB431542 at 10 μM) to determine activin-dependent stages.
• Implement pulsed inhibition strategies (6-24 hour treatments) at different differentiation timepoints to map signaling requirements.

Single-Cell Resolution Analysis:

• Perform scRNA-seq at multiple timepoints (days 0, 1, 2, 3, 4, 5) to track lineage trajectories.
• Use computational trajectory inference tools (e.g., Monocle, PAGA) to reconstruct developmental paths.
• Identify transcriptional signatures distinguishing direct versus indirect endoderm specification routes.

Signaling Pathway Visualization

The signaling network illustrates how BMP4 and activin inputs converge to regulate definitive endoderm specification through both direct and indirect developmental routes. This integrated pathway representation highlights the combinatorial logic underlying fate decisions, where the balance between these signals determines trajectory choice through temporal windows of signaling competency [18].

The Scientist's Toolkit: Essential Research Reagents

Table 3: Key Research Reagents for Combinatorial Signaling Studies

Reagent Category	Specific Examples	Function/Application	Concentration Range
Growth Factors	BMP4 (Human recombinant)	Induces mesoderm genes, promotes pluripotency exit	0-50 ng/mL
	Activin A (Human recombinant)	Promotes definitive endoderm specification	0-100 ng/mL
	FGF4 (Human recombinant)	Synergizes with BMP/activin pathways	10-20 ng/mL
Small Molecule Inhibitors	CHIR99021 (GSK3 inhibitor)	Activates WNT signaling, enhances differentiation	3-5 μM
	LDN193189 (BMP inhibitor)	Blocks BMP signaling for pathway dissection	100-250 nM
	SB431542 (TGF-β/Activin inhibitor)	Inhibits activin signaling for temporal studies	10 μM
Cell Culture Supplements	Heparin	Enhances FGF signaling activity	1 μg/mL
	Matrigel	Provides extracellular matrix for adhesion	Varies by lot
	N2/B27 supplements	Basal medium for defined differentiation	1:100-1:200
Analysis Tools	Flow cytometry antibodies (GATA6, SNAIL)	Quantify differentiation efficiency	Manufacturer specified
	scRNA-seq platforms (10X Genomics)	Resolve lineage trajectories at single-cell level	N/A
	Live-cell imaging systems	Track fate decisions in real-time	N/A
BC11-38	BC11-38, MF:C15H16N2OS2, MW:304.4 g/mol	Chemical Reagent	Bench Chemicals
BDM14471	BDM14471, CAS:934618-96-9, MF:C17H15FN2O3, MW:314.31 g/mol	Chemical Reagent	Bench Chemicals

These essential research reagents enable the precise manipulation and analysis of combinatorial signaling effects on lineage specification. The concentration ranges provided reflect optimized values from recent studies demonstrating efficient definitive endoderm differentiation [18] [45].

Computational and Modeling Approaches

Advanced computational methods have become indispensable for interpreting the complex dynamics of combinatorial signaling in lineage specification. Several approaches have proven particularly valuable:

SignalingProfiler 2.0 for Multi-Omics Data Integration

SignalingProfiler 2.0 represents a newly implemented pipeline designed to draw mechanistic hypotheses from multi-omics data by integrating transcriptomics, proteomics, and phosphoproteomics with prior knowledge networks [63]. This approach:

• Derives context-specific signaling networks by integrating proteogenomic data with prior knowledge-causal networks
• Employs statistical, footprint-based, and graph algorithms to interpret multi-omics data
• Generates hierarchical mechanistic networks recapitulating perturbed signaling and phenotypic outcomes
• Estimates activity of key signaling proteins through footprint-based approaches and PhosphoScore methodology

The application of SignalingProfiler 2.0 to BMP4 and activin signaling studies enables researchers to reconstruct the molecular interactions between modulated signaling proteins and identify regulatory paths linking perturbed nodes to phenotypic outcomes [63].

Mathematical Modeling of Fate Decisions

Mathematical modeling approaches combined with live-cell imaging have revealed how activin and BMP4 signals interact both synergistically and antagonistically to drive fate decisions [18]. These models:

• Capture signal remodeling in response to perturbations
• Identify temporal windows of signaling competency
• Predict trajectory choices based on relative morphogen concentrations
• Quantify the efficiency differences between direct and indirect developmental routes

The integration of modeling with experimental data has been instrumental in uncovering the dual role of BMP4 in inducing mesoderm genes while promoting pluripotency exit, providing a mechanistic explanation for route efficiency differences [18].

The precise optimization of BMP4 and activin concentrations represents a powerful approach for controlling lineage decisions in stem cell-based models of human gastrulation. The combinatorial interpretation of these signals dictates developmental trajectory choices through direct and indirect routes to definitive endoderm, with lineage convergence enhancing robustness in fate specification [18]. The emergence of single-cell technologies, live-cell imaging, and computational modeling approaches has transformed our understanding of these processes, revealing previously unappreciated dynamics in signaling interpretation.

Future research directions should focus on extending these principles to three-dimensional model systems, incorporating additional signaling components such as WNT and FGF pathways, and applying combinatorial signaling optimization to disease modeling and therapeutic development. The continued refinement of protocols for definitive endoderm specification will advance efforts in regenerative medicine, particularly for disorders affecting gut-derived organs including the liver and pancreas.

The in vitro derivation of definitive endoderm (DE) from human pluripotent stem cells (hPSCs) is a critical first step in generating a multitude of cell types for developmental biology, disease modeling, and regenerative medicine. DE gives rise to the epithelial lining of the respiratory and digestive tracts, and organs including the liver, pancreas, thyroid, and prostate [64]. The quality of this initial DE population profoundly influences the efficiency and fidelity of subsequent differentiation into terminal cell types. Within the context of gastrulation research, the precise assessment of DE specification remains a fundamental challenge, necessitating robust, quantifiable biomarkers. The integration of SOX17, FOXA2, and CXCR4 has emerged as a cornerstone biomarker panel for the quality assessment of DE, providing a multifaceted readout of developmental progression, functional capacity, and population purity. This technical guide details the experimental utilization of this tripartite biomarker panel, framing it within the molecular mechanisms of gastrulation and providing standardized protocols for its application in research and drug development.

Biomarker Functions and Signaling Pathways in Endoderm Specification

The specification of definitive endoderm during gastrulation is governed by a highly conserved and intricate signaling network. The core biomarkers SOX17, FOXA2, and CXCR4 are not merely passive indicators but active participants in this process, with their expression and function modulated by key developmental pathways.

Core Signaling Pathways Regulating Biomarker Expression

The following diagram illustrates the primary signaling pathways involved in definitive endoderm specification and how they regulate the expression of the core biomarker panel.

The specification from pluripotent cells to definitive endoderm progresses through a mesendoderm intermediate, driven by high levels of Nodal/Activin signaling which activate SMAD2/3 complexes [64]. This signaling cascade induces key transcription factors like EOMES and T (Brachyury), which are essential for primitive streak and mesendoderm formation. Subsequently, elevated and sustained SMAD2/3 signaling, often in combination with WNT, promotes the expression of SOX17 and FOXA2, which mutually reinforce each other's expression to define the definitive endoderm state [64] [65]. CXCR4, a chemokine receptor, is a direct transcriptional target of SOX17, and its cell surface expression is a hallmark of DE cells capable of migratory behaviors.

Functional Roles of Individual Biomarkers

• SOX17: A high-mobility group (HMG) box transcription factor that is a master regulator of DE specification. It is essential for directing cells toward an endodermal fate and repressing alternative mesodermal and pluripotency programs. Co-expression of SOX17 with FOXA2 is a definitive indicator of DE, as SOX17 alone can also be expressed in extra-embryonic endoderm [64] [66]. Its function is critical for the development of organs derived from the foregut, midgut, and hindgut.

• FOXA2: A pioneer transcription factor that can bind to condensed chromatin and facilitate the opening of chromatin structures for other transcription factors. FOXA2 is expressed in the anterior primitive streak, which gives rise to DE, and is maintained in DE-derived tissues. It works in concert with SOX17 to establish and maintain the DE gene regulatory network [64] [67]. While also expressed in axial mesoderm, its co-expression with SOX17 is a gold standard for DE identification.

• CXCR4: A G-protein coupled receptor that binds to the ligand SDF-1 (CXCL12). Its expression on the cell surface is a key functional marker for DE. It is critical for the directed migration of DE cells during embryonic development [68] [67]. In an in vitro context, CXCR4 is widely used for the fluorescence-activated cell sorting (FACS) of live DE cells, enabling the isolation of a highly pure population for downstream applications.

Quantitative Biomarker Assessment and Experimental Workflow

A rigorous assessment of DE quality requires a multi-parametric approach, quantifying the expression of all three biomarkers across the population. The following table summarizes the key characteristics and quantitative benchmarks for each biomarker.

Table 1: Key Biomarkers for Definitive Endoderm Quality Assessment

Biomarker	Biomarker Type	Expression Localization	Expected Expression in High-Quality DE	Primary Assessment Method
SOX17	Transcription Factor	Nuclear	>70% of population [68]	Immunocytochemistry, Flow Cytometry
FOXA2	Pioneer Transcription Factor	Nuclear	>70% of population (co-expressed with SOX17) [64]	Immunocytochemistry, Flow Cytometry
CXCR4	Chemokine Receptor	Cell Surface	>80% of population [68]	Flow Cytometry (FACS)

Standardized Experimental Workflow for DE Differentiation and Assessment

The process of differentiating hPSCs to DE and validating the resulting cells with the biomarker panel follows a controlled, time-sensitive workflow. The following diagram outlines the key stages from cell culture preparation to final analysis.

Protocol 1: Directed Differentiation of hPSCs to Definitive Endoderm

This protocol is adapted from established methods using activin A [64] [68].

• Culture and Preparation of hPSCs: Maintain hPSCs in a pluripotent state using feeder-free conditions on growth factor-reduced Matrigel. For differentiation, seed cells at a high density (e.g., 1.5x10^5 cells/cm²) and allow them to reach near-confluency (≥90%).
• Initiation of Differentiation (Day 0): Replace the pluripotency medium with RPMI 1640 medium supplemented with B-27 (without vitamin A) and 100 ng/mL activin A. For the first 24 hours, include 2-3 ng/mL of Wnt3a or a GSK3β inhibitor (e.g., CHIR99021) to promote primitive streak formation.
• DE Specification (Days 1-4): On day 1, switch to RPMI/B-27 medium containing 100 ng/mL activin A only. Continue this medium change daily for the next three days. Cell morphology should transition from compact colonies to a more uniform, elongated epithelium.

Protocol 2: Immunocytochemical (ICC) Analysis of SOX17 and FOXA2

• Sample Fixation and Permeabilization (Day 5): On day 5 of differentiation, wash cells with PBS and fix with 4% paraformaldehyde for 15 minutes at room temperature. Permeabilize and block cells using a solution of 0.1% Triton X-100 and 5% normal serum (from the same species as the secondary antibody) in PBS for 1 hour.
• Antibody Staining: Incubate cells with primary antibodies diluted in blocking buffer overnight at 4°C.
  • Recommended primary antibodies: Mouse anti-SOX17 (1:100-1:200), Rabbit anti-FOXA2 (1:200-1:500).
• Detection: The following day, wash cells and incubate with fluorophore-conjugated secondary antibodies (e.g., Alexa Fluor 488, 555) for 1 hour at room temperature. Include DAPI for nuclear counterstaining.
• Imaging and Quantification: Image using a fluorescence or confocal microscope. Co-expression of SOX17 and FOXA2 should be assessed in multiple random fields, with the goal of >70% of DAPI+ nuclei being positive for both markers.

Protocol 3: Flow Cytometric Analysis of CXCR4 and Intracellular SOX17/FOXA2

• Cell Harvest and Staining for CXCR4 (Live Cell): On day 5, dissociate cells to a single-cell suspension using a gentle cell dissociation reagent. Wash cells in FACS buffer (PBS + 2% FBS). Incubate with an anti-CXCR4 antibody conjugated to a fluorophore (e.g., APC) for 30-45 minutes on ice. Protect from light.
• Intracellular Staining for SOX17/FOXA2: After surface staining, fix and permeabilize cells using a commercial intracellular staining kit. Incubate with antibodies against SOX17 and FOXA2 (if compatible, directly conjugated to different fluorophores than CXCR4) for 30-60 minutes.
• Data Acquisition and Analysis: Analyze cells on a flow cytometer. A high-quality differentiation should yield >80% CXCR4+ cells, with the majority of these cells also positive for SOX17 and FOXA2.

Advanced Applications and Tipping Point Analysis

The SOX17/FOXA2/CXCR4 panel is not only useful for quality control but also for probing the mechanisms of development and toxicity. For instance, it can be used to identify a "toxicological tipping point"—the concentration of a chemical at which the DE developmental trajectory is irreversibly shifted.

Table 2: Example Tipping Point Analysis Using ATRA Exposure [64]

Exposure Parameter	Experimental Condition	Effect on DE Biomarkers	Interpretation
Chemical	All-trans Retinoic Acid (ATRA)		Known teratogen
Concentration Range	0.001 μM to 10 μM
Tipping Point Concentration	17 ± 11 nM	Significant shift in gene expression patterns; reduced SOX17+ population	Point of developmental trajectory disruption
Context	Between endogenous human RA levels and teratogenic drug levels		Demonstrates model sensitivity

The table above summarizes a study that exposed differentiating hiPSC-derived endoderm to ATRA. By assessing FOXA2 protein expression and global transcriptomic changes, a tipping point of 17 ± 11 nM was identified, demonstrating the system's sensitivity for detecting teratogenic effects at environmentally and clinically relevant concentrations [64].

The Scientist's Toolkit: Essential Research Reagents

The following table catalogs key reagents required for implementing the DE differentiation and quality assessment protocols described in this guide.

Table 3: Essential Research Reagents for DE Differentiation and Biomarker Analysis

Reagent Category	Specific Example	Function in Protocol	Critical Notes
Induction Factors	Activin A (100 ng/mL)	Mimics Nodal signaling; primary inducer of DE [64] [68]	Use in defined, serum-free media for consistency
	Wnt3a or CHIR99021 (2-3 ng/mL)	Initiates primitive streak formation	Critical only for first 24 hours
Cell Culture Matrix	Growth Factor-Reduced Matrigel	Provides a defined substrate for hPSC attachment and differentiation	Batch variability should be considered
Key Antibodies	Anti-CXCR4-APC	Live cell surface staining for FACS analysis	Enables purification of live DE cells
	Anti-SOX17 (mouse monoclonal)	Immunostaining and intracellular flow cytometry	Confirm specificity for definitive, not extra-embryonic, endoderm
	Anti-FOXA2 (rabbit polyclonal)	Immunostaining and intracellular flow cytometry	Co-staining with SOX17 is definitive for DE
Validation Tools	HDE1 & HDE2 Monoclonal Antibodies [68]	Novel surface markers for flow cytometric tracking of endoderm induction and hepatic specification	HDE1 broadly stains DE with high hepatic potential
	Daf1 (CD55) Antibody [67]	Surface marker for late-stage, slow-cycling DE with low adhesive capacity	Distinguishes early (Daf1-) and late (Daf1+) DE

The combined use of SOX17, FOXA2, and CXCR4 represents a robust and essential biomarker panel for the quantitative assessment of definitive endoderm derived from hPSCs. This panel interrogates multiple regulatory levels: master transcriptional control (SOX17), pioneer factor activity (FOXA2), and functional cell surface properties (CXCR4). The standardized protocols and benchmarks outlined in this guide provide a framework for researchers to consistently generate high-quality DE populations, crucial for advancing gastrulation research, disease modeling, and the development of cell-based therapies. As the field progresses, integrating these core markers with novel tools like optogenetic models [69] and cell-cycle synchronized systems [65] will further deepen our understanding of human endodermal specification.

Overcoming Experimental Hurdles: Strategies for Enhanced Endoderm Purity and Efficiency

The efficient and reproducible differentiation of pluripotent stem cells into definitive endoderm (DE) is a cornerstone of developmental biology, disease modeling, and cell therapy research. This process is exquisitely controlled by the coordinated activities of the Transforming Growth Factor-β (TGF-β) and WNT signaling pathways. This technical guide provides a detailed framework for systematically optimizing the timing and concentration of TGF-β and WNT pathway agonists during DE specification. Grounded in the principles of gastrulation, the protocols herein are designed to empower researchers to achieve robust, high-yield DE differentiation by mimicking the endogenous signaling dynamics that govern germ layer formation in the embryo.

During gastrulation, epiblast cells are patterned into the three primary germ layers—ectoderm, mesoderm, and definitive endoderm. The definitive endoderm gives rise to the epithelial lining of the digestive and respiratory tracts, and organs including the liver, pancreas, and thyroid [1]. The specification of DE is directed by key morphogen signals, with Nodal (a member of the TGF-β superfamily) and canonical WNT acting as primary inducters [1] [3].

• TGF-β/Nodal Signaling: Nodal signaling, transduced through SMAD2/3 proteins, is a master regulator of endoderm and mesoderm formation. The level and duration of Nodal signaling instruct cell fate, with higher signaling peaks favoring endoderm specification over mesoderm [1].
• Canonical WNT Signaling: The canonical WNT pathway, culminating in the stabilization and nuclear translocation of β-catenin, is indispensable for the formation of the primitive streak, from which the DE emerges. WNT signaling directly activates the expression of Nodal, creating a positive feedback loop that reinforces mesendodermal fate [1] [70].
• Signaling Cross-Talk: The pathways do not operate in isolation. TGF-β and WNT signaling engage in extensive cross-talk; for instance, TGF-β can activate β-catenin signaling via SMAD3 and through the downregulation of WNT antagonists like Dickkopf-1 (DKK1) [71] [72]. Furthermore, during gastrulation, DE formation occurs via a Snail1-independent epithelial plasticity rather than a full epithelial-to-mesenchymal transition (EMT), a process safeguarded by the transcription factor Foxa2, which acts as an EMT suppressor [3]. This nuanced understanding of the underlying cell biology is critical for designing effective differentiation protocols.

Foundational Molecular Mechanisms

A deep understanding of the molecular machinery of TGF-β and WNT signaling is a prerequisite for rational protocol design.

TGF-β Signal Transduction

TGF-β ligands, including the commonly used TGF-β1 and the physiologically relevant Activin A (a Nodal mimic), signal through a well-defined pathway:

• Synthesis and Activation: TGF-β ligands are secreted in a latent complex. For experimental activation, recombinant ligands like Activin A are used directly, bypassing the need for extracellular activation [73] [74].
• Receptor Binding and SMAD Activation: The ligand binds to a complex of type I (e.g., ALK4, ALK5) and type II serine/threonine kinase receptors. This leads to the phosphorylation of receptor-regulated SMADs (R-SMADs: SMAD2/3) [73] [74].
• Transcriptional Regulation: Phosphorylated R-SMADs form a complex with SMAD4 and translocate to the nucleus, where they regulate the transcription of key genes, including FOXA2 and SOX17, which are master regulators of DE fate [73] [74].

WNT/β-Catenin Signal Transduction

The canonical WNT pathway's status is determined by the cytoplasmic level of β-catenin:

• Off-State (No WNT ligand): In the absence of a WNT signal, β-catenin is constitutively phosphorylated by a destruction complex containing Axin, APC, and GSK-3β. This tags it for ubiquitination and proteasomal degradation [75] [70].
• On-State (WNT ligand present): Binding of a WNT ligand (e.g., WNT3a) to Frizzled and LRP5/6 receptors disrupts the destruction complex. This stabilizes β-catenin, allowing it to accumulate and enter the nucleus. There, it partners with TCF/LEF transcription factors to activate target genes such as BRACHYURY (T) and NODAL [75] [70].

The following diagram illustrates the core components and interactions of these two critical signaling pathways.

Systematic Optimization Parameters

Optimizing DE differentiation requires careful titration of both signal concentration and the timing of their application. The tables below summarize key parameter ranges and their biological effects, derived from the literature and experimental observations.

Table 1: Optimization of TGF-β/Activin A Signaling

Parameter	Typical Range	Biological Effect & Rationale	Key Readouts
Concentration	10 - 100 ng/mL	Higher concentrations (e.g., 100 ng/mL) typically favor definitive endoderm specification by mimicking high Nodal signaling peaks found in the embryo. Lower doses may result in mixed mesendodermal populations.	• Nuclear SMAD2/3• FOXA2 expression• SOX17 expression
Timing & Duration	Initiation: Day 0Duration: 3-5 days	Continuous presence is required during the initial priming and specification phases. Withdrawal after day 3-5 allows progression to foregut/midgut/hindgut patterning.	• Loss of pluripotency (OCT4 downregulation)• BRACHYURY transient expression• Sustained FOXA2/SOX17
Serum/Conditions	Low serum (0-2%)	Essential to prevent serum-derived factors like Albumin from sequestering Activin A and inhibiting signaling.	>90% FOXA2+ cells

Table 2: Optimization of WNT Signaling

Parameter	Typical Range	Biological Effect & Rationale	Key Readouts
Concentration (CHIR)	1 - 10 µM	Concentration must be titrated for each cell line. Sub-optimal doses fail to induce primitive streak fate. Excessively high doses can be toxic and promote non-endodermal fates.	• Nuclear β-catenin• BRACHYURY (T) expression• Cell viability
Critical Timing	Priming (Day -1 to 0) and/or Co-stimulation (Day 0+)	A pulse of WNT signaling prior to (priming) or concurrent with the initiation of TGF-β/Activin A signaling is critical for efficient exit from pluripotency and induction of primitive streak/mesendodermal progenitors. Prolonged exposure must be tested systematically.	• Efficient OCT4 downregulation• Robust induction of BRACHYURY and FOXA2

The interplay of these two pathways over time can be conceptualized as a multi-stage process, as illustrated in the following experimental workflow.

Detailed Experimental Protocols

Core Definitive Endoderm Differentiation Protocol

This protocol serves as a baseline for human pluripotent stem cell (hPSC) differentiation towards DE.

Key Reagent Solutions:

• Basal Medium: RPMI 1640 or DMEM/F-12
• TGF-β Agonist: Recombinant Human Activin A (PeproTech, R&D Systems)
• WNT Agonist: CHIR99021 (Tocris) or Recombinant Human WNT3a (R&D Systems)
• Small Molecule Inhibitors: Where required for optimization, SB431542 (ALK5 inhibitor) or IWP-2 (WNT inhibitor) may be used.

Procedure:

• Culture hPSCs: Maintain hPSCs in a state of naive pluripotency using feeder-free or feeder-dependent conditions until ~80% confluent.
• Day -1 to 0: WNT Priming (Optional but often critical): Replace medium with basal medium containing a titrated concentration of CHIR99012 (e.g., 3-6 µM) for 24 hours.
• Day 0: Initiate Differentiation: Switch to differentiation medium (Basal medium supplemented with:
  • Activin A: 100 ng/mL
  • CHIR99021: A lower concentration (e.g., 1-3 µM) if co-stimulation is desired, based on the priming experiment results.
  • 0.2% FBS or BSA: The low serum concentration is critical for Activin A activity.
• Days 1-3: Continue Differentiation: Refresh the differentiation medium daily with Activin A (100 ng/mL) and, if used, without CHIR99021 after day 1-2 to mimic the endogenous decline in WNT signaling.
• Day 3-5: Assess Differentiation Efficiency: Harvest cells for analysis. A successful differentiation should yield >80% FOXA2+/SOX17+ cells by flow cytometry or immunocytochemistry.

Protocol for Testing TGF-β and WNT Concentration Matrix

This systematic approach identifies the optimal combination for a specific cell line.

• Prepare a WNT Agonist Dilution Series: Prepare CHIR99021 in a 96-well plate with concentrations spanning 0, 1, 3, 6, and 10 µM.
• Prepare a TGF-β Agonist Dilution Series: Prepare Activin A in the same plate with concentrations spanning 0, 10, 30, 50, and 100 ng/mL, creating a full factorial matrix.
• Seed hPSCs: Seed hPSCs as single cells into the pre-dosed 96-well plate.
• Differentiate and Analyze: Differentiate the cells for 4 days, refreshing media with the respective concentrations daily. On day 4, fix and stain for FOXA2 and SOX17. Quantify the percentage of double-positive cells using high-content imaging or flow cytometry.
• Data Analysis: Plot the results in a 3D contour plot (Activin A concentration x CHIR concentration x % FOXA2+/SOX17+) to identify the peak efficiency "sweet spot."

The Scientist's Toolkit: Essential Research Reagents

Table 3: Key Reagents for DE Differentiation Research

Reagent Category	Specific Examples	Function & Application
TGF-β Agonists	Recombinant Human Activin A	Gold-standard for mimicking Nodal signaling to induce DE. Used at high concentrations (10-100 ng/mL).
WNT Agonists	CHIR99021 (GSK-3β inhibitor), Recombinant WNT3a	Activates canonical WNT signaling. CHIR99021 is a cost-effective and stable small molecule used for priming and co-stimulation (1-10 µM).
Small Molecule Inhibitors	SB431542 (ALK4/5/7 inhibitor), IWP-2 (WNT production inhibitor)	Used to probe pathway necessity or to fine-tune signaling dynamics in optimization experiments.
Key Antibodies	Anti-FOXA2, Anti-SOX17, Anti-BRACHYURY (T), Anti-OCT4, Anti-phospho-SMAD2/3	Critical for assessing differentiation efficiency via immunocytochemistry, flow cytometry, or western blot.
Cell Lines & Reporters	FOXA2-Venus, SOX17-mCherry knock-in mESC lines [3]	Enable real-time, live-cell tracking of endoderm specification and high-resolution fate mapping.

The robust specification of definitive endoderm from pluripotent stem cells is a process exquisitely sensitive to the dynamics of TGF-β and WNT signaling. By moving beyond static, "one-size-fits-all" protocols and adopting a systematic approach to varying the timing and concentration of these key morphogens—as outlined in this guide—researchers can achieve new levels of efficiency and reproducibility. The foundational principles of gastrulation, particularly the concept of signaling cross-talk and the distinct cellular mechanisms of germ layer formation, provide a critical roadmap for this optimization. Mastering these protocols paves the way for advanced disease modeling, drug screening, and the generation of functional endodermal lineages for regenerative medicine.

The proper specification of definitive endoderm (DE) is a cornerstone of mammalian development, giving rise to the epithelial lining of the respiratory and gastrointestinal tracts and associated vital organs such as the liver, pancreas, and thyroid [76]. Conversely, extra-embryonic endoderm (ExE) forms supportive structures like the yolk sacs but does not contribute to embryonic organs [76]. In both developmental biology and stem cell differentiation research, accurately distinguishing between these lineages remains a fundamental challenge with significant implications for studying organogenesis and developing cell-based therapies. This lineage confusion stems from shared developmental origins and overlapping marker expression, which can compromise the purity of differentiated populations and lead to misinterpretation of experimental results. Within the broader context of gastrulation research, understanding the mechanisms that govern DE specification is essential for unraveling the complex signaling and morphogenetic events that pattern the early embryo. This technical guide provides a comprehensive framework for distinguishing these lineages through specific molecular markers, detailed experimental protocols, and essential reagent solutions, enabling researchers to achieve unprecedented precision in endoderm lineage identification and isolation.

Molecular Marker Profiles: Distinguishing Definitive and Extra-Embryonic Endoderm

Transcription Factors and Intracellular Markers

The most reliable distinction between definitive and extra-embryonic endoderm comes from their characteristic transcription factor expression profiles. While both lineages express key endodermal regulators, specific combinations provide definitive identification.

Table 1: Transcription Factor Markers for Distinguishing Endoderm Lineages

Marker	Definitive Endoderm	Extra-Embryonic Endoderm	Notes and Specificity
SOX17	Strong nuclear expression [77] [78]	Expressed [68]	Requires additional markers for lineage specification
FOXA2	Strong nuclear expression [78] [79]	Not detected or low	Definitive endoderm marker [79]
SOX7	Low or absent expression [78]	Highly expressed [68]	Specific for extra-embryonic endoderm [78]
GATA4	Present in committed primitive endoderm [77]	Present [77]	Marker for primitive/extra-embryonic endoderm lineage
GATA6	Present in early precursors [77]	Present [45]	Early endoderm specification marker
AFP	Not detected [78]	Highly expressed [68]	Visceral endoderm marker

The critical distinction lies in the combination of SOX17/FOXA2 co-expression for definitive endoderm versus SOX17/SOX7 co-expression for extra-embryonic endoderm. As demonstrated in studies of human embryonic stem cell differentiation, definitive endoderm populations show almost all cells co-expressing both SOX17 and FOXA2 proteins with strong nuclear staining [78]. Conversely, SOX7 serves as a specific marker for visceral and parietal endoderm, with lower SOX7 expression detected in definitive endoderm populations relative to untreated controls [78].

Cell Surface Markers and Immunodetection

Cell surface markers provide indispensable tools for live cell isolation and purification without requiring fixation. Recent antibody development has yielded more specific reagents for distinguishing endoderm lineages.

Table 2: Surface Markers for Endoderm Lineage Identification and Isolation

Marker	Definitive Endoderm	Extra-Embryonic Endoderm	Application Notes
CXCR4 (CD184)	Highly expressed [78] [68] [79]	Low expression	Used in combination with other markers for DE isolation
CD117 (KIT)	Highly expressed [68]	Variable	Not endoderm-specific
EPCAM	Highly expressed [68]	Variable	Epithelial cell adhesion marker
HDE1	Uniformly positive [68]	Small subpopulation positive	Monoclonal antibody specific for DE with high hepatic potential
HDE2	Small subpopulation positive [68]	Not detected	Tracks developing hepatocyte progenitors
Integrin αV/β5	Highly expressed [78]	Not characterized	Binds vitronectin; upregulated in DE
Integrin α6/β1	Downregulated [78]	Not characterized	Laminin-binding; pluripotency-related

The HDE1 and HDE2 antibodies represent particularly significant advances for definitive endoderm identification. HDE1 broadly stains the entire definitive endoderm population and is induced from all hPSC lines tested, with uniform HDE1+ populations showing greatest efficiency at generating hepatic progeny [68]. HDE2 displays a more restricted pattern, staining only a subpopulation of early endoderm that varies between different hPSC lines, and subsequently tracking with developing hepatocyte progenitors and hepatocytes [68].

Experimental Protocols for Lineage Discrimination

Definitive Endoderm Differentiation from Pluripotent Stem Cells

The efficient generation of definitive endoderm from human pluripotent stem cells (hPSCs) requires precise control of signaling pathways. The following protocol achieves high-efficiency DE differentiation (>90% FOXA2+/SOX17+ cells) based on established methodologies [79]:

Stage I: Definitive Endoderm Induction (4 days)

• Culture Format: Use feeder-free conditions on Matrigel or laminin-coated surfaces [78]
• Day 0: Seed hPSCs as single cells with Y-27632 ROCK inhibitor (10 μM)
• Day 1-4: Treat with Activin A (100 ng/mL) combined with CHIR99021 (3 μM) for canonical Wnt pathway activation [79]
• Day 1-2: Include wortmannin (1 μM) as a PI3K inhibitor to enhance differentiation efficiency
• Basal Medium: Use RPMI 1640 supplemented with B27 minus insulin
• Quality Control: Monitor for emergence of CXCR4+/SOX17+/FOXA2+ cells with minimal SOX7+ contamination

This combination of Activin A with CHIR99021 and wortmannin has been shown to synergistically induce DE cells from hPSCs, with the percentage of FOXA2+/SOX17+ cells reaching 91.6 ± 0.3% of total cells [79].

Flow Cytometry Analysis for Lineage Discrimination

Multiparameter flow cytometry provides the most reliable quantification of definitive versus extra-embryonic endoderm populations:

Sample Preparation:

• Harvest cells using gentle cell dissociation reagent
• Stain live cells with surface marker antibodies: CXCR4-APC, HDE1-FITC (or HDE2-PE)
• Fix and permeabilize cells using standard intracellular staining protocols
• Stain intracellular markers: SOX17-PE/Cy7, FOXA2-Alexa Fluor 647, SOX7-Pacific Blue

Gating Strategy and Analysis:

• Gate on viable cells using forward/side scatter and viability dye exclusion
• Select CXCR4+ population to enrich for endodermal cells
• Within CXCR4+ population, identify definitive endoderm as SOX17+FOXA2+SOX7-
• Identify extra-embryonic endoderm as SOX17+SOX7+FOXA2-
• For surface marker-only staining, definitive endoderm is HDE1+CXCR4+ with minimal HDE2+ cells in early differentiation

This approach allows for precise quantification of lineage purity and identification of contaminating populations. The kinetic analysis of definitive endoderm induction shows that HDE1+ cells emerge within 2 days of differentiation, with proportions increasing dramatically over the following 24 hours to represent almost 90% of the population by day 5 of differentiation [68].

Immunocytochemistry and Microscopic Analysis

For spatial characterization of endoderm lineages:

• Culture cells on glass coverslips coated with Matrigel or laminin
• Fix with 4% paraformaldehyde for 15 minutes at room temperature
• Permeabilize with 0.1% Triton X-100 for 10 minutes
• Block with 3% BSA in PBS for 30 minutes
• Incubate with primary antibodies: anti-SOX17 (1:200), anti-FOXA2 (1:200), anti-SOX7 (1:100)
• Use species-appropriate fluorescent secondary antibodies (1:500)
• Counterstain with DAPI and mount for imaging
• Analyze for co-localization: definitive endoderm shows SOX17+FOXA2+ nuclear staining, while extra-embryonic endoderm shows SOX17+SOX7+ staining

This protocol has been validated in multiple hESC lines, showing that almost all treated cells co-express both SOX17 and FOXA2 protein with strong nuclear staining in definitive endoderm conditions [78].

Signaling Pathways and Developmental Mechanisms

The specification of definitive versus extra-embryonic endoderm is governed by distinct signaling pathways during development. Understanding these mechanisms provides context for interpreting marker expression patterns.

Signaling Pathways Governing Endoderm Specification

The schematic above illustrates the key signaling pathways and transcriptional regulators that guide lineage specification. Modulation of BMP, WNT, and Nodal signaling pathways can efficiently induce differentiation of both naive and primed hESCs, with definitive endoderm specification predominantly proceeding through intermediates exhibiting a primitive streak-like gene expression pattern [45]. Studies have revealed that extra-embryonic mesoderm specification from hESCs shows similar dependency on these pathways, highlighting the shared developmental origins but distinct outcomes of these lineages [45].

Recent research has identified novel mechanical regulation in endoderm specification. Cell size gradually decreases during DE differentiation, with application of hypertonic pressure to accelerate reduction in cell size significantly enhancing DE differentiation through actomyosin-dependent angiomotin (AMOT) nuclear translocation, which suppresses Yes-associated protein (YAP) activity [54]. This mechanical dimension adds an important layer to the biochemical signaling pathways traditionally studied in endoderm specification.

The Scientist's Toolkit: Essential Research Reagents

Table 3: Research Reagent Solutions for Endoderm Lineage Studies

Reagent Category	Specific Products	Application and Function
Culture Matrices	Matrigel, Laminin, Vitronectin XF	Feeder-free culture substrate supporting hPSC growth and differentiation [78] [39]
Differentiation Kits	STEMdiff Definitive Endoderm Kit	Defined, animal component-free medium for differentiation of hESCs/iPSCs to DE [39]
Cytokines/Factors	Activin A, Wnt3a, BMP4, FGF4	Key signaling molecules directing lineage specification [45] [79]
Small Molecules	CHIR99021 (Wnt activator), Y-27632 (ROCKi), Wortmannin (PI3Ki)	Enhance differentiation efficiency and cell survival [79]
Critical Antibodies	Anti-SOX17, Anti-FOXA2, Anti-SOX7, HDE1, HDE2, Anti-CXCR4	Lineage identification and purification [78] [68]
Dissociation Reagents	Gentle Cell Dissociation Reagent	Enzyme-free cell dissociation maintaining viability [39]

Experimental Workflow for Comprehensive Lineage Analysis

The following diagram outlines a integrated workflow for definitive endoderm differentiation and validation:

This workflow emphasizes critical quality control checkpoints to validate successful definitive endoderm differentiation while minimizing extra-embryonic endoderm contamination. The HDE1+ population is particularly important to isolate, as it marks a definitive endoderm population with high hepatic potential [68].

The precise discrimination between definitive and extra-embryonic endoderm lineages is essential for advancing our understanding of early development and improving differentiation protocols for regenerative medicine applications. By employing the specific marker panels, experimental protocols, and quality control measures outlined in this technical guide, researchers can effectively navigate the challenges of lineage confusion. The integration of transcriptional factor analysis with emerging surface markers such as HDE1 and HDE2 provides a multi-dimensional approach to lineage verification. Furthermore, attention to both biochemical and biomechanical aspects of endoderm specification—including the recently identified role of cell size diminution in promoting DE differentiation through the AMOT-YAP axis [54]—offers new avenues for optimizing differentiation efficiency. As gastrulation research continues to evolve, these refined approaches to lineage distinction will prove invaluable for modeling human development and generating functional endodermal derivatives for therapeutic applications.

Within the broader context of definitive endoderm specification mechanisms in gastrulation research, the physical properties of cells are increasingly recognized as active regulators of developmental fate. While extensive research has focused on biochemical signaling pathways and transcription factor networks governing germ layer patterning, emerging evidence indicates that cellular biophysical characteristics, including cell size, play crucial instructive roles in cell fate determination. Recent studies have established that cell size is a crucial physical property that significantly impacts cellular physiology and function, yet its influence on stem cell specification remains largely unknown [54]. During gastrulation, the process whereby the three primary germ layers—ectoderm, mesoderm, and endoderm—are established, cells undergo dramatic morphological transformations, suggesting potential functional significance for these physical changes. This technical guide explores the mechanistic relationship between cell size diminution and enhanced definitive endoderm differentiation, focusing specifically on the application of hypertonic pressure as a method to manipulate cell size and thereby improve differentiation efficiency for research and therapeutic applications.

Mechanistic Basis: How Cell Size Influences Endoderm Specification

Cell Size Dynamics During Endoderm Differentiation

The differentiation of human pluripotent stem cells into definitive endoderm is accompanied by progressive cell size reduction. Research utilizing flow cytometry forward scatter analysis, Coulter counter measurements, and three-dimensional confocal imaging has quantitatively demonstrated that definitive endoderm cells exhibit significantly smaller size compared to undifferentiated embryonic stem cells [54]. Time-course analysis reveals a gradual decrease in cell size throughout the differentiation process, with a progressive increase in the proportion of cells with small size and a corresponding decrease in large cells [54]. This size reduction occurs alongside changes in cell mechanical state, including increased cell stiffness and altered expression of integrins, focal adhesion components, actomyosin cytoskeleton elements, and mechanosensitive ion channels [54].

The relationship between cell size and differentiation capacity extends beyond mere correlation. Functional experiments demonstrate that smaller cells exhibit enhanced competence for endoderm differentiation, suggesting that size reduction is not merely a consequence but potentially a contributing factor to fate specification [54]. This relationship appears specific to endodermal lineage, as ectoderm differentiation follows a different size pattern, with ectodermal cells becoming significantly larger than embryonic stem cells [54].

Molecular Mechanism: From Physical Compression to Transcriptional Regulation

The enhancement of endoderm differentiation through cell size manipulation operates through a mechanotransduction pathway that converts physical cues into biochemical signals and ultimately transcriptional changes that promote endodermal fate. The primary mechanism involves:

• Hypertonic Pressure Application: External osmotic pressure induces rapid cell size reduction through water efflux.
• Actomyosin Activation: The physical compression triggers actomyosin cytoskeleton remodeling and activity.
• AMOT Nuclear Translocation: Actomyosin activity promotes the nuclear translocation of angiomotin (AMOT).
• YAP Activity Suppression: Nuclear AMOT suppresses Yes-associated protein (YAP) activity, a known regulator of cell proliferation and fate.
• Endoderm Gene Expression: YAP inhibition facilitates the activation of the endoderm differentiation program [54].

This mechanical regulation of cell fate occurs in parallel to established biochemical induction methods, providing a complementary approach to enhance differentiation efficiency.

Figure 1: Signaling Pathway of Hypertonic Pressure-Mediated Endoderm Differentiation. Hypertonic pressure and chemical inducers initiate cell size reduction, triggering a mechanotransduction cascade involving actomyosin activity, AMOT nuclear translocation, and YAP suppression that ultimately enhances endoderm differentiation.

Experimental Implementation: Protocols and Methodologies

Core Differentiation Protocol with Hypertonic Enhancement

The baseline definitive endoderm differentiation protocol utilizes established methods with specific modifications to incorporate hypertonic pressure treatment. The foundational approach involves culturing human pluripotent stem cells in RPMI-1640 medium supplemented with Activin A (100 ng/ml) under serum-free or low-serum conditions [80]. The protocol typically spans three days with progressively increasing concentrations of specific supplements. The integration of hypertonic pressure enhancement involves the following key methodological considerations:

• Timing of Application: Hypertonic treatment is most effective when applied during the initial phase of differentiation, coinciding with the onset of cell fate commitment.
• Osmotic Pressure Range: Effective hypertonic conditions typically range from moderate increases in osmolarity (50-100 mOsm above standard culture conditions) to more significant elevations, with optimal concentration determined empirically for specific cell lines.
• Duration of Exposure: Protocols may utilize continuous hypertonic exposure throughout the differentiation process or pulsed treatments at specific differentiation windows.
• Combinatorial Approaches: Hypertonic pressure can be combined with chemical inducers that similarly promote cell size reduction for synergistic effects [54].

The differentiation efficiency is typically assessed by flow cytometry analysis of definitive endoderm markers FOXA2, SOX17, and CXCR4, with parallel quantification of pluripotency marker downregulation (e.g., OCT4) [80].

Quantitative Assessment of Differentiation Efficiency

The application of hypertonic pressure produces measurable improvements in definitive endoderm differentiation efficiency. The following table summarizes key quantitative findings from experimental investigations:

Table 1: Quantitative Effects of Hypertonic Pressure on Endoderm Differentiation

Experimental Condition	Efficiency Metric	Result	Control Baseline	Reference
Standard Protocol	FOXA2/SOX17+ Cells	~70-80%	~45-60%	[80]
Hypertonic Pressure	FOXA2/SOX17+ Cells	Significantly Enhanced	Standard Protocol	[54]
Chemical Compression	FOXA2/SOX17+ Cells	Significantly Enhanced	Standard Protocol	[54]
Standard Protocol	Cell Size Reduction	Progressive decrease	Larger ESC size	[54]
Hypertonic Pressure	Cell Size Reduction	Accelerated	Standard differentiation	[54]
Hypertonic Pressure	YAP Activity	Suppressed	Higher in controls	[54]

The data demonstrate that hypertonic pressure not only accelerates the natural cell size reduction that occurs during endoderm differentiation but also significantly enhances the efficiency of definitive endoderm generation, as measured by marker expression.

Experimental Workflow for Hypertonic Enhancement

A comprehensive experimental approach for implementing hypertonic pressure in endoderm differentiation involves multiple stages from initial cell preparation through final analysis, as visualized in the following workflow:

Figure 2: Experimental Workflow for Hypertonic Pressure-Enhanced Endoderm Differentiation. The diagram outlines key stages from human pluripotent stem cell culture through definitive endoderm generation, highlighting the integration of hypertonic treatment and associated analytical methods.

The Scientist's Toolkit: Essential Research Reagents and Materials

Successful implementation of hypertonic pressure-mediated endoderm differentiation requires specific reagents and materials. The following table details essential components and their functions within the experimental paradigm:

Table 2: Essential Research Reagents for Hypertonic Endoderm Differentiation Protocols

Reagent/Material	Function/Application	Specifications	Alternative/Options
Human Pluripotent Stem Cells	Differentiation starting population	Validated pluripotency, normal karyotype	Embryonic stem cells, induced pluripotent stem cells
Activin A	Primary differentiation inducer	100 ng/ml in RPMI-1640	Nodal, related TGF-β family members
Osmotic Modulators	Hypertonic pressure induction	NaCl, sucrose, or other osmolytes	Chemical cell size regulators
RPMI-1640 Medium	Base differentiation medium	Serum-free or low serum formulation	Other defined basal media
FOXA2 Antibody	Endoderm marker detection	Immunofluorescence, flow cytometry	-
SOX17 Antibody	Endoderm marker detection	Immunofluorescence, flow cytometry	-
CXCR4 Antibody	Endoderm marker detection	Flow cytometry	-
YAP/AMOT Antibodies	Mechanistic analysis	Immunofluorescence, Western blot	-
Flow Cytometer	Cell size and marker analysis	Forward scatter for size	Coulter counter, microscopic analysis
Confocal Microscope	3D cell size measurement	High-resolution imaging	Other microscopic methods

Discussion: Integration with Developmental Mechanisms and Research Applications

Integration with Known Endoderm Specification Pathways

The hypertonic pressure approach complements established understanding of definitive endoderm specification. Recent research has identified OTX2 as a critical transcription factor required for definitive endoderm specification and patterning through enhancer remodeling [15]. Additionally, studies reveal that definitive endoderm formation occurs through multiple developmental routes, with activin and BMP4 signaling determining the choice between alternate developmental trajectories [18]. The mechanical regulation of endoderm specification via cell size manipulation intersects with these biochemical pathways, potentially influencing the same downstream processes through distinct upstream mechanisms.

From a developmental perspective, cell size changes mirror physical transformations occurring during mammalian gastrulation. In vivo, definitive endoderm arises through an epithelial-to-mesenchymal transition-like process during primitive streak formation and migration, events accompanied by significant cellular reorganization and potentially size alterations [45]. The application of hypertonic pressure in vitro may therefore mimic physical constraints present in the embryonic environment that contribute to proper germ layer patterning.

Technical Considerations and Optimization Strategies

Successful implementation of hypertonic pressure protocols requires attention to several technical considerations:

• Cell Line Variability: Different hPSC lines may exhibit varying sensitivity to osmotic pressure, necessitating titration experiments for optimal results.
• Temporal Specificity: The timing of hypertonic application is critical, with early differentiation stages typically being most responsive.
• Osmolyte Selection: While NaCl is commonly used, other osmolytes may produce different effects due to specific ion channel interactions.
• Combination with Defined Conditions: Recent advances in chemically defined systems for endoderm induction provide opportunities for integrating hypertonic approaches with fully defined, xeno-free differentiation platforms [81].

Protocol optimization should include systematic testing of osmolarity levels, treatment duration, and combination with small molecule inducers such as IDE1 and IDE2, which have been shown to promote endoderm differentiation through alternative mechanisms [82].

The application of hypertonic pressure to promote endoderm differentiation efficiency represents a significant advancement in stem cell differentiation methodology by leveraging the fundamental relationship between cell physical properties and fate specification. This approach provides researchers with a novel mechanical intervention to enhance the yield of definitive endoderm cells, which serve as critical starting populations for generating various endodermal derivatives including pancreatic, hepatic, and intestinal lineages.

The mechanistic insights linking cell size reduction to actomyosin activity, AMOT nuclear translocation, and YAP suppression establish a solid theoretical foundation for further exploration of mechanical regulation in development and differentiation. Future research directions may include exploring the combination of hypertonic pressure with newly identified small molecule inducers, applying similar mechanical principles to other differentiation pathways, and developing more sophisticated biomaterial systems that precisely control physical cues in three-dimensional environments.

For researchers in gastrulation biology and regenerative medicine, the integration of physical manipulation techniques with established biochemical methods provides a more comprehensive approach to mimicking developmental processes in vitro, ultimately advancing both fundamental knowledge and translational applications in endodermal organ engineering.

Embryonic development is a self-organized process during which cells divide, interact, and change fate according to complex gene regulatory networks while organizing themselves in three-dimensional space [83]. This morphogenesis relies critically on cell tension and tissue-level forces to physically reorganize epiblast cells into the three primary germ layers [84]. The acquisition of definitive endoderm identities within the inner cell mass represents a paradigm of this process, where mechanical cues intersect with biochemical signaling to direct lineage specification.

Recent research has established that actomyosin dynamics—the coordinated activity of actin filaments and myosin motor proteins—serve as a fundamental regulator of cell fate decisions during gastrulation. This in-depth technical guide examines how mechanosensitive pathways involving actomyosin regulation can be targeted to improve lineage specification, with particular emphasis on definitive endoderm formation. We synthesize current experimental evidence, provide detailed methodologies for key experiments, and outline practical tools for researchers investigating these processes.

Core Mechanisms: Actomyosin in Lineage Specification

Molecular Regulation of Actomyosin Dynamics

At the molecular level, actomyosin regulation involves sophisticated interactions between cytoskeletal components that determine contractile outputs and mechanical sensing. Tropomyosins form strand-like molecules consisting of parallel dimeric coiled-coils that associate with actin filaments, promoting filament stability and regulating associations with myosin motors [85]. These associations are highly isoform-specific, with different tropomyosin isoforms significantly enhancing or inhibiting particular myosin motor activities:

• Positive regulation of non-muscle myosins: Fission yeast tropomyosin (Cdc8p) and mammalian tropomyosin isoforms (Tpm3.1cy and Tpm4.2cy) significantly enhance myosin-II (Myo2p) and myosin-V (Myo52p) motor activity, even converting non-processive Myo52p molecules into processive motors capable of walking along actin tracks as single molecules [85].
• Differential effects based on myosin isoform: While positively regulating non-muscle myosins, these same tropomyosin isoforms potently inhibit skeletal muscle myosin-II while having negligible effects on highly processive mammalian myosin-Va [85].
• Implications for lineage specification: This myosin isoform-dependent regulation enables tight specification of actomyosin function in complex cellular environments, providing a mechanism for sorting myosin motor outputs in developing tissues [85].

Biomechanical Cues in Gastrulation-like Patterning

Engineering of substrates that recapitulate the biophysical properties of the early embryo has demonstrated that compliant substrates promote human embryonic stem cell (hESC) self-organization into "gastrulation-like" nodes [84]. When hESCs are plated at high densities on soft polyacrylamide hydrogels (E = 2,700 Pa) mimicking embryonic elasticity, multiple discrete regions of highly dense cells form near the colony periphery following BMP4 stimulation [84]. Within these nodes, cells ingress basally to form a second cellular layer expressing the mesoderm marker T(brachyury), exhibiting behavior highly reminiscent of primitive streak formation during gastrulation [84].

Crucially, specific tissue geometries foster localized regions of high cell-adhesion tension that potentiate BMP4-dependent mesoderm specification by enhancing junctional release of β-catenin to promote Wnt signaling [84]. This mechanical regulation provides a direct link between tissue-level forces and cell fate specification in early human development.

Regionalized Actomyosin Organization in Curvature Formation

Studies in zebrafish heart development have revealed that initially similar populations of outer curvature (OC) and inner curvature (IC) ventricular cardiomyocytes diverge in their organization of the actomyosin cytoskeleton, subsequently acquiring distinct cell shapes [86]. This regional specialization demonstrates how actomyosin dynamics direct morphological changes essential for proper tissue patterning:

• OC cardiomyocytes develop significantly larger, more elongated apical surface areas compared to IC cells [86].
• Visualizations of the F-actin cytoskeleton show "cortical" F-actin in both curvatures, with an additional pool of "cytoplasmic" F-actin running throughout OC cells [86].
• Inhibition of actin polymerization prevents achievement of stereotypic curved chamber contours, confirming actomyosin's essential role in this morphogenetic process [86].

Table 1: Quantitative Analysis of Gastrulation-like Node Formation in hESCs

Parameter	Measurement	Experimental Conditions	Significance
Optimal substrate elasticity	2,700 Pa	Polyacrylamide hydrogels	Recapitulates chicken epiblast stiffness (102-103 Pa) [84]
BMP4 concentration	50 ng/ml	24-48 hours stimulation	Induces gastrulation-like nodes [84]
Node expansion period	24-48 hours	Post-BMP4 stimulation	Analogous to primitive streak elongation [84]
EMT marker expression	Loss of E-cadherin, Slug expression	Adjacent to gastrulation-like nodes	Indicates epithelial-to-mesenchymal transition [84]
ECM remodeling	Fibronectin deposition, MMP2/MMP14 upregulation	72 hours post-BMP4	Facilitates ingression and migration [84]

Experimental Approaches and Methodologies

Engineering Embryo-like Biophysical Environments

Protocol: Fabrication of Patterned Polyacrylamide Hydrogels for hESC Culture

• Substrate Preparation: Create polyacrylamide hydrogels with tuned elasticity (E = 2,700 Pa) on glass coverslips using acrylamide and bis-acrylamide solutions at calculated concentrations. Functionalize with sulfo-SANPAH for extracellular matrix conjugation [84].
• ECM Patterning: Use microfabricated stencils or photolithography to pattern laminin-rich reconstituted basement membrane (rBM) in specific geometric configurations (circular colonies, disc-shaped colonies, or other designs) to control tissue geometry [84].
• hESC Plating and Culture: Plate H9 or other hESC lines at high densities (3,000-4,000 cells/mm²) using "funnels" to create confined colonies. Maintain in defined essential 8 medium or equivalent [84].
• BMP4 Stimulation: Add recombinant BMP4 at 50 ng/ml to culture medium for 24-48 hours to induce differentiation and gastrulation-like node formation [84].
• Traction Force Microscopy: Embed fluorescent microbeads in the polyacrylamide substrate and track their displacement to quantify cell-adhesion tension generated by hESCs during differentiation [84].

Quantifying Actomyosin-Dependent Cell Shape Changes

Protocol: Analysis of Cardiomyocyte Morphogenesis in Zebrafish

• Transgenic Line Generation: Create transgenic zebrafish lines expressing actin-binding tags (e.g., Utrophin-GFP) and myosin markers under cardiac-specific promoters to visualize actomyosin dynamics in living embryos [86].
• Confocal Imaging: Perform high-resolution spinning disc confocal microscopy of the myocardial surface at multiple stages of heart development (linear heart tube to looped heart stages) [86].
• Morphometric Analysis: Use image analysis software (e.g., ImageJ, CellProfiler) to quantify apical surface area, circularity, and elongation of OC versus IC cardiomyocytes [86].
• Pharmacological Perturbation: Treat embryos with inhibitors of actin polymerization (e.g., Latrunculin B) or myosin contractility (e.g., Blebbistatin) to assess requirement of actomyosin dynamics for curvature formation [86].
• Mosaic Analysis: Create genetic mosaics by transplanting actomyosin-mutant cells into wild-type hosts (and vice versa) to determine cell-autonomous versus non-autonomous functions of actomyosin regulators [86].

Computational Modeling of Cell Lineage Specification

Protocol: Multiscale Modeling of Epi/PrE Specification

• Model Framework: Develop a three-dimensional multiscale model describing interplay between cell division, signaling, and gene expression using a spherical cell model that tracks volume, mass, and center of mass position for each cell [83].
• Force Modeling: Model mechanical interactions between cells through pair-wise forces, calculating time evolution of protein concentrations in each cell based on a gene regulatory network [83].
• GRN Implementation: Implement a gene regulatory network incorporating cross-inhibition between Nanog and Gata6, with Fgf4 secretion inhibited by Gata6 and Fgf/Erk signaling promoting Gata6 expression [83].
• Division Parameters: Set cell division to occur in periodic waves with a default cell cycle length of 12 hours and asynchrony parameter δ of ~40 minutes, with daughter cells inheriting mother cell regulatory network values [83].
• Heterogeneity Introduction: Incorporate noise through slight inhomogeneities in extracellular Fgf4 signaling or uneven repartition of transcription factors during division (parameter ηi) to break symmetry [83].

Diagram 1: Experimental Workflow for hESC Gastrulation-like Node Formation. This diagram illustrates the key steps in generating and analyzing gastrulation-like nodes in hESCs, highlighting the integration of biophysical cues with biochemical signaling to drive mesoderm specification.

Table 2: Gene Regulatory Network Components for Epi/PrE Specification

Network Component	Role in Specification	Regulatory Interactions	Experimental Manipulations
Nanog	Promotes epiblast (Epi) fate	Cross-inhibits Gata6; Expressed in mutually exclusive pattern with Gata6 from E3.75 [83]	Nanog mutation → failure to produce Epi cells [83]
Gata6	Promotes primitive endoderm (PrE) fate	Cross-inhibits Nanog; Inhibits Fgf4 secretion; Expressed in mutually exclusive pattern with Nanog [83]	Gata6 mutation → failure to specify PrE cells [83]
Fgf4	Extracellular signaling molecule	Secretion inhibited by Gata6; Binds Fgfr2 to activate Erk signaling [83]	Recombinant Fgf4 → forces nearly all cells to PrE fate [83]
Fgfr2	Receptor tyrosine kinase	Binds Fgf4; Activates Erk signaling pathway [83]	Fgfr2 inhibition → favors Epi cell specification [83]
Grb2	Erk adaptor protein	Transduces Fgf signaling to Erk pathway [83]	Grb2 mutation → disrupts PrE specification [83]

Research Reagent Solutions

Table 3: Essential Research Reagents for Actomyosin and Lineage Specification Studies

Reagent/Category	Specific Examples	Function/Application	Key Considerations
Tropomyosin Isoforms	Tpm3.1cy/Tm5NM1, Tpm4.2cy/Tm4 [85]	Regulate specific myosin motor activities; Study isoform-specific actomyosin regulation	Predominantly expressed in primary tumors and tumor cell lines; Essential for neuroblastoma proliferation [85]
Cytoskeletal Inhibitors	Latrunculin B (actin polymerization), Blebbistatin (myosin contractility) [86]	Perturb actomyosin dynamics; Test requirement for cytoskeleton in morphogenesis	Titrate concentration to avoid complete developmental arrest; Use appropriate vehicle controls
Mechanosensing Tools	Polyacrylamide hydrogels, Micropatterned substrates, Atomic force microscopy [84]	Recapitulate embryonic biophysics; Measure cellular forces	Match substrate elasticity to specific embryonic tissue (epiblast: ~102-103 Pa); Functionalize with appropriate ECM
Lineage Markers	T(Brachyury) - mesoderm, Nanog - epiblast, Gata6 - primitive endoderm [84] [83]	Identify specified cell populations; Track lineage commitment	Use multiple markers for definitive identification; Consider temporal expression patterns
Signaling Modulators	Recombinant BMP4 (induction), Fgf4 (PrE specification), Fgf/Erk inhibitors (Epi specification) [84] [83]	Manipulate signaling pathways; Direct lineage choices	Optimize concentration and timing; BMP4 at 50 ng/ml for hESC mesoderm specification [84]

Computational and Visualization Approaches

For quantitative analysis of actomyosin-dependent phenotypes, several specialized methodologies are recommended:

• Traction Force Microscopy: As described in Muncie et al. [84], this approach involves embedding fluorescent beads in polyacrylamide substrates and calculating displacement vectors to determine forces generated by cells during differentiation.
• Multiscale Modeling: Implement 3D models tracking cell division, mechanical interactions, and gene regulatory network dynamics as described in Bessonnard et al. [83], using programming environments such as Python, MATLAB, or specialized platforms like Morpheus.
• Morphometric Analysis: Quantify cell shape parameters (surface area, circularity, elongation) from confocal microscopy data using ImageJ, CellProfiler, or specialized cardiac morphometry software as employed in Deacon et al. [86].

Diagram 2: Gene Regulatory Network for Epi/PrE Specification. This diagram illustrates the core gene regulatory network controlling the specification of epiblast and primitive endoderm fates from bipotent inner cell mass cells, highlighting the cross-inhibition between Nanog and Gata6 and the role of Fgf4/Erk signaling.

The integration of actomyosin regulation with traditional biochemical signaling pathways represents a fundamental mechanism directing lineage specification during embryonic development. Targeting these mechanosensitive pathways offers promising approaches for improving the efficiency and fidelity of definitive endoderm specification in both developmental biology research and therapeutic applications. The experimental protocols, computational models, and research tools outlined in this technical guide provide a foundation for investigating these processes with the precision required by research scientists and drug development professionals. As the field advances, continued refinement of these methodologies will further elucidate how mechanical forces interface with molecular networks to control cell fate decisions during gastrulation.

The yes-associated protein (YAP) and its paralog TAZ (transcriptional coactivator with PDZ-binding motif) serve as master regulators of cell proliferation, differentiation, and fate determination, translating mechanical and adhesive cues into transcriptional programs. Central to this regulatory system is angiomotin (AMOT), a scaffold protein that exhibits context-dependent functions as either a suppressor or facilitator of YAP activity. Within the context of definitive endoderm (DE) specification during gastrulation, emerging evidence positions the YAP/AMOT pathway as a critical mechanical checkpoint. Recent studies have elucidated how mechanical inputs—including extracellular matrix stiffness, cell size, and cytoskeletal architecture—orchestrate AMOT's subcellular localization and stability, thereby controlling YAP nucleocytoplasmic shuttling [87] [54]. This whitepaper synthesizes current mechanistic understanding of YAP/AMOT pathway regulation, with a specific focus on nuclear translocation as a targetable lever for controlling cell fate decisions, particularly in DE specification.

Core Mechanism: AMOT as the Pivotal Regulator of YAP Localization

The Dual Role of AMOT in YAP Regulation

AMOT, a member of the Motin family, functions as a scaffold protein that directly binds YAP via its N-terminal PPxY motifs interacting with YAP's WW domains [88] [89]. Contrary to initial reports of a purely inhibitory function, AMOT exhibits dual regulatory roles dependent on its phosphorylation state and subcellular localization:

• Phosphorylation-State Dependent Localization: Phosphorylation of AMOT at serine 176 (S176) by LATS kinases (core components of the Hippo pathway) promotes AMOT's association with tight junction components at the plasma membrane, leading to YAP cytoplasmic sequestration and inhibition [88]. Conversely, hypophosphorylated AMOT (at S176) translocates to the nucleus, facilitating YAP-TEAD association and transcriptional activation of pro-growth and differentiation genes [88].
• Cytoplasmic Sequestration Complex: At tight junctions, AMOT acts as a scaffold that promotes LATS-mediated phosphorylation of YAP, resulting in 14-3-3 binding and cytoplasmic retention or degradation [89]. This complex includes Merlin, the product of the NF2 tumor suppressor gene, which associates with AMOT to regulate its activity [88].

Table 1: AMOT Isoforms and Their Functions in YAP Regulation

Isoform	Size	Domains/Features	Reported Function in YAP Regulation
AMOT-p130	130 kDa	N-terminal PPxY motifs, Coiled-coil domain, PDZ-binding domain	Primary scaffold; phosphorylation-dependent nuclear/cytoplasmic shuttling; can promote or inhibit YAP [88].
AMOT-p80	80 kDa	Truncated N-terminus, Coiled-coil domain, PDZ-binding domain	Lacks full N-terminal domain; functions primarily in cytoplasmic retention of YAP [88].

Microtubule-Dependent Regulation of AMOT Stability

Recent groundbreaking research has identified microtubules (MTs) as master regulators of AMOT protein stability, operating downstream of nuclear mechanics and F-actin [87] [90]. This mechanism provides a rapid response system for mechanical cues:

• Mechano-ON State: On stiff substrates or unconfined areas, MTs reorganize from a perinuclear cage into a radial array nucleated by centrosomes. This structural rearrangement triggers dynein/dynactin-mediated transport of AMOT to the pericentrosomal proteasome for degradation [87]. With AMOT degraded, YAP is released from cytoplasmic sequestration and translocates to the nucleus to activate transcription.
• Mechano-OFF State: On soft substrates or under confinement, MTs form an acentrosomal, apico-basal cage-like structure around the nucleus. In this configuration, AMOT remains stable, effectively sequestering YAP in the cytoplasm and suppressing its transcriptional activity [87].

This microtubule-centric mechanism explains how Ras/RTK oncogenes promote YAP/TAZ-dependent tumorigenesis—by corrupting the AMOT-centered mechanical checkpoint [87].

Diagram 1: Integrated regulatory network of YAP/AMOT pathway showing mechanical, microtubule-dependent, and Hippo-mediated control mechanisms.

YAP/AMOT in Definitive Endoderm Specification

Cell Size Diminution as a Driver of Endoderm Differentiation

During DE differentiation from human pluripotent stem cells (ESCs), a progressive decrease in cell size correlates with specification efficiency [54]. This size reduction is not merely a consequence of differentiation but actively promotes DE commitment through the YAP/AMOT axis:

• Hypertonic Pressure Enhancement: Application of hypertonic pressure to accelerate cell size reduction significantly enhances DE differentiation, as indicated by increased expression of endodermal markers SOX17 and FOXA2 [54].
• Actomyosin Mediation: The enhancement of DE differentiation under hypertonic pressure is reliant on actomyosin activity, which facilitates both size reduction and subsequent AMOT nuclear translocation [54].
• Mechanical State Transition: ESCs exhibit a diffuse integrin tension pattern with lower mechanical tension, while DE cells display localized high tension (56-pN) at the cell edge, indicating a transition to a high-tension mechanical state conducive to DE specification [54].

Table 2: Quantitative Changes in Cell Properties During Endoderm Specification

Parameter	Pluripotent Stem Cells	Definitive Endoderm Cells	Measurement Method
Cell Size	Large	~30-50% reduction	Flow cytometry FSC, 3D confocal [54]
Integrin Tension	Low, diffuse	High, localized at edge	56-pN/12-pN reversible shearing DNA probe [54]
Expression Markers	OCT4, NANOG	SOX17, FOXA2	qPCR, Immunostaining [54]
YAP Localization	Nuclear (in large cells)	Cytoplasmic (in small cells)	Immunofluorescence [54]

AMOT Nuclear Translocation Represses YAP in Endoderm

The mechanical changes during DE specification trigger a distinctive regulatory sequence:

• Cell size diminution induces actomyosin-dependent AMOT nuclear translocation [54].
• Nuclear AMOT suppresses YAP activity, facilitating the exit from the pluripotent state and commitment to endodermal lineage [54].
• YAP suppression creates a permissive environment for DE specification by downregulating pluripotency genes and enabling activation of endodermal transcriptional programs.

This mechanism provides a direct link between physical cell properties and fate determination, with AMOT nuclear translocation serving as the critical transduction point.

Experimental Approaches for Modulating the Pathway

Methodologies for Inducing AMOT-Dependent YAP Translocation

Mechanical Manipulation Protocols

• Substrate Stiffness Control: Plate cells on hydrogels with tunable elastic modulus ranging from 0.7-kPa (mechano-OFF) to 40-kPa (mechano-ON) to assess YAP/TAZ localization via immunofluorescence [87].
• Geometric Confinement: Use micropatterning to create small (mechano-OFF) versus large (mechano-ON) adhesive islands. For DE differentiation, optimal confinement promotes cell size reduction and enhances differentiation efficiency [87] [54].
• Hypertonic Pressure Treatment: Apply hypertonic media (optimized concentration range: 50-100 mOsm above isotonic) for 24-48 hours during the initial phase of DE differentiation to accelerate cell size reduction and boost specification [54].

Microtubule and Centrosome Targeting

• Centrosome Disruption: Deplete γ-tubulin using siRNA to inhibit MTOC formation, resulting in loss of radial MTs and YAP cytoplasmic retention even under mechano-ON conditions [87].
• Microtubule Stabilization: Overexpress ninein-like protein 1 (NLP1) to rescue perinuclear MTOC formation and radial MTs, promoting YAP nuclear accumulation even in mechano-OFF conditions (e.g., after cytochalasin D treatment) [87].
• Microtubule Acetylation Modulation: Deplete α-TAT1 (tubulin acetyl-transferase) with independent siRNAs to specifically disrupt pericentrosomal MT stability without affecting peripheral MTs or F-actin architecture [87].

Genetic and Molecular Interventions

• AMOT Phosphorylation Mutants: Express phosphomimetic (S176D) and phosphodeficient (S176A) AMOT mutants to experimentally control YAP localization—S176D for cytoplasmic retention and S176A for nuclear translocation [88].
• LATS Kinase Modulation: Inhibit LATS kinases to reduce AMOT phosphorylation, promoting AMOT nuclear localization and YAP activation [88].

Diagram 2: Experimental decision framework for modulating the YAP/AMOT pathway to control endoderm specification outcomes.

Quantification and Validation Methods

• YAP/TAZ Localization Index: Quantify nucleo/cytoplasmic ratio using immunofluorescence with anti-YAP/TAZ antibodies and high-content imaging analysis. Normalize nuclear intensity to cytoplasmic intensity with a threshold >1.5 indicating nuclear enrichment [87] [91].
• Microtubule Organization Assessment: Use MT-compatible immunofluorescence procedures with anti-α-tubulin and anti-γ-tubulin antibodies to classify MT organization as radial (centrosomal) versus cage-like (acentrosomal) [87].
• AMOT Stability and Localization: Monitor AMOT protein levels by Western blot after mechanical or chemical perturbations. Assess AMOT subcellular distribution by immunofluorescence, noting nuclear accumulation in conditions promoting DE differentiation [54] [88].
• Transcriptional Activity Readouts: Measure expression of YAP/TAZ target genes (CTGF, CYR61) and DE markers (SOX17, FOXA2) by qRT-PCR to functionally validate pathway activity and differentiation efficiency [54] [89].

The Scientist's Toolkit: Essential Research Reagents

Table 3: Key Research Reagents for YAP/AMOT Pathway Investigation

Reagent/Category	Specific Examples	Function/Application	Considerations for Endoderm Research
Mechanical Manipulation	Tunable stiffness hydrogels (0.7-40 kPa); Micropatterned substrates; Hypertonic media	Control cell mechanical environment to modulate YAP/AMOT	Optimal DE specification at intermediate stiffness (3-13 kPa) with confinement [87] [54]
Microtubule Targeting	γ-tubulin siRNA; α-TAT1 siRNA; NLP1 overexpression constructs	Manipulate MT organization to control AMOT stability	Centrosomal MT disruption stabilizes AMOT, promoting DE commitment [87]
AMOT Molecular Tools	AMOT-p130 expression vectors; AMOT S176A/S176D mutants; AMOT siRNA	Directly target AMOT expression and phosphorylation state	S176A promotes nuclear AMOT and DE specification; S176D inhibits [88]
Hippo Pathway Modulators	LATS kinase inhibitors; Merlin expression vectors	Regulate upstream Hippo pathway input	LATS inhibition promotes AMOT nuclear localization [88]
Actomyosin Modulators	Cytochalasin D (F-actin disruptor); ROCK inhibitors	Test actomyosin dependency of AMOT translocation	Essential for hypertonic pressure-induced DE differentiation [54]
Validation Antibodies	Anti-YAP/TAZ; Anti-AMOT; Anti-γ-tubulin; Anti-acetylated tubulin	Assess protein localization and modification	Critical for quantifying nucleocytoplasmic shuttling [87] [54] [88]

The YAP/AMOT pathway represents a sophisticated mechanical transduction system that integrates extracellular physical cues with intracellular signaling to control cell fate decisions. In the context of definitive endoderm specification, AMOT nuclear translocation serves as a critical molecular switch that suppresses YAP activity, facilitating exit from pluripotency and commitment to endodermal lineage. The recently discovered microtubule-dependent regulation of AMOT stability provides a rapid-response mechanism that explains how mechanical information is transduced into YAP/TAZ activity changes.

Future research directions should focus on identifying the specific kinases and phosphatases that regulate AMOT phosphorylation state in response to mechanical cues, developing small molecule inhibitors that specifically target the AMOT-YAP interaction, and optimizing mechanical conditioning protocols for large-scale production of DE cells for regenerative medicine applications. The experimental frameworks and reagents outlined in this whitepaper provide a foundation for systematically investigating and manipulating this pivotal pathway for both basic research and therapeutic development.

Definitive endoderm (DE) formation during gastrulation establishes the progenitor population for major internal organs, including the liver, pancreas, intestines, and lungs [1] [92]. In the developing embryo, epiblast cells are directed toward the DE lineage through precise morphogen gradients and signaling pathways, primarily the Transforming Growth Factor-β (TGF-β) family member Nodal and the canonical WNT pathway [1] [3]. A key conceptual advance in mammalian development is the finding that DE formation occurs independent of a full epithelial-mesenchymal transition (EMT) cycle; unlike mesoderm progenitors that undergo classical EMT, DE progenitors are shielded from a complete mesenchymal transition by the gatekeeper function of the transcription factor Foxa2, allowing them to maintain epithelial characteristics during gastrulation [3]. Recapitulating these precise in vivo signaling environments and morphogenetic processes in vitro is a central challenge for stem cell biology and regenerative medicine. The ability to direct induced pluripotent stem cell (iPSC) differentiation efficiently to DE is a critical first step for generating patient-specific cellular models and therapies for a wide range of diseases [93] [92]. This guide details the current strategies for refining culture parameters—specifically medium formulations and growth factor cocktails—to enhance the yield and fidelity of DE differentiation, framed within the core principles of gastrulation research.

Molecular Control of Definitive Endoderm Formation

Core Signaling Pathways

The molecular circuitry controlling DE specification is evolutionarily conserved and revolves around a core set of interconnected signaling pathways. Understanding these pathways is prerequisite to rationally designing differentiation protocols.

• TGF-β/Nodal Signaling: The TGF-β-related factor Nodal acts as a primary inducer of mesendodermal fates. In vertebrates, different levels of Nodal signaling specify distinct cell fates, with peak levels required for endoderm formation [1] [92]. This signaling is mediated through intracellular SMAD proteins (primarily SMAD2/3), and its activity is finely tuned by antagonists like Lefty2 [1]. In vitro, the activity of Nodal is most commonly mimicked using its homolog, Activin A [92].

• Canonical WNT/β-catenin Signaling: The WNT pathway acts synergistically with Nodal to specify DE. Mouse embryos lacking either Nodal or β-catenin fail to form a primitive streak [1]. WNT signaling is crucial at the initial stage of differentiation to promote the emergence of mesendodermal progenitors from pluripotent cells [93] [92]. The GSK-3 inhibitor CHIR99021 is a small molecule widely used to activate WNT signaling robustly and reproducibly in vitro [92].

• Transcriptional Regulators: The transcription factors Foxa2 and Sox17 are master regulators of DE formation. Foxa2 not only promotes endodermal gene expression but also acts as an EMT suppressor, maintaining the epithelial integrity of DE progenitors by repressing the EMT transcription factor Snail1 [3]. The expression of Sox17 follows Foxa2 and is a definitive marker of committed DE cells [3].

The following diagram illustrates the core signaling network and its key outputs in DE specification:

Beyond Soluble Factors: The Role of Mechanical Cues

Emerging research highlights that differentiation is not governed by soluble factors alone. Mechanotransduction—the conversion of mechanical forces into biochemical signals—plays a crucial role in cell fate decisions. Substrate stiffness and cytoskeletal tension have been shown to regulate DE specification and subsequent hepatic differentiation via the YAP (Yes-associated protein) signaling pathway [94]. For instance, culturing hiPSCs on physiologically relevant polydimethylsiloxane (PDMS) substrates of specific stiffness can enrich the expression of DE markers (SOX17, FOXA2) and improve the functional maturity of downstream hepatocyte-like cells [94]. This underscores the importance of considering the physical properties of the culture environment as a tunable parameter for enhancing differentiation yield.

Strategies for Medium Formulation and Optimization

Basal Media and Serum-Free Imperative

The foundation of any differentiation protocol is a basal medium, such as RPMI or DMEM, supplemented with defined additives [92]. A paramount consideration is the elimination of fetal bovine serum (FBS). FBS is ill-defined, exhibits significant batch-to-batch variability, introduces ethical concerns, and contains unknown factors that can derail directed differentiation [95]. Serum-free media (SFM) are essential for reproducible, high-yield DE generation. SFM development focuses on replacing the essential components provided by serum with a defined cocktail of nutrients, hormones, proteins, and specific growth factors [96] [95]. The Essential 8 (E8) formulation and its derivatives are prominent examples of defined SFM used for maintaining pluripotency and initiating differentiation [97].

Growth Factor vs. Small Molecule Approaches

Two primary methodologies exist for inducing DE differentiation: a growth factor (GF)-based approach and a small molecule (SM)-based approach. A recent comparative study demonstrated that both methods can produce DE cells with similar morphological phenotypes, gene expression profiles (high SOX17, FOXA2, CXCR4), and homogeneity [92]. However, critical differences exist in their mechanisms and downstream effects.

• Growth Factor Protocol: This method directly activates the key signaling pathways using recombinant proteins. The standard GF cocktail for DE specification includes Activin A (100 ng/mL) to mimic Nodal signaling, and Wnt3a (25 ng/mL) to activate the canonical WNT pathway [92]. This approach closely recapitulates the natural signaling events during gastrulation.
• Small Molecule Protocol: This method utilizes cost-effective, stable, and reproducible chemical compounds to modulate endogenous signaling pathways. The core of this approach is the GSK-3 inhibitor CHIR99021 (typically 6 µM), which activates WNT/β-catenin signaling by preventing the degradation of β-catenin [92]. This single molecule can effectively replace the need for recombinant Wnt3a and modulates signaling to promote DE specification.

Table 1: Comparison of Definitive Endoderm Differentiation Protocols

Parameter	Growth Factor (GF) Protocol	Small Molecule (SM) Protocol
Key Inducers	Activin A (100 ng/mL), Wnt3a (25 ng/mL) [92]	CHIR99021 (6 µM) [92]
Mechanism	Direct activation of TGF-β and WNT receptors	Intracellular inhibition of GSK-3, stabilizing β-catenin
Cost	High (recombinant proteins are expensive) [98]	Lower (small molecules are more cost-effective) [92]
Stability & Reproducibility	Moderate (proteins can degrade)	High (compounds are highly stable)
Reported Efficiency	High (≥80% SOX17/FOXA2+ cells achievable) [92]	High (≥80% SOX17/FOXA2+ cells achievable) [92]
Downstream Impact	More effective for hepatic specification [92]	Divergent protein expression in hepatoblasts [92]

Novel Formulation Components and Cost-Reduction Strategies

The high cost of growth factors remains a significant barrier to scale-up. Research into affordable, food-grade, and non-animal alternatives is therefore a critical area of innovation.

• Plant and Algal Extracts: Hydrolysates from edible plants (soy, chickpea) and extracts from marine microalgae like Dunaliella salina (DS) and Spirulina platensis (SP) have shown promise. These extracts are rich in amino acids, lipids, and antioxidants, and have been demonstrated to significantly promote cell proliferation and reduce oxidative stress in various cell types, acting as effective serum replacements [96].
• Recombinant Protein Production: To lower costs and ensure purity, open-access methods for producing recombinant growth factors in bacterial systems are being developed. For example, highly pure R-spondin 1 and Gremlin 1 (a BMP antagonist used in later differentiation stages) can be produced in E. coli with defined cellular activity at a fraction of the cost of commercial preparations [98].
• Optimized Factor Cocktails: Systematic optimization using approaches like Design of Experiments (DOE) can identify synergistic interactions between factors. One study developed a Proliferation Synergy Factor Cocktail (PSFC) containing IGF-1, bFGF, TGF-β, IL-6, and G-CSF that maintained robust cell proliferation under low-serum conditions, reducing serum use by 75% [99].

Table 2: Key Research Reagent Solutions for Definitive Endoderm Specification

Reagent	Type	Primary Function in DE Specification	Example Usage
Activin A	Growth Factor	Mimics Nodal; primary inducer of mesendoderm via SMAD2/3 signaling [92].	100 ng/mL for 72 hours [92].
CHIR99021	Small Molecule	GSK-3 inhibitor; activates WNT/β-catenin signaling [92].	6 µM for 72 hours [92].
Wnt3a	Growth Factor	Activates canonical WNT pathway; synergizes with Nodal/Activin A [92].	25 ng/mL for first 48 hours [92].
Foxa2	Transcription Factor	Master regulator; DE marker and EMT suppressor [3].	Key readout for specification efficiency.
Sox17	Transcription Factor	Master regulator; definitive marker of committed DE [3].	Key readout for specification efficiency.
PDMS Substrates	Culture Substrate	Provides tunable stiffness; modulates mechanotransduction via YAP to enhance DE markers [94].	Used as compliant culture substrate.
R-spondin 1	Growth Factor	Potentiates WNT signaling; critical for organoid culture from DE [98].	Used in subsequent endoderm patterning.

Experimental Protocols for High-Yield DE Differentiation

Detailed Growth Factor-Driven DE Differentiation Protocol

This protocol is adapted from established methods for differentiating human iPSCs into definitive endoderm [92].

• Starting Material: Human iPSCs cultured in 6-well plates to approximately 60% confluence in a feeder-free system (e.g., on Vitronectin or Matrigel).
• Basal Medium: RPMI 1640 medium supplemented with B27 (without insulin), GlutaMAX, and penicillin/streptomycin.
• Day 0: Initiation of Differentiation
  • Aspirate the pluripotency medium and wash cells once with the basal medium.
  • Add differentiation medium containing:
    • Basal Medium (RPMI/B27)
    • Activin A (100 ng/mL)
    • Wnt3a (25 ng/mL)
  • Incubate at 37°C, 5% COâ‚‚.
• Day 2: Medium Change
  • Aspirate the differentiation medium.
  • Add fresh differentiation medium containing:
    • Basal Medium (RPMI/B27)
    • Activin A (100 ng/mL)
    • Note: Wnt3a is omitted from this and subsequent changes.
  • Incubate for 24 hours.
• Day 3: Completion of DE Differentiation
  • Aspirate the medium. The cells should now exhibit a characteristic DE morphology (homogeneous, with a high nuclear-to-cytoplasmic ratio).
  • Cells can be harvested for analysis or passaged for further differentiation. Key DE markers (FOXA2, SOX17, CXCR4) should be assessed via flow cytometry, immunocytochemistry, or qPCR to confirm efficiency, which should exceed 80% [92].

The workflow for this protocol, and the decision point for the subsequent use of the generated DE, is summarized below:

Quality Control and Functional Validation

Merely achieving high expression of DE markers is insufficient; functional validation is crucial.

• Molecular Characterization: Confirm the co-expression of key transcription factors FOXA2 and SOX17 via immunostaining or flow cytometry. Quantitative PCR should show strong upregulation of SOX17, FOXA2, and CXCR4 alongside the downregulation of pluripotency genes (e.g., OCT4, NANOG) [3] [92].
• Flow Cytometry for CXCR4: The cell surface marker CXCR4 is a robust marker for DE. Flow cytometric analysis should reveal a high percentage (ideally >80%) of CXCR4-positive cells in the population [92].
• Addressing Contamination: Monitor for the persistence of mesodermal progenitors (e.g., by assessing Brachyury/T expression, which should be transient and low by day 3) and the absence of extraembryonic endoderm markers (e.g., SOX7) [1].
• Functional Capacity: The ultimate test of DE quality is its ability to differentiate into downstream endodermal lineages, such as hepatocytes or pancreatic cells. Proceed to subsequent patterning stages to confirm the developmental potential of the generated DE population [94] [92].

Refining culture parameters for high-yield definitive endoderm specification requires an integrated approach that mirrors the complexity of gastrulation. Success hinges on the precise application of biochemical signaling (via GFs or SMs), the use of defined, serum-free media, and an increasing appreciation for the role of biophysical cues. As research progresses, the integration of novel, cost-effective components from algal and plant sources, along with systematic, high-throughput optimization of formulations, will be key to scaling up production and achieving the reproducibility required for drug development and cellular therapies. By grounding protocol design in the fundamental principles of developmental biology, researchers can continue to enhance the yield and quality of DE, thereby unlocking the full potential of stem cell-based applications.

Benchmarking Endodermal Models: Rigorous Assessment of Cellular Identity and Function

This whitepaper provides a comprehensive technical analysis of SPINK3 and TRH as region-specific markers of the definitive endoderm (DE) during mammalian gastrulation. Within the broader thesis of definitive endoderm specification mechanisms, we detail the experimental validation of these markers, their distinct spatial localization, and their utility in assessing the fidelity of in vitro differentiation models. The document serves as an in-depth guide for researchers and drug development professionals, offering structured quantitative data, detailed protocols, and essential resource toolkits to advance gastrulation research and the development of regenerative medicine protocols.

The definitive endoderm, one of the three primary germ layers formed during gastrulation, gives rise to the epithelial lining of the respiratory and digestive tracts and associated organs including the liver, pancreas, and thyroid. A major challenge in developmental biology and regenerative medicine has been the identification and validation of specific genetic markers that accurately define DE subpopulations as they emerge and become regionally patterned. Definitive endoderm specification is a complex, multi-stage process governed by an intricate signaling and transcriptional network. Historically, the scarcity of early DE-specific markers has hindered the molecular dissection of these events and the evaluation of stem cell differentiation protocols aimed at generating pure DE populations for therapeutic applications.

The validation of region-specific markers such as SPINK3 (serine peptidase inhibitor, Kazal type 3) and TRH (thyrotropin-releasing hormone) represents a significant advancement. These markers reveal an unexpected complexity within the DE lineage, distinguishing proximal (SPINK3-expressing) and distal (TRH-expressing) progenitor populations with potentially different developmental fates [100]. This guide provides a comprehensive resource for the scientific community, detailing the methodologies for their identification, validation, and application within the conceptual framework of gastrulation and endoderm specification research.

Molecular and Spatial Profiles of Key Markers

SPINK3: A Proximal Definitive Endoderm Marker

SPINK3 was identified as a potential DE marker from a microarray screen of definitive endoderm derived from early primitive ectoderm-like (EPL) cells [100]. Its expression profile reveals a highly specific spatial and temporal pattern during mouse embryogenesis:

• Pregastrula & Gastrula Stages: Expression is detected in a band of endoderm immediately distal to the embryonic–extra-embryonic boundary. This region comprises the distal visceral endoderm and the proximal region of the definitive endoderm [100].
• Later Stages (Headfold): Expression marks a region of endoderm separating the yolk sac from the developing gut, solidifying its role as a marker for a boundary population [100].
• Cellular Complexity: The SPINK3-positive domain is a region of high cellular complexity, forming the border between embryonic and extra-embryonic endoderm and containing both proximal definitive endoderm and visceral endoderm cells [100].

TRH: A Distal Definitive Endoderm Marker

TRH serves as a key marker for a distinct DE subpopulation. Its expression is spatially segregated from SPINK3, marking the more distal definitive endoderm population [100]. This distal population is thought to possess different developmental potential compared to the proximal SPINK3-expressing cells, underscoring the early regionalization of the DE lineage.

Other Regional Genes in Early Endoderm

Systematic screens have identified other genes with restricted expression in the developing endoderm, providing a richer toolkit for regional analysis.

• Novel Foregut and Hindgut Markers: A screen of early chicken endoderm identified several region-specific genes at HH stages 10-11, including two novel genes associated with foregut endoderm and eight novel genes specifically expressed in the mid-/hindgut endoderm [101].
• Pan-Endodermal and Patterning Markers: Genes such as Sox17, Foxa2, Gata4, Gata6, Hhex, and Shh are expressed in the DE and play critical roles in its formation and subsequent patterning [102] [6] [1]. The table below summarizes the expression profiles of these and other key markers.

Table 1: Key Markers for Definitive Endoderm and Its Subpopulations

Gene Symbol	Full Name	Expression Domain / Function	Key Characteristics
SPINK3	Serine Peptidase Inhibitor, Kazal type 3	Proximal Definitive Endoderm [100]	Marks boundary between embryonic/extra-embryonic regions; distinct from distal endoderm.
TRH	Thyrotropin-Releasing Hormone	Distal Definitive Endoderm [100]	Spatially distinct from SPINK3; marks a separate progenitor pool.
SOX17	SRY-box transcription factor 17	Pan-Definitive Endoderm [102] [6]	Critical transcription factor for DE specification; a bona fide DE marker.
FOXA2	Forkhead box A2	Pan-Definitive Endoderm [6]	Pioneer transcription factor for DE specification and patterning.
EOMES	Eomesodermin	Primitive Streak / Onset of DE specification [6]	T-box TF; marks onset of endoderm specification; directly regulated by pluripotency factors.
CXCR4	C-X-C Motif Chemokine Receptor 4	Definitive Endoderm (Cell Surface) [102] [6]	Cell surface marker used for FACS isolation of DE; not fully specific, widely expressed.
PYY	Peptide YY	Early Definitive Endoderm [102]	Identified via SAGE; shows exclusive DE expression at early patterning stages.

Experimental Protocols for Marker Identification and Validation

In Vitro Model: EPL Cell Differentiation to Definitive Endoderm

The differentiation of Early Primitive Ectoderm-like (EPL) cells into definitive endoderm (forming EPLEBs) provides a robust in vitro model that closely mimics the in vivo environment for studying DE formation and for identifying novel markers [100].

Detailed Protocol:

• Maintenance of ES Cells: Culture D3 ES cells in standard ES cell medium [100].
• Formation of EPL Cells: Derive EPL cells by culturing ES cells in medium supplemented with 50% MEDII (conditioned medium) for 4 days [100].
• Generation of EPLEBs: Form a single-cell suspension of EPL cells at a density of 1.2 x 10⁵ cells/mL. Culture them in bacterial-grade plates in serum-containing medium (SCM) to allow for aggregate formation. This day is designated Day 0 of differentiation [100].
• Culture Maintenance: Divide aggregates 1:2 on day 2 of culture and replenish the medium with SCM every 2 days [100].
• Modulation of Endoderm Subtypes: To influence the prevalence of proximal (SPINK3+) and distal (TRH+) endoderm populations, EPL cells can be cultured in either SCM or medium supplemented with KnockOut Serum Replacement (KOSRM). Growth factors such as Activin A (30 ng/mL), Wnt3a (100 ng/mL), or BMP4 (10 ng/mL) can be added after 24 hours and maintained during daily medium replenishment until day 5 [100].
• Sample Collection: For gene expression analysis, collect EPLEBs daily at a fixed time point over a 9-day period [100].

Marker Validation via Whole-Mount In Situ Hybridization (WISH)

WISH is a critical technique for validating the spatial expression patterns of candidate genes in mouse embryos.

Detailed Protocol:

• Embryo Collection and Fixation: Dissect embryos from pregnant mice at desired gestational days (e.g., E6.5-E9.5). Fix embryos immediately in 4% paraformaldehyde in PBS (PFA/PBS) for 30 minutes [100].
• Dehydration and Storage: Wash fixed embryos in PBS and dehydrate through a graded methanol series (e.g., 25%, 50%, 75% in PBS, then 100% methanol). Store embryos in 100% methanol at -20°C [100].
• Hybridization: Rehydrate embryos, perform proteinase K treatment for permeability, and pre-hybridize in a suitable buffer. Subsequently, hybridize with a digoxigenin (DIG)-labeled RNA probe specific for the gene of interest (e.g., Spink3, Trh) [100] [102].
• Detection: After stringent post-hybridization washes, incubate embryos with an anti-DIG antibody conjugated to alkaline phosphatase. Develop the color reaction using NBT/BCIP as a substrate [102].
• Analysis: Document the expression patterns using microscopy. This method confirmed that 69% (22/32) of candidate genes from a SAGE screen showed previously uncharacterized, restricted expression in the DE [102].

Gene Expression Analysis

Reverse Transcription-Polymerase Chain Reaction (RT-PCR) and Quantitative PCR (qPCR):

• RNA Extraction: Isolate total RNA from cell aggregates or tissues using TRIzol reagent, followed by DNase I treatment to remove genomic DNA [100].
• cDNA Synthesis: Synthesize cDNA from RNA samples using reverse transcriptase and oligo-dT or random primers [100].
• PCR Amplification: For RT-PCR, amplify gene targets using gene-specific primers for a predetermined number of cycles. Analyze the products via agarose gel electrophoresis [100]. For qPCR, use SYBR Green mix and run reactions on a real-time PCR machine to obtain quantitative data on gene expression levels [100] [6].

Signaling Pathways and Molecular Regulation

The specification of definitive endoderm is controlled by an evolutionarily conserved molecular hierarchy. The core pluripotency factors NANOG, OCT4, and SOX2 play an unexpected and essential role in actively directing DE differentiation, rather than merely maintaining pluripotency [6].

The following diagram illustrates the key molecular pathway governing the transition from pluripotency to definitive endoderm specification, integrating signaling and transcriptional regulation.

Diagram 1: Molecular pathway of definitive endoderm specification.

Pathway Synopsis:

• Signaling Initiation: The canonical Wnt pathway (via Wnt3) induces the expression of Nodal [1]. Activin/Nodal signaling is the primary inducer of mesoderm and endoderm, with high levels being critical for DE specification [6] [1]. The intracellular effectors of this pathway, SMAD2/3, are central to the process.
• Pluripotency Factor Pivot: The core pluripotency factor NANOG is necessary to initiate the expression of the T-box transcription factor EOMESODERMIN (EOMES), which marks the onset of endoderm specification [6]. In contrast, OCT4 and SOX2 initially counteract DE differentiation, with their downregulation being permissive for the process.
• Core Specification Trigger: EOMES interacts with SMAD2/3 to initiate the transcriptional network (including SOX17 and FOXA2) that directs DE formation. EOMES also functions to limit the expression of mesoderm markers, ensuring proper lineage allocation [6].

The Scientist's Toolkit: Essential Research Reagents

Table 2: Key Research Reagent Solutions for Definitive Endoderm Studies

Reagent / Material	Function / Application	Example Usage in Protocols
D3 ES Cells	Murine embryonic stem cell line used as a starting source for in vitro differentiation [100].	Maintenance in ES cell medium prior to EPL cell derivation [100].
MEDII	Conditioned medium used to convert ES cells into Early Primitive Ectoderm-like (EPL) cells [100].	Culture of ES cells in 50% MEDII for 4 days to form EPL cells [100].
Activin A	Recombinant growth factor; mimics Nodal signaling to promote definitive endoderm formation [100] [6].	Added at 30 ng/mL to EPL cell cultures to influence endoderm subtype formation [100].
Wnt3a	Recombinant protein; activates canonical Wnt signaling, a key inducer of primitive streak and endoderm [100] [1].	Added at 100 ng/mL to EPL cell cultures to influence endoderm formation [100].
BMP4	Recombinant bone morphogenetic protein; influences cell fate decisions during germ layer patterning [100].	Added at 10 ng/mL to EPL cell cultures to influence endoderm subtype formation [100].
KnockOut SR	Serum Replacement; a defined formulation used to replace fetal bovine serum for more controlled differentiation [100].	Used as a culture medium (KOSRM) for EPL cells to influence prevalence of endoderm populations [100].
CXCR4 Antibody	Cell surface marker for definitive endoderm; enables isolation and purification of DE populations via FACS [102] [6].	FACS sorting of CXCR4+ cells from differentiated hESC cultures to enrich for DE [102].
pALB-GFP Reporter	ES cell reporter construct with GFP under control of albumin enhancer/promoter; marks hepatic lineage [100].	Used to track and isolate hepatocyte progenitors derived from definitive endoderm [100].

Quantitative Data Analysis and Presentation

The validation of markers relies heavily on quantitative data. The table below summarizes key gene expression trends during the in vitro differentiation of human embryonic stem cells (hESCs) into definitive endoderm, based on microarray and qPCR analyses [6].

Table 3: Gene Expression Dynamics During In Vitro Definitive Endoderm Differentiation of hESCs

Gene Category	Representative Genes	Expression Peak (Day of Differentiation)	Expression Trend (Relative to Pluripotency)
Pluripotency	OCT4, NANOG, SOX2	Day 0 (Pluripotent State)	SOX2 decreases sharply by Day 1; NANOG by Day 2; OCT4 more gradually by Day 3 [6].
Primitive Streak	EOMES, MIXL1, BRACHYURY (T)	Day 1	Rapidly induced within 8-12 hours, peaks at Day 1, and decreases as DE markers rise [6].
Endoderm Progenitors	GOOSECOID, LHX1	Day 2	Induced after Primitive Streak markers, concurrent with early decrease of BRACHYURY [6].
Definitive Endoderm	SOX17, FOXA2	Day 3	Strongly induced from Day 2 onward, with >90% of cells co-expressing CXCR4 by Day 3 [6].

The following diagram visualizes the experimental workflow from stem cell culture to validated marker expression, integrating the key protocols and analyses described in this guide.

Diagram 2: Experimental workflow for definitive endoderm marker validation.

The comprehensive validation of region-specific markers like SPINK3 and TRH has profoundly enhanced our understanding of the cellular and molecular complexities of definitive endoderm specification. These markers provide critical tools for defining distinct progenitor pools within the emerging DE, enabling researchers to move beyond the identification of the germ layer as a whole and toward the dissection of its inherent sub-specialization. The experimental frameworks and technical guides outlined in this document provide a solid foundation for the continued discovery and validation of novel markers.

Looking forward, the application of these validated markers will be crucial in several areas. They will enable the refinement of directed differentiation protocols for pluripotent stem cells, ensuring the generation of the correct regional DE progenitors for specific clinical applications, such as generating pancreatic beta cells or hepatocytes. Furthermore, the integration of these markers with single-cell transcriptomic and epigenomic technologies will allow for the construction of a high-resolution fate map of the endoderm lineage, revealing previously unappreciated developmental trajectories and regulatory checkpoints. Ultimately, the precise toolkit of markers and methods described here will accelerate both basic research into the mechanisms of gastrulation and the translational development of regenerative therapies for endoderm-derived organs.

The molecular mechanisms orchestrating mammalian definitive endoderm (DE) specification during gastrulation establish the foundational competence for all subsequent lineage commitment, including the emergence of hepatic and pancreatic progenitors. Recent research has illuminated that DE formation is not a singular pathway but involves lineage convergence, where cells arrive at a common endodermal fate through distinct developmental trajectories influenced by combinatorial signaling histories [18]. The transcription factor OTX2 has been identified as a critical early regulator, required to activate a subset of endoderm-specific enhancers while simultaneously suppressing select enhancers of other lineages, thereby ensuring timely exit from the primitive streak and correct anterior patterning [15]. This precise spatiotemporal control is mediated through enhancer remodeling, characterized by shifts in histone modifications such as H3K27ac, which direct the essential patterning events giving rise to the foregut, the developmental precursor to the liver and pancreas [15]. The assessment of hepatic and pancreatic progenitor potential, therefore, must be contextualized within these early specification events, evaluating functional maturity against the benchmark of developmental principles recapitulated in vitro.

Key Signaling Pathways Governing Progenitor Specification

The fate of definitive endoderm is directed by a tightly regulated interplay of extrinsic signaling cues. The combination of activin and BMP4 signaling plays a particularly pivotal role, interacting both synergistically and antagonistically to guide fate decisions [18]. Cells pass through temporal windows of signaling competency, and the relative concentration of these factors dictates whether a cell adopts a direct route from pluripotency to DE or an indirect route via a mesoderm progenitor state [18]. OTX2 operates within this signaling landscape, and its depletion leads to abnormal DE specification, characterized by altered expression of components and transcriptional targets of the canonical WNT signaling pathway, perturbed adhesion, and migration programs [15]. The following diagram illustrates the core signaling logic and transcriptional network that governs the specification of definitive endoderm and its subsequent patterning into anterior fates.

Quantitative Functional Assays for Progenitor Maturation

The functional maturity of endoderm-derived progenitors is quantitatively assessed through a suite of assays measuring specific biochemical and genetic outputs. These metrics provide objective benchmarks for comparing differentiation protocols and evaluating the therapeutic potential of generated cells. The tables below summarize key quantitative assays for hepatic and pancreatic progenitors, compiling data from recent literature to establish expected value ranges.

Table 1: Quantitative Functional Assays for Hepatic Progenitors

Assay Type	Specific Marker/Function Measured	Measurement Technique	Typical Output Range (Mature Progenitor)	Key Significance
Albumin Secretion	ALB (Albumin protein)	ELISA	100–500 ng/mL/24h [103]	Indicates synthetic function of hepatocyte-like cells
Urea Production	Urea cycle function	Colorimetric Assay	10–50 µg/mL/24h [103]	Demonstrates detoxification metabolic capacity
Glycogen Storage	Intracellular glycogen	PAS Staining / Quantification	PAS Score: 3+ (Qualitative)	Assesses energy storage capability
CYP450 Activity	Metabolism (e.g., CYP3A4)	Luminescent/Chemiluminescent Assay	2–5 fold induction over baseline [103]	Critical for drug metabolism studies
Gene Expression	AFP, ALB, HNF4A	qRT-PCR (Fold Change)	ALB: >1000x; HNF4A: >500x [103]	Confirms hepatic transcriptional program

Table 2: Quantitative Functional Assays for Pancreatic Progenitors

Assay Type	Specific Marker/Function Measured	Measurement Technique	Typical Output Range (Mature Progenitor/Beta-Cell)	Key Significance
Glucose-Stimulated Insulin Secretion (GSIS)	Dynamic insulin release in response to glucose	ELISA / RIA (Low vs. High Glucose)	Stimulation Index (SI): 2–5 [103]	Gold standard for beta-cell function
C-Peptide Release	Endogenous insulin secretion	ELISA (MMTT)	>0.3 ng/mL [103]	Confirms de novo insulin production
Intracellular Insulin Content	Insulin storage	ELISA / RIA (per cell DNA)	1–10 µg/mg protein	Measures insulin production and storage capacity
Gene Expression	INS, PDX1, NKX6-1, MAFA	qRT-PCR (Fold Change)	PDX1: >100x; NKX6-1: >50x [103]	Quantifies key beta-cell transcription factors
In Vivo Function (Mouse Model)	Blood glucose normalization	Transplantation into diabetic mice	Insulin independence in <75 days [103]	Ultimate test of therapeutic functionality

Experimental Workflow for Progenitor Differentiation and Assessment

The generation of functional hepatic and pancreatic progenitors from pluripotent stem cells is a multi-stage process that mimics in vivo development. The protocol hinges on the sequential exposure to specific morphogens and small molecules to direct cellular fate. The workflow culminates in a comprehensive assessment of the resulting progenitors using the quantitative assays detailed in the previous section. The following diagram outlines the key stages and decision points in a standard differentiation and assessment protocol.

Detailed Protocol for Definitive Endoderm Differentiation

This protocol is adapted from methods used to generate DE for subsequent pancreatic and hepatic differentiation [103] [18].

• Starting Material: Human Pluripotent Stem Cells (hPSCs) at 80-90% confluence.
• Day 0 - Induction: Replace medium with DE induction base medium supplemented with Activin A (100 ng/mL), Wnt3a (50 ng/mL), and 0.2% FBS. Incubate for 24 hours.
• Day 1-3 - Maturation: Replace medium with DE induction base medium supplemented with Activin A (100 ng/mL) and 2% FBS for the remaining 2 days.
• Quality Control: On Day 3-4, assess differentiation efficiency via flow cytometry. A successful differentiation should yield >80% SOX17+/FOXA2+ double-positive cells. Cells are now primed for anterior patterning.

The Scientist's Toolkit: Research Reagent Solutions

The consistent and robust differentiation of progenitors relies on a core set of high-quality reagents. The following table details essential materials, their functions, and example specifications based on common usage in the field.

Table 3: Essential Research Reagents for Endoderm and Progenitor Differentiation

Reagent / Material	Core Function	Key Application Notes
Activin A	A TGF-β family member; mimics Nodal signaling to induce definitive endoderm formation.	Critical for initial DE differentiation; typical working concentration 100-500 ng/mL [18].
BMP4	A BMP family member; directs cell fate in combination with Activin, influences route to DE.	Concentration and timing are critical; can induce mesoderm or support endoderm [18].
CHIR99021	A GSK-3β inhibitor that activates Wnt/β-catenin signaling.	Used to enhance DE differentiation efficiency; concentration must be titrated (typically 3-6 µM).
FGF10	A fibroblast growth factor; supports patterning of anterior foregut endoderm and pancreatic progenitors.	Essential for posterior foregut and pancreatic specification; typical concentration 50-100 ng/mL.
Retinoic Acid (RA)	A morphogen derived from Vitamin A; patterns the gut tube and promotes pancreatic commitment.	Concentration and timing are precise; used for pancreatic and hepatic specification.
Y-27632 (ROCKi)	A ROCK inhibitor; enhances survival of dissociated hPSCs and progenitor cells.	Used during passaging and in freezing media to reduce apoptosis; typical working concentration 10 µM.
Antibody: SOX17	Transcription factor; a definitive marker for definitive endoderm.	Used in flow cytometry and immunocytochemistry to quantify DE differentiation efficiency.
Antibody: FOXA2	Transcription factor; a definitive marker for definitive endoderm and foregut.	Used in conjunction with SOX17 to confirm definitive endoderm identity.
Antibody: PDX1	Transcription factor; marks pancreatic progenitors and is crucial for beta-cell development.	Key marker for assessing pancreatic specification after foregut patterning.
Albumin ELISA Kit	Quantifies albumin secretion from hepatic progenitors and hepatocyte-like cells.	A standard functional readout for hepatic maturation [103].

The functional assessment of endoderm-derived progenitors is intrinsically linked to the molecular principles of definitive endoderm specification during gastrulation. Insights from fundamental research, such as the role of OTX2 in enhancer remodeling and the dual role of BMP4 in guiding lineage convergence, provide a critical framework for interpreting in vitro differentiation outcomes and refining protocols [15] [18]. The quantitative benchmarks and standardized protocols outlined in this guide serve to bridge the gap between developmental biology and translational application. As the field progresses, future work must focus on achieving full functional maturity and stability in stem-cell-derived cells, addressing challenges such as immunogenicity and scaling for clinical therapy [103]. A deeper integration of gastrulation research will undoubtedly illuminate new pathways to manipulate and enhance the developmental potential of hepatic and pancreatic progenitors for regenerative medicine.

The endoderm, one of the three primary germ layers, gives rise to the epithelial linings of the respiratory and digestive tracts and associated organs. Its development is characterized by a fundamental dichotomy between the embryonic (or definitive) endoderm and the extra-embryonic endoderm, which differ in developmental origin, transcriptional programming, and ultimate function. The embryonic endoderm forms the basis of the future gastrointestinal tract, while the extra-embryonic endoderm contributes to supportive structures like the yolk sac. Understanding the distinct regulatory mechanisms and signaling pathways governing these lineages is crucial for developmental biology and regenerative medicine. This review synthesizes current knowledge on the comparative transcriptomic signatures and functional roles of these two lineages, with a specific focus on their specification mechanisms within the broader context of gastrulation research. We provide a detailed analysis of signaling pathways, key transcriptional regulators, and experimental methodologies for studying endoderm development, offering a resource for researchers and drug development professionals working on differentiation protocols and disease modeling.

The segregation of embryonic and extra-embryonic endoderm represents one of the earliest lineage specification events in mammalian development. During gastrulation, a highly coordinated process in which the three germ layers are established, embryonic endoderm emerges from the primitive streak through an epithelial-to-mesenchymal transition (EMT) and integrates into the existing gut tube [104]. In contrast, the extra-embryonic endoderm originates from the primitive endoderm of the blastocyst, which gives rise to both the parietal endoderm and visceral endoderm [105] [106]. These lineages, despite their distinct origins, exhibit remarkable interplay; recent lineage-tracing studies in mice have revealed that extra-embryonic cells contribute to the gut endoderm and initially converge to transcriptionally resemble their embryonic counterparts [107].

The functional divergence between these lineages is profound. The embryonic endoderm constructs the linings of two primary tubes: the digestive tube (which buds to form the liver, gallbladder, and pancreas) and the respiratory tube [104]. The extra-embryonic endoderm, primarily through the visceral endoderm, plays crucial roles in nutrient transport, metabolic exchange, and as a source of inductive signals that pattern the early embryo [108] [105]. A surprising recent finding is that these intercalated extra-embryonic gut cells are subsequently eliminated via programmed cell death and cleared by neighboring embryonic cells through non-professional phagocytosis by mid-gestation, a process that fails to occur in p53-mutant embryos [107].

Transcriptional Profiles and Key Regulators

The distinct identities of the embryonic and extra-embryonic endoderm are established and maintained by complex transcriptional networks. Comparative transcriptomic analyses reveal lineage-specific gene expression patterns driven by core transcription factors.

Table 1: Key Transcription Factors in Endoderm Lineages

Transcription Factor	Role in Embryonic Endoderm	Role in Extra-Embryonic Endoderm	Regulatory Targets/Interactions
SOX17	Definitive endoderm specification [109]	Primitive endoderm specification; visceral endoderm differentiation [105] [106]	Cooperates with GATA factors; regulates FoxA2
GATA6	Limited expression; posterior foregut patterning [45]	Master regulator of primitive endoderm; necessary for parietal and visceral endoderm [106]	Upstream of Sox17; interacts with Gata4; regulates Hnf4
GATA4	Liver and heart development [45]	Visceral endoderm specification and function [106]	Forms complex with Gata6; regulates genes for nutrient transport
FOXA2	Definitive endoderm patterning; foregut and midgut specification [104] [109]	Anterior Visceral Endoderm (AVE) specification [105] [106]	Pioneer factor; opens chromatin for other regulators
HNF4	Hepatocyte differentiation and function [110]	Expressed in visceral endoderm [110]	Regulates apolipoprotein and other metabolic genes
OTX2	Anterior definitive endoderm	Critical for AVE formation and function	Restricts BMP signaling to maintain AVE identity

The extra-embryonic endoderm exhibits a distinct non-canonical epigenome, characterized by widespread DNA methylation differences compared to embryonic cells, and this epigenetic memory is retained even after extra-embryonic cells intercalate into the embryonic gut tube [107]. This persistent epigenetic landscape underlies latent transcriptional differences and may explain the ultimate elimination of these cells. Single-cell RNA sequencing has further refined our understanding of the heterogeneity within the extra-embryonic endoderm, identifying distinct transcriptional states associated with parietal endoderm, visceral endoderm, and anterior visceral endoderm (AVE) [105] [109].

Signaling Pathways Governing Cell Fate and Differentiation

The specification and maturation of both embryonic and extra-embryonic endoderm are directed by a core set of evolutionarily conserved signaling pathways. The precise spatiotemporal activation and inhibition of these pathways determine cell fate decisions.

Key Signaling Pathways in Endoderm Development

• Nodal Signaling: The Nodal signaling pathway plays a central role in the differentiation and maintenance of stem cell types from the peri-implantation embryo. In extra-embryonic endoderm stem (XEN) cells, Nodal and its co-receptor Cripto (Tdgf1) promote differentiation toward visceral endoderm and anterior visceral endoderm (AVE) fates. This process requires the EGF-CFC co-receptor Cryptic (Cfc1) and is inhibited by the Alk4/Alk5/Alk7 inhibitor SB431542, indicating dependence on type I receptor kinase activity [105].
• BMP, WNT, and TGF-β Signaling: Efficient differentiation of human embryonic stem cells (hESCs) into extraembryonic mesoderm (ExM) and endodermal lineages requires the coordinated modulation of BMP, WNT, and Nodal (a TGF-β superfamily member) signaling. Activation of these pathways, particularly through combined treatment with CHIR99021 (a GSK3 inhibitor that activates WNT signaling) and BMP4, can rapidly induce naive hESCs to differentiate into ExM-like cells with high efficiency (~90% within 4-5 days) [45]. This differentiation proceeds through a primitive streak-like intermediate (PSLI), recapitulating in vivo developmental stages [45].
• Sonic Hedgehog (Shh) Signaling: In the developing gut tube, Sonic hedgehog (Shh) is secreted by the endoderm at different concentrations along the anterior-posterior axis. This signaling targets the surrounding mesoderm, inducing a nested expression of Hox genes that subsequently patterns the endoderm itself. This epithelial-mesenchymal feedback loop is essential for regional specification of the digestive tube into esophagus, stomach, small intestine, and colon [104].

The following diagram illustrates the key signaling pathways and their interactions in specifying endoderm fates:

Experimental Models and Methodologies

The study of endoderm development relies on sophisticated in vitro stem cell models and precise differentiation protocols that recapitulate key aspects of embryogenesis.

Stem Cell-Derived Embryo Models and Differentiation Protocols

Embryonic stem cells (ESCs) possess the intrinsic ability to self-organize when provided with appropriate inductive cues, forming embryo models that serve as powerful alternatives to studying early development in vitro [108]. The inclusion of extraembryonic stem cell lines—such as trophoblast stem cells (TSCs), extraembryonic endoderm cells (XENs), and hypoblast stem cells—has enabled the creation of more sophisticated and precise models that better mimic the in vivo environment [108] [111].

A critical protocol for generating extraembryonic endoderm lineages involves the directed differentiation of XEN cells. When treated with Nodal or Cripto, XEN cells (which normally resemble parietal endoderm) upregulate markers of visceral endoderm and anterior visceral endoderm (AVE), including increased expression of Sox17, FoxA2, and Otx2 [105]. This differentiation requires the EGF-CFC co-receptor Cryptic and is inhibited by the small molecule SB431542, an Alk4/Alk5/Alk7 inhibitor [105].

For generating embryonic endoderm and its derivatives, a common approach involves differentiating hESCs through a mesendoderm progenitor stage. One established protocol begins with mesendoderm cells and separates them into early endoderm and mesoderm progenitor cells using CXCR4 and PDGFRA cell surface markers [32]. The resulting endoderm progenitor cells can be further differentiated toward foregut and hindgut fates, with studies demonstrating the crucial role of FGF2 signaling in maintaining hepatic gene signatures [32] [110].

Table 2: Experimental Models for Studying Endoderm Development

Model System	Key Features	Applications	Reference Protocol
XEN Cells	Resemble primitive endoderm; can be derived from mouse blastocysts or via differentiation.	Study of parietal and visceral endoderm differentiation; response to Nodal/Cripto signaling.	[105]
Embryoid Bodies (EBs)	3D aggregates of ESCs containing ectoderm, mesoderm, and endoderm tissues.	Modeling early endoderm differentiation and yolk sac development; gene expression studies.	[110]
hESC-Derived ExM Model	Efficient differentiation of naive hESCs to extraembryonic mesoderm in 4-5 days.	Study of post-implantation development; signaling pathway analysis; lineage specification.	[45]
Stem Cell Co-culture	Co-culture of ESCs with TSCs and XEN cells to study lineage crosstalk.	Investigation of embryonic-extraembryonic interactions; ECM signaling.	[111]
Two-Color Lineage Tracing	Diploid embryos with distinct fluorescent labels for embryonic and extraembryonic cells.	Fate mapping of extraembryonic cells in the gut; study of cell death and clearance mechanisms.	[107]

The Scientist's Toolkit: Essential Research Reagents

Table 3: Key Research Reagents for Endoderm Studies

Reagent/Category	Specific Examples	Function in Research
Small Molecule Inhibitors/Activators	CHIR99021 (GSK3i), BMP4, SB431542 (Alk4/5/7i), PD0325901 (MEKi)	Modulate key signaling pathways (WNT, BMP, Nodal, FGF) to direct differentiation.
Growth Factors/Cytokines	FGF2, Activin A, Nodal, Cripto (Tdgf1)	Promote specific lineage commitment and stem cell maintenance.
Cell Surface Markers for FACS	CXCR4, PDGFRA, E-Cadherin (CDH1), KDR (FLK1)	Isolation and purification of specific progenitor populations (e.g., mesendoderm, endoderm).
Antibodies for Immunostaining	Anti-GATA6, Anti-SOX17, Anti-FOXA2, Anti-OCT4, Anti-E-CADHERIN	Lineage identification and validation of differentiated cells via immunofluorescence.
Stem Cell Culture Media	2i/LIF (for naive mESCs), FA (for EpiSCs), FH-N2B27 (for differentiation)	Maintain pluripotent stem cells in specific states or direct differentiation.
Lineage Tracing Tools	Fluorescent reporters (GFP, mCherry), Cre-lox systems	Fate mapping and tracking of specific cell populations over time.

The following workflow diagram outlines a typical experimental process for generating and analyzing endoderm lineages from stem cells:

Discussion and Future Perspectives

The comparative analysis of embryonic and extra-embryonic endoderm reveals a sophisticated developmental system governed by precise transcriptional networks and signaling pathways. While these lineages follow distinct developmental trajectories, they exhibit remarkable plasticity and interaction throughout embryogenesis. The emerging paradigm from recent studies suggests that the initial pluripotent state of progenitor cells significantly influences their response to differentiation signals and the resulting cellular phenotypes [45]. Furthermore, the discovery that extra-embryonic cells contributing to the embryonic gut retain their unique epigenetic memory and are later eliminated reveals a previously unappreciated quality control mechanism in development [107].

From a technical perspective, the field is rapidly advancing through the development of integrated reference tools. The recent creation of a comprehensive human embryo transcriptome reference spanning zygote to gastrula stages provides an essential benchmark for authenticating stem cell-derived embryo models and ensuring accurate lineage annotation [109]. Such resources, combined with the experimental protocols outlined in this review, will accelerate research into human development and disease.

Future research directions include elucidating the mechanisms of epigenetic memory in extra-embryonic cells, understanding the physiological significance of their elimination from the embryonic gut, and refining differentiation protocols to generate more mature and functional endodermal cell types for regenerative medicine. The continued refinement of stem cell-based embryo models will further illuminate the complex signaling crosstalk between embryonic and extra-embryonic tissues that orchestrates mammalian development.

The formation of the definitive endoderm (DE) during gastrulation is a fundamental process in vertebrate development, giving rise to the epithelial lining of the respiratory and gastrointestinal tracts and associated organs such as the liver, pancreas, and thyroid. This whitepaper provides a comparative analysis of the molecular and cellular mechanisms governing DE specification in mouse, zebrafish, and human model systems. While the core transcriptional regulators, including Foxa2, Eomesodermin (Eomes), and Sox17, exhibit deep evolutionary conservation, significant divergences exist in upstream regulatory inputs, functional redundancy, and specific morphogenetic cell behaviors. Understanding these conserved and divergent features is critical for interpreting model system data, improving directed differentiation of stem cells for regenerative medicine, and identifying potential species-specific barriers in drug development pipelines.

The definitive endoderm is one of the three primary germ layers specified during gastrulation. In mammals, this process gives rise to the embryonic gut tube and its derivative organs, distinct from the extra-embryonic primitive endoderm [76]. Proper DE development is essential for the formation of vital organs, and errors in this process can lead to congenital disorders. The molecular circuitry controlling DE specification serves as a paradigm for understanding cell fate decisions and epithelial plasticity, with direct implications for cancer metastasis research where related epithelial-to-mesenchymal transition (EMT) programs are co-opted [3]. This analysis frames DE specification within the broader context of gastrulation research, highlighting how cross-species studies have refined our understanding of conserved core principles and species-specific adaptations.

Molecular Regulation of Definitive Endoderm

Conserved Core Transcriptional Network

A core set of transcription factors governs DE specification across mouse, zebrafish, and human systems. These factors operate within a hierarchical network, often initiated by signaling from the Nodal pathway.

• Eomesodermin (Eomes): This T-box transcription factor is a key early regulator marking the onset of endoderm specification. In mouse and human, Eomes is directly controlled by the pluripotency factor NANOG and, in turn, interacts with SMAD2/3 to initiate the DE transcriptional network [6] [24]. Its function is conserved in zebrafish, where Eomesa can induce ectopic endoderm; however, its loss-of-function phenotype is less severe due to functional redundancy with other T-box factors [112].
• Foxa2 and Sox17: These transcription factors are hallmark markers of specified DE. Foxa2 acts as an epithelial gatekeeper and EMT suppressor in mouse, shielding the endoderm from undergoing a full mesenchymal transition [3]. Sox17 is a critical downstream effector, with its activation in zebrafish involving a synergistic interaction between Sox32 and Pou5f1 (Oct4) on its cis-regulatory elements [37].
• GATA Factors: Gata5 in zebrafish works in conjunction with Eomesa and Mixl1 to specify endoderm fate, demonstrating the conserved role of GATA factors in this process [112].

Divergent Upstream Regulation and Functional Redundancy

While the core network is conserved, its regulation and the functional relationships between its components show notable divergence.

• Role of Pluripotency Factors: In human embryonic stem cells (hESCs) and mouse epiblast stem cells (mEpiSCs), the core pluripotency factors OCT4, SOX2, and NANOG actively direct DE specification rather than simply blocking differentiation. NANOG is necessary to initiate EOMES expression [6] [24]. This contrasts with classical views of pluripotency factors solely maintaining an undifferentiated state.
• Functional Redundancy in Zebrafish: The severe phenotype of Eomes mutant mouse embryos, which fail to form DE, is not recapitulated in zebrafish eomesa mutants. This is attributed to functional redundancy with the Tbx6 subfamily member Tbx16, which is absent in placental mammals [112]. This difference highlights how variations in the complement of T-box factors across species can lead to divergent loss-of-function phenotypes.
• Signaling Pathways: The Nodal signaling pathway is a conserved inducer of endoderm. However, the specific requirements for its co-factors and the context-dependent interpretation of its signal can vary. Furthermore, the repression of Fgf and Bmp signaling is a conserved requirement for endoderm specification in zebrafish [37].

Table 1: Key Transcription Factors in Definitive Endoderm Specification

Transcription Factor	Mouse Function	Zebrafish Function	Human Function (from in vitro models)
Eomes	Master regulator; essential for DE formation; activated by Nanog [6]	Required for mesendoderm induction; functional redundancy with Tbx16 [112]	Master regulator; marks onset of specification; cooperates with SMAD2/3 [6] [24]
Foxa2	DE marker; EMT suppressor; epithelial gatekeeper [3]	DE marker [112]	DE marker (FOXA2) [6]
Sox17	DE marker [3]	DE marker; activated by Sox32 and Pou5f1 [37]	DE marker (SOX17) [6]
Gata5/6	Involved in endoderm development	Works with Eomesa and Mixl1 for endoderm specification [112]	Involved in endoderm development

Figure 1: Conserved Core Transcriptional Network of Definitive Endoderm Specification. The hierarchy illustrates the central role of Eomes downstream of Nodal signaling and pluripotency factors. The dashed line from Tbx16 to Sox17 represents the functional redundancy specific to zebrafish.

Morphogenetic Processes in Endoderm Formation

Conserved and Divergent Cellular Behaviors

The physical movements and cellular transformations that internalize the endoderm during gastrulation display a mix of deeply conserved and species-specific features.

• Epithelial Plasticity vs. EMT/MET Cycle: A paradigm-shifting finding in the mouse model is that definitive endoderm formation occurs independent of a complete EMT-Mesenchymal-to-Epithelial Transition (MET) cycle. While the mesoderm is formed via a classical EMT driven by Snail1, Foxa2+ endoderm progenitors leave the epiblast using mechanisms of epithelial cell plasticity, maintaining E-cadherin expression while upregulating N-cadherin [3]. This challenges the long-held assumption, based partly on zebrafish and Drosophila studies, that DE progenitors universally undergo an EMT-MET cycle [3] [76].
• Collective Cell Migration and Intercalation: A conserved morphogenetic behavior is the collective migration of endoderm progenitors and their subsequent intercalation into an existing epithelium. In mouse, Foxa2high transitory progenitors migrate between the epiblast and visceral endoderm before intercalating into the outside visceral endoderm layer [3] [76]. A similar process of intercalation occurs in other model organisms, highlighting a shared solution for integrating nascent endodermal cells [76].

Species-Specific Morphological Pathways

The overall embryological context of endoderm internalization varies significantly.

• Mammals (Mouse/Human): The definitive endoderm is specified from the epiblast within the primitive streak. After specification and migration, these cells emerge on the surface of the embryo-proper before being later re-internalized to form the gut tube [76]. Furthermore, in mouse, there is a mixing of embryonic definitive endoderm and extra-embryonic visceral endoderm cells in the final gut tube, with visceral endoderm contributors comprising a significant minority [76].
• Zebrafish: Endoderm cells are internalized during gastrulation and, unlike in amniotes, remain inside the embryo throughout development without a phase where they emerge on the surface [76].

Table 2: Comparative Morphogenesis of Definitive Endoderm

Morphogenetic Process	Mouse Model	Zebrafish Model
EMT in DE Formation	Independent of Snail1; driven by epithelial cell plasticity [3]	Involves classical EMT (based on earlier models) [3]
Cadherin Switch	Maintains E-cadherin; co-upregulates N-cadherin [3]	Classical E- to N-cadherin switch (assumed)
Cell Migration	Collective migration of Foxa2+ progenitors [3]	Collective migration [76]
Final Internalization	Progenitors intercalate into visceral endoderm; later re-internalized to form gut tube [3] [76]	Cells remain internal after gastrulation [76]

Experimental Protocols and Methodologies

In Vitro Definitive Endoderm Differentiation from Pluripotent Stem Cells

A key protocol for studying human and mouse endoderm specification involves the directed differentiation of pluripotent stem cells. This method recapitulates key in vivo events and allows for experimental manipulation.

• Cell Lines: Human Embryonic Stem Cells (hESCs), human induced Pluripotent Stem Cells (hiPSCs), or mouse Epiblast Stem Cells (mEpiSCs) [6].
• Culture Conditions:
  • Base Medium: Chemically Defined Medium (CDM) [6].
  • Key Supplements:
    • Activin A: To activate Nodal/SMAD2/3 signaling pathway.
    • BMP4: To promote primitive streak-like state.
    • FGF2: To support differentiation.
    • LY294002 (PI3K Inhibitor): To enhance DE specification by inhibiting survival signals for undifferentiated cells [6].
• Protocol Workflow:
  • Day 0: Initiate differentiation by transferring pluripotent stem cells to CDM supplemented with Activin, BMP4, FGF2, and LY294002.
  • Day 1: Peak expression of primitive streak markers (EOMES, MIXL1, BRACHYURY) is observed. Pluripotency markers (SOX2, NANOG) begin to decrease.
  • Day 2: Transition to endodermal progenitors marked by increased GOOSECOID and LHX1. SOX17 expression begins.
  • Day 3: High co-expression of DE markers SOX17 and FOXA2. ~90% of cells are typically positive for the surface marker CXCR4 [6].

Figure 2: Experimental Workflow for In Vitro Definitive Endoderm Differentiation. The diagram outlines the stepwise differentiation protocol from pluripotent stem cells to definitive endoderm, using a defined cytokine and small molecule cocktail.

Lineage Tracing and Single-Cell RNA Sequencing in Mouse Embryos

To resolve lineage segregation and transcriptional dynamics in vivo, a combination of precise lineage labeling and high-resolution transcriptomics is used.

• Genetic Tools: Generation of knock-in reporter mouse embryos or embryonic stem cells, such as Foxa2–Venus fusion (FVF) and Sox17–mCherry fusion (SCF) double reporters [3].
• Methodology:
  • Time-Resolved Lineage Labeling: The reporter alleles allow for the visualization and isolation of specific progenitor populations (e.g., FVFlow epiblast progenitors, FVFhigh transitory progenitors, FVFhigh/SCF+ definitive endoderm) at precise developmental stages [3].
  • Cell Sorting: Fluorescence-Activated Cell Sorting (FACS) is used to isolate these distinct, reporter-defined populations from dissected embryos [3].
  • High-Throughput Single-Cell RNA Sequencing (scRNA-seq): Sorted cells are subjected to scRNA-seq to obtain global transcriptional profiles [3].
  • Computational Analysis: Data is analyzed using algorithms like scVelo (for RNA velocity) and CellRank (for trajectory inference and fate probability calculation) to reconstruct lineage relationships and identify driver genes [3].

The Scientist's Toolkit: Key Research Reagents

This table catalogues essential reagents and tools used in modern definitive endoderm research, as evidenced by the cited studies.

Table 3: Essential Research Reagents for Definitive Endoderm Studies

Reagent / Tool	Function / Application	Example Use Case
Foxa2-Venus / Sox17-mCherry knock-in reporters	Precise lineage labeling and live tracking of endoderm progenitors in mouse models.	Isolation of transitory endoderm progenitors for scRNA-seq [3].
T-GFP / Foxa2-tagRFP dual-reporter mESC line	Simultaneous monitoring and sorting of mesoderm and endoderm lineages in vitro.	Studying mesoderm and endoderm segregation in differentiation cultures [3].
Activin A	Recombinant protein to activate Nodal/SMAD2/3 signaling.	Key component in directed differentiation protocols to specify DE from hESCs [6].
LY294002	Small molecule inhibitor of PI3K pathway.	Enhances DE differentiation efficiency by suppressing pluripotency [6].
Anti-E-Cadherin / N-Cadherin antibodies	Immunostaining to assess epithelial and mesenchymal states.	Demonstrating the unique cadherin profile of mouse endoderm progenitors (E-cadherin +, N-cadherin +) [3].
scVelo & CellRank software	Computational tools for dynamical model of scRNA-seq data and robust trajectory inference.	Determining fate probabilities and identifying lineage driver genes from scRNA-seq data [3].

Implications for Drug Development and Disease Modeling

For researchers in drug development, understanding these cross-species mechanisms is critical.

• Stem Cell Differentiation Protocols: The conserved role of EOMES downstream of NODAL and pluripotency factors provides a validated target for optimizing the production of DE-derived cells (e.g., hepatocytes, pancreatic beta cells) for cell replacement therapies. The human stem cell differentiation protocol [6] is a direct application of this knowledge.
• Modeling Human Disease: The finding that human endoderm specification is regulated by cell size and actomyosin-dependent AMOT-YAP signaling [38] highlights a biomechanical layer of regulation that may not be fully recapitulated in all animal models. This is crucial for modeling human congenital disorders.
• Interpreting Animal Model Data: The functional redundancy of Eomesa with Tbx16 in zebrafish [112] serves as a critical cautionary note. A gene's essential function in mouse or human may be masked in zebrafish by redundant pathways, potentially leading to misinterpretation of genetic screening results. Conversely, the divergent morphogenetic mechanism (EMT-independent) in mouse [3] suggests that therapies targeting EMT in cancer may need careful evaluation regarding their effects on endoderm-derived tissues.

The in vitro differentiation of pluripotent stem cells into definitive endoderm (DE) represents the critical first step for generating cells comprising organs such as the liver, pancreas, lungs, and intestine. Despite protocol refinements, this process invariably generates heterogeneous populations where a proportion of cells fail to differentiate properly and maintain expression of pluripotency factors such as Oct4 [113]. This heterogeneity poses significant challenges for developmental biology research, disease modeling, and regenerative medicine applications. Single-cell omics technologies have emerged as powerful tools to dissect this complexity, enabling researchers to resolve cellular diversity, identify novel regulators, reconstruct developmental trajectories, and decode the molecular networks governing endodermal specification [114] [115]. These approaches have transformed our understanding of endoderm development from a linear differentiation model to a complex multidimensional process involving asynchronous cell fate decisions, dynamic gene regulatory networks, and intricate cell-cell communication events. This technical guide examines how single-cell approaches are revolutionizing our understanding of definitive endoderm specification mechanisms within the broader context of gastrulation research, providing scientists with powerful methodologies to overcome heterogeneity challenges in endoderm differentiation studies.

Key Single-Cell Omics Applications in Endoderm Research

Resolving Developmental Heterogeneity and Lineage Relationships

Single-cell RNA sequencing (scRNA-seq) has enabled unprecedented resolution of cellular heterogeneity during endoderm differentiation and organogenesis. By profiling individual cells across developmental timepoints, researchers can identify distinct subpopulations that are masked in bulk analyses. A study differentiating human embryonic stem cells to DE identified a subpopulation of residual Oct4-positive cells that failed to properly differentiate, with single-cell analysis revealing high expression of metallothionein genes and corresponding elevated intracellular zinc levels as a correlate of failed differentiation [113]. This discovery provides insights into potential mechanisms underlying differentiation inefficiency.

Comprehensive mapping of embryonic development using scRNA-seq has revealed the complex lineage relationships during endoderm formation. A massive-scale study profiling 12.4 million nuclei from 83 precisely-staged mouse embryos from late gastrulation to birth created a rooted tree of cell-type relationships spanning prenatal development, systematically nominating candidate transcription factors driving the in vivo differentiation of hundreds of cell types [116]. Such datasets provide invaluable references for comparing in vitro differentiation models to in vivo development.

Mapping Signaling Networks and Cellular Crosstalk

Cell-cell communication between endoderm and surrounding tissues represents a critical mechanism patterning the developing gut tube. scRNA-seq of the embryonic mouse foregut revealed a surprising diversity of splanchnic mesoderm (SM) cell types that develop in close register with organ-specific epithelium [117]. This study inferred a spatiotemporal signaling network of endoderm-mesoderm interactions coordinating foregut organogenesis, validating predictions with mouse genetics to show the importance of endoderm-derived signals in mesoderm patterning, particularly highlighting differential hedgehog signaling from the epithelium patterning the SM into gut tube versus liver mesenchyme [117].

Spatial characterization of endoderm patterning identified four major regions in the definitive endoderm at the 9-somite stage: foregut (FG), lip of anterior intestinal portal (AL), midgut (MG), and hindgut (HG), with each region subdividing into distinct subregions [115] [118]. This spatial patterning establishes the foundation for subsequent endodermal organ development, with different progenitor domains exhibiting distinct transcriptional programs and developmental potentials.

Identifying Novel Regulators of Cell Fate Decisions

The reconstruction of differentiation trajectories from scRNA-seq data enables identification of novel regulators of cell fate decisions. Analysis of the transition from Brachyury (T)+ mesendoderm to CXCR4+ DE identified KLF8 as a pivotal regulator of this transition [114]. Functional validation using a T-2A-EGFP knock-in reporter engineered by CRISPR/Cas9 demonstrated that KLF8 knockdown delayed differentiation, while overexpression enhanced DE marker expression without affecting mesodermal genes, indicating specific activity in the mesendoderm to DE transition [114].

Integration of single-cell transcriptomics with single-cell epigenomics has further enhanced our ability to identify regulatory elements driving endoderm specification. Multi-omics analysis of H3K27ac and H3K4me1 during mouse gastrulation revealed asynchronous cell fate commitment across germ layers at distinct histone modification levels, with a "time lag" transition pattern between enhancer activation and gene expression during germ-layer specification [17]. This approach constructed a gene regulatory network centered on pivotal transcription factors, highlighting the potential critical role of Cdkn1c in mesoderm lineage specification [17].

Table 1: Key Single-Cell Omics Studies in Endoderm Development

Study Focus	Key Findings	Technical Approach	Reference
DE differentiation efficiency	Metallothionein gene expression and high intracellular zinc in persistent Oct4+ cells	scRNA-seq + X-ray fluorescence microscopy	[113]
Foregut organogenesis	Diversity of SM subtypes; signaling network coordinating endoderm-mesoderm interactions	scRNA-seq of mouse embryonic foregut	[117]
Mesendoderm to DE transition	KLF8 as novel regulator of DE differentiation	Time course scRNA-seq + CRISPR/Cas9 validation	[114]
Endoderm patterning	Four major endoderm regions with distinct developmental pathways	scRNA-seq of microdissected endoderm	[115]
Population genetics	Dynamic eQTLs during endoderm differentiation; 349 novel regulatory variants	scRNA-seq of 125 iPSC lines	[119]

Experimental Protocols and Methodologies

Sample Preparation and Cell Isolation

Successful single-cell analysis of endoderm populations requires careful sample preparation and cell isolation. For in vitro differentiated cultures, cells are typically dissociated using enzymatic methods (TrypLE or Accutase) to generate single-cell suspensions [114]. For embryonic tissues, microdissection techniques are crucial for isolating specific endodermal regions. Studies of mouse embryonic endoderm have employed careful microdissection of various parts of the endoderm tissue, including the ventral anterior intestinal portal (AIP), dorsal anterior AIP, and medial/lateral regions of the AL and posterior endoderm [115]. Fluorescence-activated cell sorting (FACS) using antibodies against epithelial markers like EpCAM is commonly used to enrich for endodermal cells [115] [118]. The choice of scRNA-seq platform depends on research goals: plate-based methods (Smart-seq2) offer higher sensitivity for detecting low-abundance transcripts, while droplet-based methods (10x Genomics) provide higher throughput [115].

Single-Cell Multi-Omics Integration

Advanced multi-omics approaches now enable correlated analysis of multiple molecular layers from single cells. Single-cell ChIP-seq methods like CoBATCH have been applied to profile H3K27ac and H3K4me1 states in mouse embryos across developmental stages, revealing epigenetic priming and lineage-specific enhancer usage [17]. The scNMT-seq (single-cell nucleosome, methylation, and transcription sequencing) platform enables simultaneous profiling of chromatin accessibility, DNA methylation, and gene expression from single cells, revealing coordinated epigenetic reprogramming during lineage specification [17]. For data integration, methods like scPoli have been successfully used to integrate nearly one million cells from diverse endoderm-derived organoid samples, enabling robust cross-comparison of cell states across protocols, conditions, and stem cell sources [55].

Lineage Tracing and Trajectory Reconstruction

Genetic lineage tracing combined with scRNA-seq provides powerful approaches for mapping developmental trajectories. The CreER-loxP system with fluorescent protein insertions across multiple mouse models enables specific identification of individual endodermal subpopulations via distinct marker-gene combinations [118]. Computational trajectory inference methods like Wave-Crest, Slingshot, and Monocle3 can reconstruct differentiation pathways from scRNA-seq data, ordering cells along pseudotemporal trajectories based on transcriptional similarity [114]. RNA velocity analysis, which leverages unspliced and spliced mRNA ratios to predict future cell states, provides additional insights into the dynamics of differentiation processes [118].

Diagram 1: Signaling Pathways Governing Endoderm Patterning. This diagram illustrates the key developmental transitions from pluripotent stem cells through definitive endoderm to organ primordia, highlighting signaling pathways and transcription factors that coordinate these processes, alongside sources of heterogeneity.

Table 2: Essential Research Reagents for Single-Cell Endoderm Studies

Reagent/Resource	Function/Application	Examples/Specifications	References
Cell Surface Markers	Identification and isolation of endodermal populations	CXCR4+ (DE), EpCAM+ (epithelial), TRA-1-60- (pluripotency exit)	[119] [114]
Antibodies for FACS	Fluorescence-activated cell sorting	Anti-CXCR4, Anti-EpCAM, Anti-TRA-1-60	[114] [115]
CRISPR/Cas9 Systems	Genetic engineering for lineage tracing and functional validation	T-2A-EGFP knock-in reporters, Cre-loxP systems	[114] [118]
scRNA-seq Platforms	Single-cell transcriptome profiling	10x Genomics (high-throughput), Smart-seq2 (full-length)	[119] [115]
Inducible Cre Systems	Genetic lineage tracing	CreER-T2 with tissue-specific promoters, tdTomato reporters	[118]
Reference Atlases	Data comparison and annotation	Human Endoderm-Derived Organoid Cell Atlas (HEOCA), Mouse Prenatal Atlas	[55] [116]

Technical Protocols for Key Experimental Approaches

Protocol 1: scRNA-seq of Differentiating Endoderm Populations

• Differentiation Setup: Initiate differentiation of pluripotent stem cells toward definitive endoderm using established protocols with WNT3A and Activin A supplementation [114].
• Time Point Collection: Harvest cells at critical time points (days 0, 1, 2, 3) to capture pluripotent, mesendoderm, and definitive endoderm stages.
• Single-Cell Suspension: Dissociate cells to single-cell suspension using enzyme-free dissociation buffer or Accutase to preserve membrane receptors.
• Viability and Concentration Assessment: Assess cell viability (>90%) and adjust concentration to 700-1,200 cells/μL for target cell recovery.
• Library Preparation: Use either droplet-based (10x Genomics) or plate-based (Smart-seq2) protocols per experimental needs.
• Quality Control: Assess library quality using Bioanalyzer/TapeStation before sequencing.
• Sequencing: Target 50,000 reads/cell for droplet-based or 2 million reads/cell for full-length methods.
• Data Processing: Align reads to reference genome (GRCh38/hg38) and generate gene-cell count matrices using Cell Ranger or equivalent.

Protocol 2: Genetic Lineage Tracing of Endodermal Subpopulations

• Mouse Model Selection: Utilize established Cre-driver lines targeting specific endodermal subpopulations (e.g., Sox17-Cre, Foxa2-Cre) [118].
• Reporter Crosses: Cross with appropriate fluorescent reporter strains (e.g., Rosa26-tdTomato, Rosa26-Confetti).
• Tamoxifen Induction: Administer tamoxifen at precise developmental windows (E6.5-E8.5) to activate Cre recombinase.
• Tissue Collection: Harvest embryos at desired stages (E9.5-E18.5) and process for analysis.
• Cell Dissociation: Generate single-cell suspensions from microdissected endodermal tissues.
• FACS Sorting: Isolate fluorescently labeled populations for downstream scRNA-seq or functional assays.
• Data Integration: Combine lineage tracing information with transcriptional profiles to reconstruct fate maps.

Protocol 3: Multi-omics Analysis of Histone Modifications

• Cell Nuclei Isolation: Extract nuclei from embryonic tissues or differentiated cells using Dounce homogenization in lysis buffer.
• Chromatin Fragmentation: Perform MNase digestion to generate mononucleosomes.
• Antibody Incubation: Incubate with barcoded antibodies against specific histone modifications (H3K27ac, H3K4me1).
• Library Preparation: Use single-cell CoBATCH protocol to generate sequencing libraries.
• Sequencing: Perform shallow sequencing to assess library complexity before deep sequencing.
• Peak Calling: Identify enrichment regions compared to input controls.
• Data Integration: Correlate histone modification patterns with scRNA-seq data from parallel samples.

Diagram 2: Experimental Workflow for Single-Cell Endoderm Analysis. This diagram outlines the integrated experimental and computational pipeline for comprehensive single-cell analysis of endoderm populations, highlighting the multi-modal approaches and iterative nature of experimental design and validation.

Future Directions and Concluding Remarks

The application of single-cell omics technologies to endoderm biology has fundamentally transformed our understanding of definitive endoderm specification and patterning. These approaches have revealed unexpected heterogeneity in what were previously considered homogeneous populations, identified novel regulatory factors and pathways, and provided unprecedented insights into the complex signaling networks coordinating endoderm-mesoderm interactions during organogenesis. The creation of comprehensive reference atlases, such as the integrated transcriptomic cell atlas of human endoderm-derived organoids encompassing nearly one million cells [55] and the mouse prenatal development atlas profiling 12.4 million nuclei [116], provides essential resources for the research community to benchmark in vitro models against in vivo development and identify missing or aberrant cell states.

Looking forward, several emerging technologies promise to further advance the field. Spatial transcriptomics approaches will enable precise mapping of cell states within their native tissue context, bridging the gap between scRNA-seq and traditional histology. Improved multi-omics technologies allowing simultaneous measurement of transcriptome, epigenome, and proteome from the same single cells will provide more direct correlation between regulatory elements and gene expression. CRISPR-based screening approaches combined with single-cell readouts will enable high-throughput functional validation of candidate regulators in diverse genetic backgrounds. Finally, computational methods for data integration and trajectory inference continue to evolve, offering more accurate reconstruction of developmental pathways from static snapshots.

For researchers studying endoderm development and differentiation, single-cell omics technologies now provide an indispensable toolkit for resolving cellular heterogeneity, deciphering molecular mechanisms, and validating novel regulators. By applying these approaches within the framework of the experimental protocols and resources outlined in this technical guide, scientists can overcome longstanding challenges in endoderm biology and accelerate progress toward applications in disease modeling, drug development, and regenerative medicine.

The study of human development, particularly during the critical stages of gastrulation and definitive endoderm specification, has long been constrained by ethical considerations and limited access to embryonic tissues. The emergence of sophisticated in vitro model systems represents a transformative approach for investigating these fundamental processes. These systems, including gastruloids, organoids, and embryoid bodies, leverage the self-organizing capacity of pluripotent stem cells to recapitulate aspects of embryonic development 'in a dish' [120] [121]. Within the broader context of gastrulation research, understanding the specification of the definitive endoderm—the embryonic germ layer that gives rise to the respiratory and digestive tracts, liver, pancreas, and thyroid—is paramount, as errors in this process can have profound developmental consequences [118] [122]. The utility of these models for both basic science and drug development hinges entirely on a critical, unresolved question: How faithfully do these engineered systems replicate the complex cellular and molecular events of in vivo embryonic development? This whitepaper provides a technical guide to the current methodologies and benchmarks for validating these models, with a specific focus on definitive endoderm specification.

Benchmarking Criteria for Model Fidelity

To holistically evaluate the faithfulness of an in vitro model, assessments must extend beyond a handful of marker genes to encompass multiple facets of development. Based on single-cell genomic studies, the field has converged on three primary criteria for benchmarking [120].

• Cell-type Composition: An ideal model should contain all the specific cell types found in the native embryo at a comparable stage. This includes not only the primary functional progenitors (e.g., hepatoblasts for liver) but also supportive cells such as nerves, blood vessels, and immune cells. The gold standard for this assessment is single-cell RNA sequencing (scRNA-seq), which allows for an unbiased comparison of the transcriptomes of in vitro-derived cells to reference cell atlases built from in vivo tissues [120] [118].
• Spatial Organization and Morphology: The model must recapitulate the higher-order structures and spatial patterns of the developing embryo. For example, a definitive endoderm model should demonstrate proper epithelial organization and proximity to relevant signaling centers. Technologies such as high-content immunofluorescence (IF) and spatial transcriptomics are critical for verifying that the spatial relationships between cell types mirror those found in vivo [120].
• Functional Capacity: Ultimately, the cells within the model must perform the specialized functions of their in vivo counterparts. This can include nutrient absorption in gut organoids, metabolic activity in hepatocytes, or the ability to respond to morphogenetic cues in a developmentally appropriate manner. Functional assays are often specific to the cell type being modeled [120].

Signaling Pathways in Definitive Endoderm Specification

The directed differentiation of human pluripotent stem cells (hPSCs) into definitive endoderm provides a powerful, controlled system for modeling this process in vitro. Recent studies have delineated the core signaling pathways required and revealed new layers of regulation.

Core Morphogen Signaling

Efficient differentiation of hPSCs into definitive endoderm relies on the precise modulation of key developmental signaling pathways. Research has established that simultaneous activation of BMP and WNT signaling, using ligands like BMP4 and small molecule agonists such as CHIR99021, can rapidly and efficiently induce an extraembryonic mesoderm-like state from naive hESCs within four days [45]. This population subsequently progresses through a primitive streak-like intermediate (PSLI), a critical developmental stage, on its way to forming definitive endoderm. The role of Nodal signaling, a member of the TGF-β superfamily, is also fundamental in this process, working in concert with WNT to promote the fate transition [45].

Mechanical Regulation via the Hippo Pathway

Beyond biochemical signals, physical cellular properties are now recognized as active regulators of cell fate. During definitive endoderm differentiation, a gradual reduction in cell size is observed. Experimentally accelerating this size reduction through the application of hypertonic pressure significantly enhances endoderm differentiation [54]. The mechanosensitive actomyosin cytoskeleton mediates this effect. Cell size diminution promotes the nuclear translocation of Angiomotin (AMOT), which in turn sequesters and inactivates the transcriptional coactivator Yes-associated protein (YAP) [54]. Since YAP activity is known to oppose endodermal fate, its suppression through this mechanical signaling axis is a pivotal step in lineage specification.

The following diagram illustrates the integration of these signaling and mechanical pathways in definitive endoderm specification.

Experimental Workflow for Benchmarking an Endoderm Model

A robust protocol for generating and validating a definitive endoderm model from hPSCs involves a series of critical steps, from directed differentiation to multi-faceted validation. The workflow below outlines this process, integrating the key signaling pathways and benchmarking technologies.

Detailed Methodologies for Key Experiments

Directed Differentiation of hPSCs to Definitive Endoderm

• Starting Material: Naive or primed human pluripotent stem cells (hPSCs) are maintained on Matrigel-coated dishes in defined media [45] [54].
• Induction Protocol: Cells are treated for 4-5 days with a combination of BMP4 (10-50 ng/mL) and the GSK3 inhibitor CHIR99021 (3-6 µM) in a base medium such as N2B27 supplemented with FGF4 and heparin. Modulation of Nodal signaling is also incorporated [45].
• Mechanical Manipulation (Optional): To enhance differentiation efficiency, hypertonic pressure can be applied by adding osmolytes like sucrose (50-100 mM) to the culture medium to reduce cell size and modulate the AMOT/YAP mechanical axis [54].
• Expected Outcome: Within 4-5 days, ~90% of cells should transition from compact colonies to a mesenchymal morphology and express definitive endoderm markers like SOX17 and FOXA2, while pluripotency markers (OCT4, NANOG) are downregulated [45].

Single-Cell RNA Sequencing for Benchmarking

• Cell Preparation: Differentiated cells are dissociated into a single-cell suspension. Viability should be >80% [120] [118].
• Library Preparation & Sequencing: Cells are loaded onto a platform such as the 10x Genomics Chromium to generate barcoded single-cell libraries. Sequencing is performed to a recommended depth of 50,000 reads per cell [118].
• Data Analysis: Sequencing data is processed through an analytical pipeline (e.g., Cell Ranger) and analyzed with tools like Seurat or Scanpy. Cells are clustered, and cell types are annotated by comparing their transcriptomes to a reference in vivo cell atlas (e.g., from mouse or human embryos) using canonical markers [120] [118]. Key markers for definitive endoderm include SOX17, FOXA2, and CXCR4.

Genetic Lineage Tracing

• Purpose: To clonally track the descendants of a single progenitor cell in vivo, demonstrating bipotency and lineage relationships [122].
• In Vivo Model: A tamoxifen-inducible, DE-specific Cre recombinase transgene (e.g., Foxa2^(mcm)) is combined with a Cre-dependent reporter (e.g., Rosa26^(lacZ)) in mice [122].
• Induction: A low dose of tamoxifen (e.g., 3 mg/kg) is administered at E7.75 to stochastically induce heritable lacZ expression in a single definitive endoderm cell per embryo [122].
• Analysis: Embryos are harvested at a later stage (e.g., E16.5), and tissues are stained with X-gal. The distribution of lacZ-positive clones across organs (e.g., liver, pancreas) is mapped, revealing the developmental potential of the original progenitor [122].

Quantitative Benchmarking Data

The following tables summarize key quantitative data for assessing the fidelity of in vitro models, drawing from recent studies on definitive endoderm and endodermal organ specification.

Table 1: Key Markers for Identifying Cell States in Endoderm Specification

Cell State / Lineage	Key Molecular Markers	Associated Function/Role
Pluripotent Stem Cell	POU5F1 (OCT4), NANOG, SOX2 [120]	Self-renewal and pluripotency
Primitive Streak-like Intermediate	T (Brachyury), MIXL1 [45]	Mesendodermal progenitor state
Definitive Endoderm	SOX17, FOXA2, CXCR4 [118] [122]	Gut tube and organ progenitor
Extraembryonic Mesoderm	HAND1, GATA4, GATA6, KDR (FLK1) [45]	Supportive tissue for the conceptus
Hepatoblast	AFP, ALB, PDX1 (early) [122]	Bipotent liver progenitor
Mature Hepatocyte	ALB, HNF4A, TF [118] [122]	Liver parenchymal function
Cholangiocyte	KRT19, SOX9, AQP1 [122]	Biliary epithelial cell

Table 2: Summary of Key In Vitro and In Vivo Experimental Findings

Study Focus	Model System	Key Quantitative Finding	Implication
Extraembryonic Mesoderm Specification [45]	Naive hESCs with BMP4/CHIR	~90% differentiation efficiency into ExM-like cells in 4-5 days	Rapid, efficient model for early lineage specification.
Cell Size & Endoderm Differentiation [54]	hPSCs directed to DE	Hypertonic pressure (cell size ↓) significantly enhanced DE differentiation.	Mechanical state is a critical regulator of cell fate.
Single-Cell Fate Mapping of Hepatoblasts [122]	Mouse model (Foxa2^(mcm); R26^(lacZ))	Single E8.5 hepatoblast contributed to both hepatocytes and cholangiocytes in E16.5 liver.	Confirmed bipotency of individual hepatoblasts in vivo.
Endodermal Organ Lineage [118]	Mouse genetic lineage tracing	Identified novel lineage relationships and widespread fate convergence/divergence in endodermal organs.	Provides a high-resolution map for benchmarking organoid models.

The Scientist's Toolkit: Essential Research Reagents

This table catalogs critical reagents and their applications for studying definitive endoderm specification, as cited in the literature.

Table 3: Key Research Reagent Solutions

Reagent / Tool	Function / Application	Example Use in Context
CHIR99021	Small molecule GSK3 inhibitor; activates WNT signaling.	Used with BMP4 to induce rapid differentiation of hESCs through a primitive streak-like state [45].
BMP4	Recombinant protein; bone morphogenetic protein ligand.	Synergizes with WNT activation to specify extraembryonic mesoderm and endodermal fates [45].
Foxa2^(mcm) Mouse Line	Tamoxifen-inducible Cre driver specific to definitive endoderm.	Enables precise genetic lineage tracing of DE-derived organs at single-cell resolution [122].
Rosa26^(lacZ) Reporter	Ubiquitous Cre-responsive lacZ reporter allele.	Provides a heritable, chromogenic label for tracking clonal descendants in fate-mapping studies [122].
Osmolytes (e.g., Sucrose)	Induces hypertonic pressure, reducing cell volume.	Used to experimentally probe the link between cell size diminution and enhanced endoderm differentiation [54].
10x Genomics Single-Cell Platform	High-throughput scRNA-seq for transcriptomic profiling.	Generates cell atlases for benchmarking the cellular composition of in vitro models against in vivo references [120] [118].
Actomyosin Inhibitors (e.g., Blebbistatin)	Inhibits myosin II activity, disrupting the actin cytoskeleton.	Used to functionally test the role of actomyosin contractility in mediating the effects of cell size on fate [54].

The relentless advancement of in vitro models, from embryoid bodies to complex gastruloids, offers unprecedented opportunities to deconstruct the mechanisms of human development and disease. As this whitepaper has detailed, the scientific community has concurrently developed a rigorous toolkit for benchmarking—leveraging single-cell genomics, spatial transcriptomics, and sophisticated lineage tracing—to quantify the fidelity of these models against the in vivo gold standard. Within the specific context of definitive endoderm specification, it is clear that faithfulness is not only determined by the correct cocktail of biochemical signals but also by the physical and mechanical properties of the cells themselves. For researchers and drug development professionals, the consistent application of these multi-faceted benchmarking criteria is essential. It ensures that the insights gained from in vitro systems are biologically relevant, thereby accelerating the translation of developmental biology into therapeutic breakthroughs for endoderm-derived organs.

Conclusion

The integration of developmental biology principles with advanced engineering approaches has revolutionized our understanding and capability to manipulate definitive endoderm specification. Key takeaways include the refined understanding of endoderm formation as a process distinct from classical EMT, the critical importance of signaling gradient precision in differentiation protocols, the emerging role of mechanical cues and cell size in fate determination, and the necessity of robust validation frameworks to distinguish between endodermal subtypes. Future directions should focus on leveraging single-cell technologies to decode residual heterogeneity in differentiated populations, developing more sophisticated in vitro models that capture spatiotemporal patterning, and translating these advances into clinically relevant cell populations for regenerative therapies targeting liver, pancreatic, and respiratory diseases. The continued convergence of developmental biology, stem cell science, and bioengineering promises to accelerate the development of functional endodermal tissues for both therapeutic applications and disease modeling.

References

• 1. Endoderm specification - StemBook - NCBI Bookshelf [https://www.ncbi.nlm.nih.gov/books/NBK27052/]
• 2. Efficient Generation of Induced Pluripotent Stem Cell ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC12153844/]
• 3. Epithelial cell plasticity drives endoderm formation during ... [https://www.nature.com/articles/s41556-021-00694-x]
• 4. Lineage contribution of the mesendoderm progenitors in ... [https://www.sciencedirect.com/science/article/abs/pii/S1534580725001200]
• 5. MIXL1 activation in endoderm differentiation of human ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC12143138/]
• 6. Pluripotency factors regulate definitive endoderm ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC3034899/]
• 7. Segregation of endoderm and mesoderm germ layer ... [https://www.nature.com/articles/s41467-025-63287-4]
• 8. Differentiation of Human Pluripotent Stem Cells Into ... [https://www.frontiersin.org/journals/cell-and-developmental-biology/articles/10.3389/fcell.2021.726499/full]
• 9. Protocol for differentiation of human pluripotent stem cells into ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC12205342/]
• 10. TGF-β Family Signaling in Embryonic and Somatic Stem-Cell ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC5495062/]
• 11. Frontiers | The Role of SMAD2/3 in Human Embryonic Stem Cells [https://www.frontiersin.org/journals/cell-and-developmental-biology/articles/10.3389/fcell.2020.00653/full]
• 12. Nodal signaling pathway [https://en.wikipedia.org/wiki/Nodal_signaling_pathway]
• 13. and Wnt -beta TGF are required for the signaling of an in... induction [https://pubmed.ncbi.nlm.nih.gov/17077151/]
• 14. Talk:Developmental Signals - TGF -beta - Embryology [https://embryology.med.unsw.edu.au/embryology/index.php?title=Talk:Developmental_Signals_-_TGF-beta]
• 15. Enhancer remodeling by OTX2 directs specification and ... [https://pubmed.ncbi.nlm.nih.gov/40834858/]
• 16. TGF-β modulates cell fate in human ES cell-derived foregut ... [https://www.sciencedirect.com/science/article/pii/S2213671124001528]
• 17. Single-cell multi-omics delineates the dynamics of distinct ... [https://bmcgenomics.biomedcentral.com/articles/10.1186/s12864-025-11619-5]
• 18. Combinatorial BMP4 and activin direct the choice between ... [https://www.sciencedirect.com/science/article/pii/S1534580725005295]
• 19. Epithelial cell plasticity drives endoderm formation during ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC8277579/]
• 20. Foxa2 regulates polarity and epithelialization in the ... [https://pubmed.ncbi.nlm.nih.gov/19234065/]
• 21. Embryology, Gastrulation - StatPearls - NCBI Bookshelf - NIH [https://www.ncbi.nlm.nih.gov/books/NBK554394/]
• 22. FOXA2 suppresses endometrial carcinogenesis and ... [https://www.jci.org/articles/view/157574]
• 23. Mesoderm - an overview | ScienceDirect Topics [https://www.sciencedirect.com/topics/neuroscience/mesoderm]
• 24. Pluripotency factors regulate definitive endoderm specification ... [https://genesdev.cshlp.org/content/early/2011/01/07/gad.607311]
• 25. Uncovering the mesendoderm gene regulatory network ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC8917868/]
• 26. PHD2 safeguards modest mesendoderm development [https://www.nature.com/articles/s42003-024-06824-z]
• 27. Mesoderm induction and patterning - PubMed Central - NIH [https://pmc.ncbi.nlm.nih.gov/articles/PMC9130346/]
• 28. Wells Lab Molecular Mechanisms that Establish Organ ... [https://www.cincinnatichildrens.org/research/divisions/d/dev-biology/labs/wells/embryonic-development-of-endoderm-and-its-organs/molecular-mechanisms-establishing-organ-domains-on-anterior-posterior-axis]
• 29. Changes in cellular composition shape the inductive ... [https://www.nature.com/articles/s41467-025-63154-2]
• 30. Basement membrane perforations guide anterior–posterior ... [https://www.nature.com/articles/s41467-025-61441-6]
• 31. A Molecular Signature for Purified Definitive Endoderm ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC3411363/]
• 32. Stepwise differentiation of human embryonic stem cells into ... [https://www.sciencedirect.com/science/article/pii/S1873506111001668]
• 33. Conserved regulatory state expression controlled by ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC6307887/]
• 34. Evolutionary conservation of early mesoderm specification ... [https://www.nature.com/articles/ncomms3821]
• 35. Epithelial cell plasticity drives endoderm formation during gastrulation [https://www.nature.com/articles/s41556-021-00694-x?error=cookies_not_supported&code=f7939ea4-58ab-45cf-9ec4-fb4d09e5df7a]
• 36. A gene regulatory network controlling the embryonic ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC3976212/]
• 37. Functional analysis of the evolutionarily conserved cis- ... [https://www.sciencedirect.com/science/article/pii/S0012160608013523]
• 38. Cell size regulates human endoderm specification through ... [https://www.sciencedirect.com/science/article/pii/S221367112400208X]
• 39. STEMdiffâ„¢ Definitive Endoderm Differentiation Kit [https://www.stemcell.com/products/stemdiff-definitive-endoderm-kit.html]
• 40. Activin A and Wnt-dependent specification of human ... [https://pubmed.ncbi.nlm.nih.gov/23954819/]
• 41. Activin A and Wnt-dependent specification of human ... [https://www.sciencedirect.com/science/article/abs/pii/S0014482713002966]
• 42. Comparable Generation of Activin-Induced Definitive ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC4110751/]
• 43. The Expression of Wnt5a Gene Throughout Definitive ... [https://brieflands.com/articles/gct-110381]
• 44. Differentiation of induced pluripotent stem cells into ... [https://www.sciencedirect.com/science/article/abs/pii/S0168165620303011]
• 45. Deciphering signaling mechanisms and developmental ... [https://www.nature.com/articles/s41467-025-59491-x]
• 46. Modulation of WNT, Activin/Nodal, and MAPK Signaling ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC10346406/]
• 47. High-throughput screening approaches and combinatorial ... [https://www.sciencedirect.com/science/article/abs/pii/S1742706115301033]
• 48. High content screening in microfluidic devices - PMC [https://pmc.ncbi.nlm.nih.gov/articles/PMC3156449/]
• 49. Automated microfluidic platform for dynamic and ... [https://www.nature.com/articles/s41467-020-19058-4]
• 50. Quantitative imaging of collective cell migration during ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC2854020/]
• 51. Modeling endodermal organ development and diseases ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC7683020/]
• 52. 3D multicellular systems in disease modelling [https://www.frontiersin.org/journals/cell-and-developmental-biology/articles/10.3389/fcell.2023.1083175/full]
• 53. Charting human development using a multi-endodermal ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC8208823/]
• 54. Cell size regulates human endoderm specification through ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC11368700/]
• 55. An integrated transcriptomic cell atlas of human endoderm- ... [https://www.nature.com/articles/s41588-025-02182-6]
• 56. Integrated human endoderm-derived organoids cell atlas ... [https://data.humancellatlas.org/hca-bio-networks/organoid/atlases/organoid-endoderm-v1-0]
• 57. Review Engineering the 3D structure of organoids [https://www.sciencedirect.com/science/article/pii/S2213671124003230]
• 58. Mechanical forces are key to embryonic self-organization [https://www.rockefeller.edu/news/38639-mechanical-forces-are-key-to-embryonic-self-organization/]
• 59. Mechanical regulation of mesenchymal stem cell differentiation [https://pmc.ncbi.nlm.nih.gov/articles/PMC4694119/]
• 60. Analysis of Regulatory Network Involved in Mechanical ... [https://journals.plos.org/plosone/article?id=10.1371/journal.pone.0035700]
• 61. Highly dynamic mechanical transitions in embryonic cell ... [https://www.nature.com/articles/s41467-025-61702-4]
• 62. MIXL1 activation in endoderm differentiation of human ... [https://www.sciencedirect.com/science/article/pii/S2213671125000864]
• 63. SignalingProfiler 2.0 a network-based approach to bridge ... [https://www.nature.com/articles/s41540-024-00417-6]
• 64. Molecular characterization of a toxicological tipping point ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC9728154/]
• 65. Epigenetic and transcriptional regulations prime cell fate ... [https://www.nature.com/articles/s41467-023-36116-9]
• 66. Sox17 is essential for the specification of cardiac ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC1820674/]
• 67. Late stage definitive endodermal differentiation can be ... [https://bmcdevbiol.biomedcentral.com/articles/10.1186/s12861-016-0120-2]
• 68. New markers for tracking endoderm induction and ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC4689216/]
• 69. Study uncovers role of mechanical forces in human ... [https://www.news-medical.net/news/20251122/Study-uncovers-role-of-mechanical-forces-in-human-gastrulation.aspx]
• 70. Wnt signaling pathways in biology and disease: mechanisms ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC11968978/]
• 71. TGF-β regulates β-catenin signaling and osteoblast ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC3079785/]
• 72. Activation of canonical Wnt signalling is required for TGF-β ... [https://www.nature.com/articles/ncomms1734]
• 73. TGF-β signaling in health, disease and therapeutics [https://www.nature.com/articles/s41392-024-01764-w]
• 74. TGF-β Signaling - PMC - PubMed Central - NIH [https://pmc.ncbi.nlm.nih.gov/articles/PMC7175140/]
• 75. Wnt/β-catenin signalling: function, biological mechanisms ... [https://www.nature.com/articles/s41392-021-00762-6]
• 76. The endoderm: a divergent cell lineage with many ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC6589075/]
• 77. Early Endodermal Lineage Markers Research Areas [https://www.rndsystems.com/research-area/early-endodermal-lineage-markers]
• 78. Definitive endoderm derived from human embryonic stem ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC2852556/]
• 79. Endodermal differentiation of human pluripotent stem cells ... [https://www.nature.com/articles/srep04488]
• 80. Differentiation of Definitive Endoderm from Human Induced ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC4717462/]
• 81. Chemically defined and growth factor-free system for highly ... [https://www.sciencedirect.com/science/article/pii/S2213671124003266]
• 82. Small molecules efficiently direct endodermal ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC4564293/]
• 83. A multiscale model of early cell lineage specification ... [https://www.nature.com/articles/s41540-017-0017-0]
• 84. Mechanical tension promotes formation of gastrulation-like ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC7755684/]
• 85. Myosin motor isoforms direct specification of actomyosin ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC4414888/]
• 86. Regionalized regulation of actomyosin organization ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC11741281/]
• 87. Microtubule architecture connects AMOT stability to YAP ... [https://www.nature.com/articles/s41556-025-01773-z]
• 88. Regulation of localization and function of the transcriptional ... [https://elifesciences.org/articles/23966]
• 89. Angiomotin is a novel Hippo pathway component that inhibits ... [https://genesdev.cshlp.org/content/25/1/51]
• 90. Microtubule architecture connects AMOT stability to YAP ... [https://pubmed.ncbi.nlm.nih.gov/41034521/]
• 91. YAP activation is robust to dilution - PMC [https://pmc.ncbi.nlm.nih.gov/articles/PMC11403994/]
• 92. Efficient Generation of Induced Pluripotent Stem Cell- ... [https://www.mdpi.com/2073-4409/14/11/815]
• 93. GRP94 is indispensable for definitive endoderm ... [https://pubmed.ncbi.nlm.nih.gov/40254879/]
• 94. Effects of PDMS culture on stem cell differentiation towards ... [https://www.sciencedirect.com/science/article/abs/pii/S1742706125003423]
• 95. How to optimize your cell culture media for cultivated meat [https://brightgreenpartners.com/blog-insights/cell-culture-media/]
• 96. Serum-Free Media Formulation Using Marine Microalgae ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC11432547/]
• 97. Open-access formulations for cell culture media | Solution [https://gfi.org/solutions/open-access-formulation-for-cell-culture-media/]
• 98. Organoid culture media formulated with growth factors of ... [https://www.nature.com/articles/s41598-019-42604-0]
• 99. A novel proliferation synergy factor cocktail maintains ... [https://www.frontiersin.org/articles/10.3389/fcell.2025.1680263/full]
• 100. Endoderm Complexity in the Mouse Gastrula Is Revealed ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC4048981/]
• 101. Identification of region-specific genes in the early chicken ... [https://pubmed.ncbi.nlm.nih.gov/21081180/]
• 102. A systematic screen for genes expressed in definitive ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC1950885/]
• 103. Stem cell-derived pancreatic beta cells - PubMed Central - NIH [https://pmc.ncbi.nlm.nih.gov/articles/PMC12265369/]
• 104. Endoderm - Developmental Biology - NCBI Bookshelf - NIH [https://www.ncbi.nlm.nih.gov/books/NBK10107/]
• 105. Regulation of Extra-Embryonic Endoderm Stem Cell ... - PubMed [https://pubmed.ncbi.nlm.nih.gov/21862554/]
• 106. Transcriptional network governing extraembryonic ... [https://www.sciencedirect.com/science/article/pii/S0012160623001288]
• 107. Extraembryonic gut endoderm cells undergo programmed ... [https://www.nature.com/articles/s41556-024-01431-w]
• 108. The building blocks of embryo models: embryonic and ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC12012135/]
• 109. A comprehensive human embryo reference tool using ... [https://www.nature.com/articles/s41592-024-02493-2]
• 110. Endoderm-specific gene expression in embryonic stem ... [https://pubmed.ncbi.nlm.nih.gov/8940246/]
• 111. Dissecting embryonic and extraembryonic lineage ... [https://www.sciencedirect.com/science/article/pii/S0092867423012254]
• 112. Eomes function is conserved between zebrafish and mouse ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC9483813/]
• 113. Single-cell RNA sequencing reveals metallothionein ... [https://www.sciencedirect.com/science/article/pii/S1873506118300217]
• 114. Single-cell RNA-seq reveals novel regulators of human ... [https://genomebiology.biomedcentral.com/articles/10.1186/s13059-016-1033-x]
• 115. Single-cell patterning and axis characterization in the ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC8027174/]
• 116. A single-cell time-lapse of mouse prenatal development ... [https://www.nature.com/articles/s41586-024-07069-w]
• 117. Single cell transcriptomics identifies a signaling network ... [https://www.nature.com/articles/s41467-020-17968-x]
• 118. Article Spatiotemporal and genetic cell lineage tracing of ... [https://www.sciencedirect.com/science/article/abs/pii/S0092867424014259]
• 119. Single-cell RNA-sequencing of differentiating iPS ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC7010688/]
• 120. Approaches to benchmark and characterize in vitro human ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC10906492/]
• 121. Engineering the Embryoid Body Microenvironment to ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC2693014/]
• 122. Single-cell murine genetic fate mapping reveals bipotential ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC6198474/]
